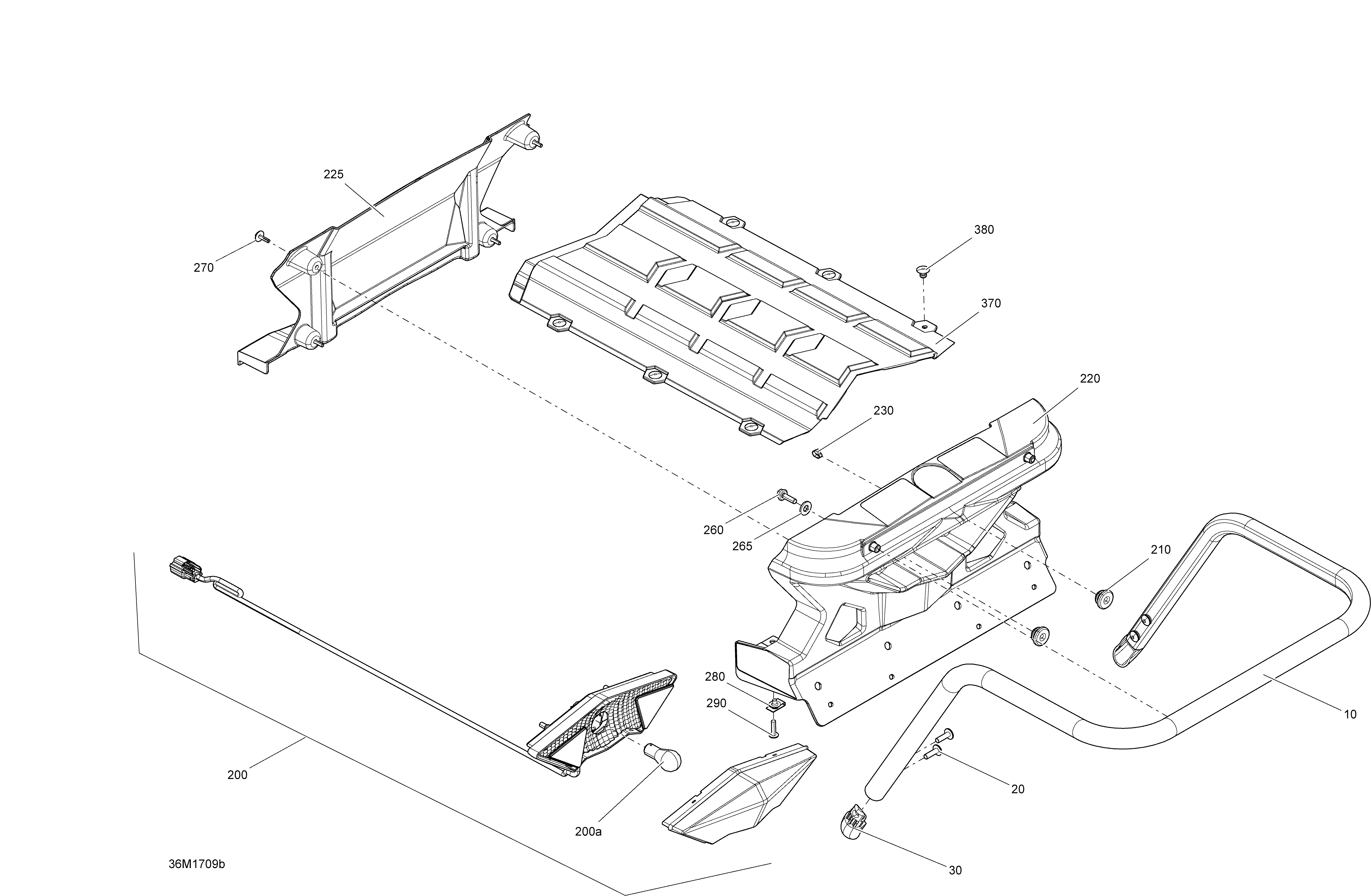

09- Luggage Rack - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - LT-SPORT - 2017

  • №
    Артикул
    Название
  • 10
    511000705 Luggage Rack. Package Sport
    Luggage Rack. Package Sport
  • 10
    511000706 Luggage Rack. Package LT
    Luggage Rack. Package LT
  • 20
    250000786 Torx Screw M6 X 20, Scotch Grip
    Torx Screw M6 X 20, Scotch Grip
  • 30
    520000899 Black Cap
    Black Cap
  • 200>200a
    520001559 Rear Light
    Rear Light
  • 200a
    520000758 Bulb
    Bulb
  • 210
    705003666 Rubber Grommet
    Rubber Grommet
  • 220
    511000625 Rear Light Support
    Rear Light Support
  • 225
    511000701 Rear Cover Support
    Rear Cover Support
  • 230
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 250
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 260
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 265
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 270
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 280
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 290
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
