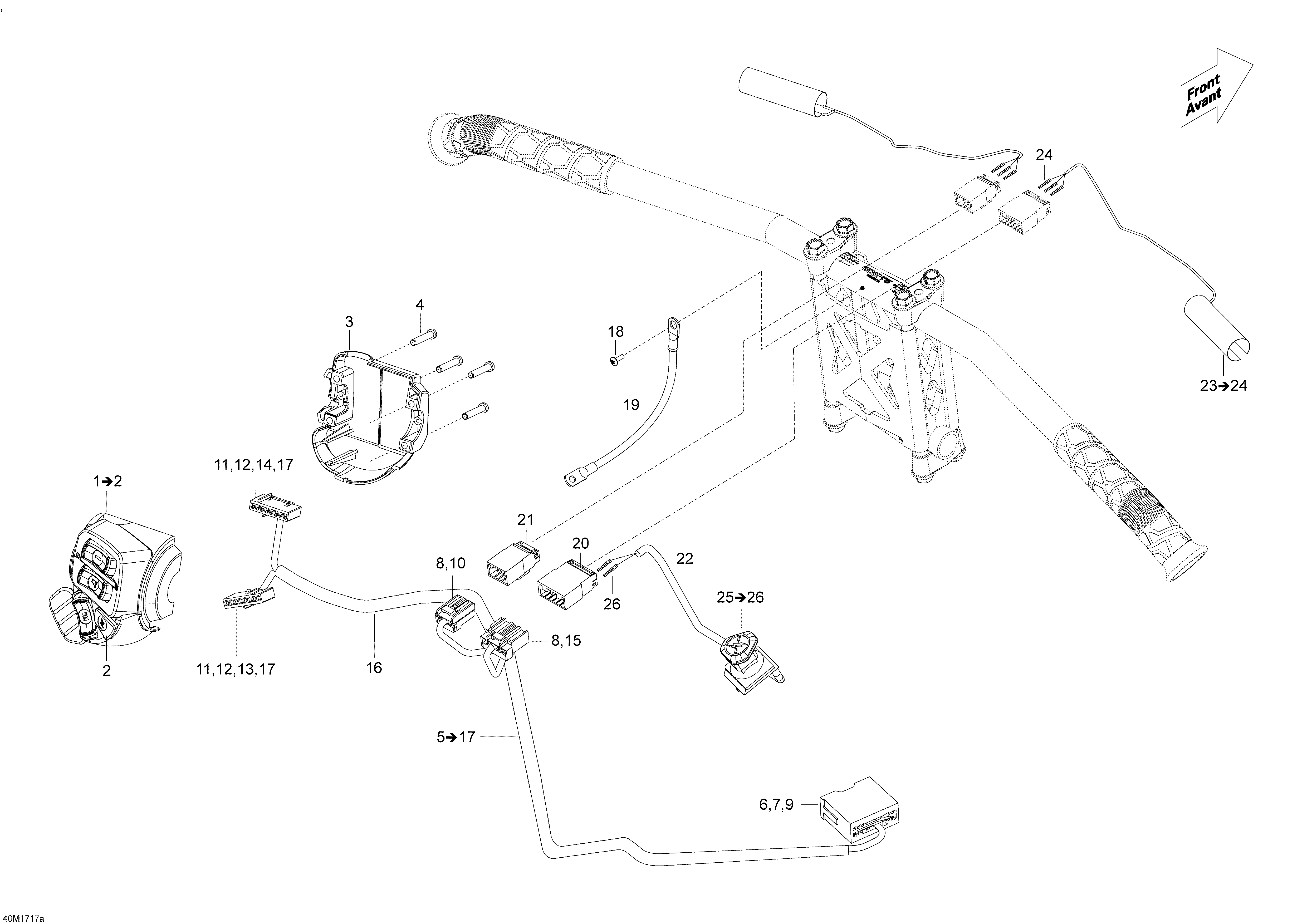

10- Steering Wiring Harness - 550F для BRP Ski-Doo SKANDIC - 2-STROKE - WT-SWT - 2017

  • №
    Артикул
    Название
  • 1
    515177028 Switch Housing. Includes 1 To 2
    Switch Housing. Includes 1 To 2
  • 3
    515175926 Housing Switch Plate
    Housing Switch Plate
  • 4
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 5
    515176995 Steering Wiring Harness Ass'y. Includes 5 To 17
    Steering Wiring Harness Ass'y. Includes 5 To 17
  • 6
    515175232 Male Terminal
    Male Terminal
  • 7
    515175273 Male Terminal
    Male Terminal
  • 8
    515175231 Female Terminal
    Female Terminal
  • 9
    515175352 Male Terminal Housing, 13 Circuits
    Male Terminal Housing, 13 Circuits
  • 10
    515175543 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 11
    515175808 Female Terminal
    Female Terminal
  • 12
    515175809 Femelle Lock, 8 Circuits
    Femelle Lock, 8 Circuits
  • 13
    515175807 Female Terminal Housing 8 Circuits Black
    Female Terminal Housing 8 Circuits Black
  • 14
    515175810 Female Terminal Housing, 8 Circuits
    Female Terminal Housing, 8 Circuits
  • 15
    515175819 Female Terminal Housing, 8 Circuits
    Female Terminal Housing, 8 Circuits
  • 16
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 17
    515175941 Female Terminal
    Female Terminal
  • 18
    250000690 Pan Screw Forming, 7500C
    Pan Screw Forming, 7500C
  • 19
    515177668 Ground Cable
    Ground Cable
  • 20
    515175817 Male Terminal Housing, 8 Circuits
    Male Terminal Housing, 8 Circuits
  • 21
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 22
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 23
    506152467 Heating Element. Includes 23 To 24
    Heating Element. Includes 23 To 24
  • 24
    515175232 Male Terminal
    Male Terminal
  • 25
    515177362 Kill Switch. Includes 25 To 26
    Kill Switch. Includes 25 To 26
  • 26
    515175232 Male Terminal
    Male Terminal
