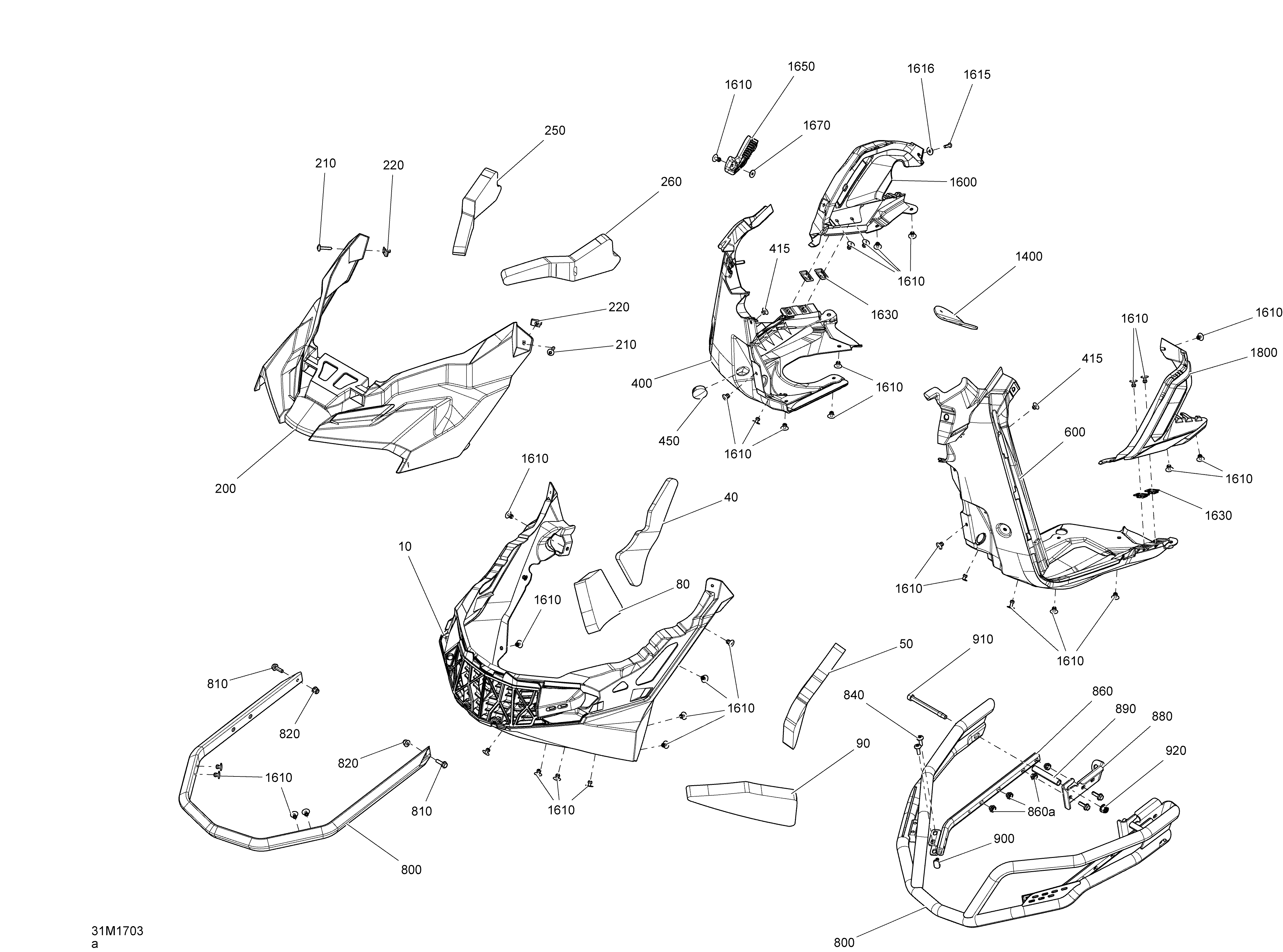

09- Bottom Pan - All Models для BRP Ski-Doo RENEGADE - 4-STROKE - 2017
-
№АртикулНазвание
-
10502007172 Deep Black Front Bottom PanDeep Black Front Bottom Pan
-
10502007654 Orange Front Bottom PanOrange Front Bottom Pan
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007243 RH Bottom Pan Upper Foam. Engine 600 ACERH Bottom Pan Upper Foam. Engine 600 ACE
-
50502007244 LH Bottom Pan Upper Foam. Engine 600 ACELH Bottom Pan Upper Foam. Engine 600 ACE
-
80502007245 RH Bottom Pan Lower Foam. Engine 600 ACERH Bottom Pan Lower Foam. Engine 600 ACE
-
90502007246 LH Bottom Pan Lower Foam. Engine 600 ACELH Bottom Pan Lower Foam. Engine 600 ACE
-
200502007173 Deep Black Bottom Pan Cap. Model Black Except Package EnduroDeep Black Bottom Pan Cap. Model Black Except Package Enduro
-
200502007481 Deep Black Bottom Pan Cap. Package EnduroDeep Black Bottom Pan Cap. Package Enduro
-
200502007518 White Bottom Pan CapWhite Bottom Pan Cap
-
200502007656 Orange Bottom Pan CapOrange Bottom Pan Cap
-
210250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
220250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
250502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
260502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
400502007340 Deep Black RH Bottom PanDeep Black RH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
415293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
450414916600 Nylon CapNylon Cap
-
600502007175 Deep Black LH Bottom PanDeep Black LH Bottom Pan
-
610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
615293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
800502007281 Black Front Bumper. Except EnduroBlack Front Bumper. Except Enduro
-
800502007490 Black Front Bumper. Package EnduroBlack Front Bumper. Package Enduro
-
810207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
815207662044 Hex. Flanged Screw M6 X 20. Package EnduroHex. Flanged Screw M6 X 20. Package Enduro
-
820233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
840250000721 Torx Screw. Package EnduroTorx Screw. Package Enduro
-
860>860a502007493 Tube. Package EnduroTube. Package Enduro
-
860a293450232 InsertInsert
-
870502007496 LH Plate. Package EnduroLH Plate. Package Enduro
-
880502007497 RH Plate. Package EnduroRH Plate. Package Enduro
-
890502007498 Pipe. Package EnduroPipe. Package Enduro
-
900502007499 Cap. Package EnduroCap. Package Enduro
-
910250000833 Socket Screw M8 X 1.25. Package EnduroSocket Screw M8 X 1.25. Package Enduro
-
920233281464 Elastic Flange Nut M8. Package EnduroElastic Flange Nut M8. Package Enduro
-
1400502006935 Snow DeflectorSnow Deflector
-
1600502007297 Deep Black RH Side Bottom Pan Panel. Model Black Except Package BackCountryDeep Black RH Side Bottom Pan Panel. Model Black Except Package BackCountry
-
1600502007306 Deep Black RH Side Bottom Pan Panel. Package BackCountryDeep Black RH Side Bottom Pan Panel. Package BackCountry
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1615250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
1616250200025 Washer M5Washer M5
-
1620293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1630517305109 Rivet PlateRivet Plate
-
1650517305280 Stopper BumperStopper Bumper
-
1660293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1670517124300 WasherWasher
-
1800502007298 Deep Black LH Side Bottom Pan Panel. Model Black Except Package BackCountryDeep Black LH Side Bottom Pan Panel. Model Black Except Package BackCountry
-
1800502007304 Deep Black LH Side Bottom Pan Panel. Package BackCountryDeep Black LH Side Bottom Pan Panel. Package BackCountry
-
1810293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1820293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1830517305109 Rivet PlateRivet Plate
