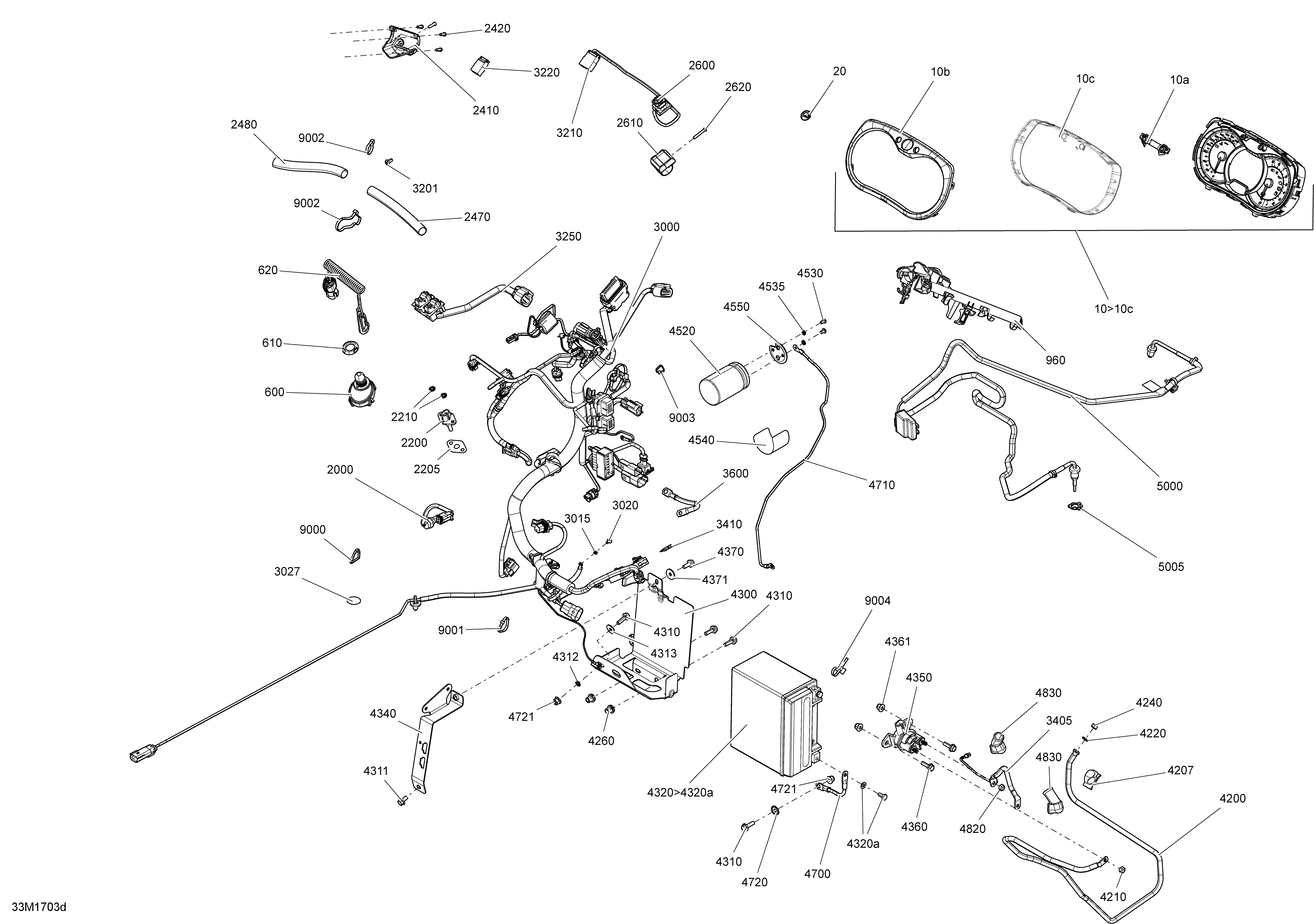

10- Electrical System - Package Enduro для BRP Ski-Doo RENEGADE - 2-STROKE - 600HO E-TEC - 2017

  • №
    Артикул
    Название
  • 10>10c
    515177910 Speedometer. Includes 10 to 10c
    Speedometer. Includes 10 to 10c
  • 10a
    415129355 Speedometer Button
    Speedometer Button
  • 10b
    415129348 Gauge Ring
    Gauge Ring
  • 10c
    415129349 Lens
    Lens
  • 20
    516006224 BRP Logo, 20 mm
    BRP Logo, 20 mm
  • 600
    515178225 DESS Switch
    DESS Switch
  • 610
    278002963 Safety Nut
    Safety Nut
  • 620
    515178286 Grey - RF Key Ass'y
    Grey - RF Key Ass'y
  • 800
    515177837 Visor Harness
    Visor Harness
  • 810
    572103300 Cap
    Cap
  • 950>950b
    515176844 Rocker Switch Ass'y. Includes 950 to 950b
    Rocker Switch Ass'y. Includes 950 to 950b
  • 950a
    510004413 Rocker Switch
    Rocker Switch
  • 950b
    510004414 Switch Protector
    Switch Protector
  • 960
    515177134 Connector Plate
    Connector Plate
  • 1000
    710001248 Outlet DC
    Outlet DC
  • 1010
    515177400 12 Volts Outlet Harness
    12 Volts Outlet Harness
  • 1050
    515178203 Seat Harness
    Seat Harness
  • 2000
    515177813 Temperature Sensor
    Temperature Sensor
  • 2200
    515176366 Air Temperature Sensor
    Air Temperature Sensor
  • 2205
    508000769 Seal
    Seal
  • 2210
    389804300 Push Nut
    Push Nut
  • 2400
    515178197 LH Switch Housing
    LH Switch Housing
  • 2410
    515177147 Housing Plate
    Housing Plate
  • 2420
    250000671 Torx Screw
    Torx Screw
  • 2470
    415129879 Protector Tube
    Protector Tube
  • 2480
    415129879 Protector Tube
    Protector Tube
  • 2600
    515177362 Kill Switch
    Kill Switch
  • 2610
    515177310 Kill Switch Support
    Kill Switch Support
  • 2620
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 3000
    515177987 Main Harness
    Main Harness
  • 3015
    234141601 Lock Washer 4 mm
    Lock Washer 4 mm
  • 3020
    250000741 Screw-Torx Button Head M4 X 8
    Screw-Torx Button Head M4 X 8
  • 3025
    515176795 Clip
    Clip
  • 3026
    390909200 Avex Rivet
    Avex Rivet
  • 3201
    250000690 Pan Screw Forming, 7500C
    Pan Screw Forming, 7500C
  • 3210
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 3220
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 3405
    515177576 Fuse Battery Wire
    Fuse Battery Wire
  • 3410
    278001443 Fuse, 25 Amperes
    Fuse, 25 Amperes
  • 3500
    515177234 Compressor Module
    Compressor Module
  • 3510
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 3515
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 3520
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 3525
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 3600
    515177289 Ground Wire
    Ground Wire
  • 4200
    515177208 Battery/Starter Wire
    Battery/Starter Wire
  • 4207
    515177066 Clip
    Clip
  • 4210
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 4220
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 4240
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 4260
    293450275 Insert
    Insert
  • 4300
    515177264 Battery Support
    Battery Support
  • 4310
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4310
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4311
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 4312
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 4313
    250200082 Flat Washer
    Flat Washer
  • 4320>4320a
    410301203 Battery Ass'y, 18 Amperes. Includes 4320 to 4320a
    Battery Ass'y, 18 Amperes. Includes 4320 to 4320a
  • 4320a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 4340
    515177266 Battery Strip
    Battery Strip
  • 4350
    278003012 Starter Relay
    Starter Relay
  • 4360
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4361
    233261416 Elastic Flanged Nut M6 X 1.0
    Elastic Flanged Nut M6 X 1.0
  • 4370
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 4371
    224061201 Flat Washer
    Flat Washer
  • 4520
    515177272 Capacitor
    Capacitor
  • 4530
    250000462 Socket Head Screw M10 X 32
    Socket Head Screw M10 X 32
  • 4535
    250200026 Lock washer
    Lock washer
  • 4540
    516008155 English Decal
    English Decal
  • 4550
    515177193 Cap
    Cap
  • 4700
    515176358 Ground Wire
    Ground Wire
  • 4710
    515178052 Ground Wire
    Ground Wire
  • 4720
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 4721
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 4721
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 4820
    232561414 Elastic Stop Nut M6 x 1.0
    Elastic Stop Nut M6 x 1.0
  • 4830
    710000495 Protector Cap
    Protector Cap
  • 6000
    515175851 Extension
    Extension
  • 9000
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 9001
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 9002
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 9003
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 9004
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
