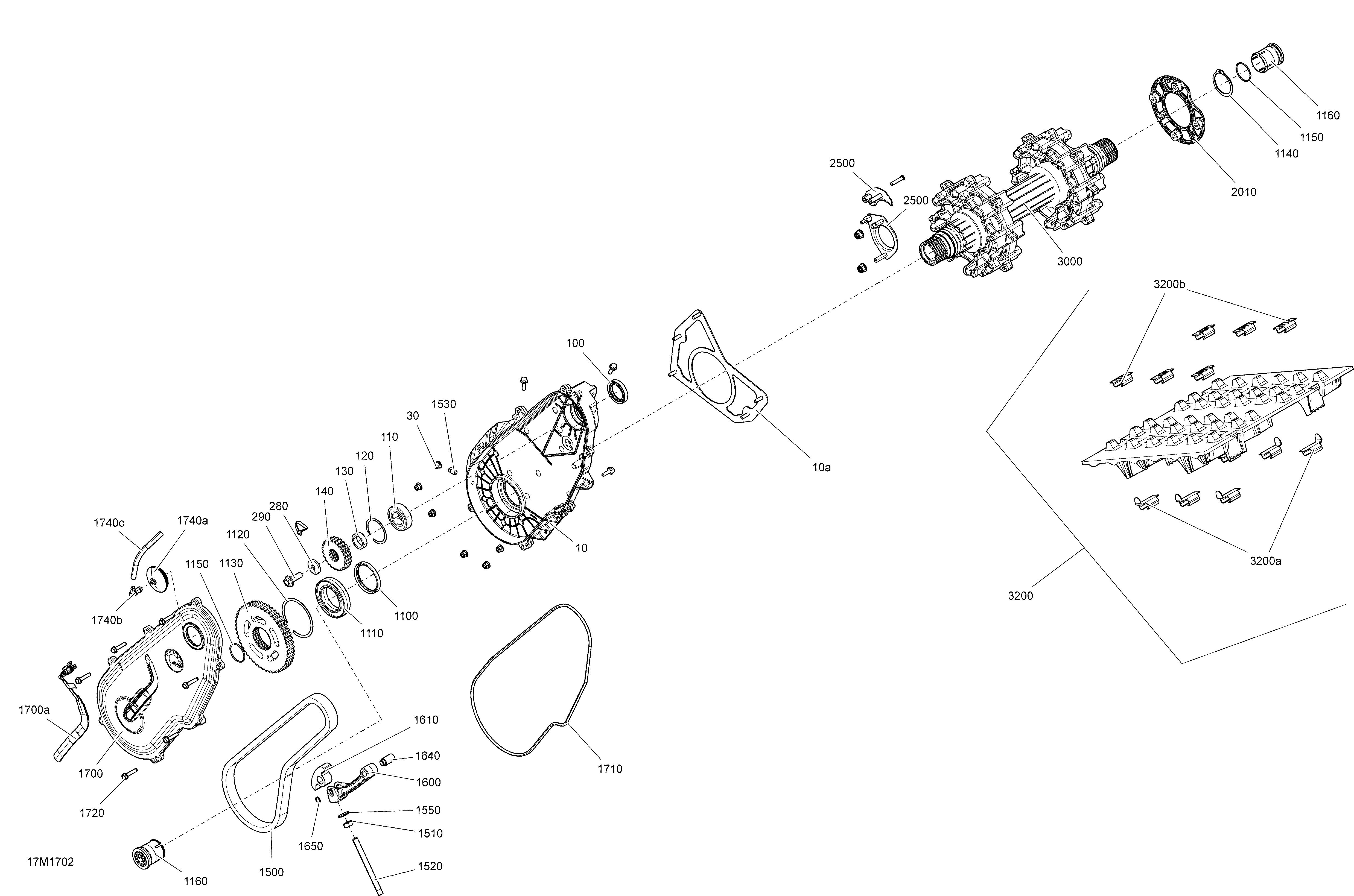

05- Drive System для BRP Ski-Doo RENEGADE - 2-STROKE - 600 CARB - 2017

  • №
    Артикул
    Название
  • 10>10a
    504153181 Chaincase. Includes 10 to 10a
    Chaincase. Includes 10 to 10a
  • 10a
    518325816 Plate
    Plate
  • 100
    293250175 Oil Seal
    Oil Seal
  • 110
    293350055 Ball Bearing
    Ball Bearing
  • 120
    504152576 Circlip
    Circlip
  • 130
    504152628 Shim
    Shim
  • 140
    504091000 Sprocket, 23 Teeth
    Sprocket, 23 Teeth
  • 280
    504152784 Spring Washer M10
    Spring Washer M10
  • 290
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 1100
    504152571 Seal
    Seal
  • 1110
    293350059 Ball Bearing
    Ball Bearing
  • 1120
    504152582 Circlip
    Circlip
  • 1130
    504152593 Sprocket, 45 Teeth
    Sprocket, 45 Teeth
  • 1140
    504152572 Circlip
    Circlip
  • 1150
    293300122 O-Ring
    O-Ring
  • 1160
    504152619 Magnetic Cap
    Magnetic Cap
  • 1500
    504152629 Drive Chain, 104 Links
    Drive Chain, 104 Links
  • 1510
    232006414 Hex. Nut M10 X 1.5
    Hex. Nut M10 X 1.5
  • 1520
    504152602 Adjustment Screw
    Adjustment Screw
  • 1530
    504152636 Magnetic Plug 1/8 - 27 NPTF
    Magnetic Plug 1/8 - 27 NPTF
  • 1550
    250200100 Bonded Washer
    Bonded Washer
  • 1600
    504153429 Tensioner chain
    Tensioner chain
  • 1610
    504152739 Slider Chain
    Slider Chain
  • 1640
    504152841 Tensioner Axle
    Tensioner Axle
  • 1650
    504152282 Circlip
    Circlip
  • 1700>1700a
    504153147 Chaincase Cover Ass'y. Includes 1700 to 1700a
    Chaincase Cover Ass'y. Includes 1700 to 1700a
  • 1700a
    504152896 Rotation Sensor
    Rotation Sensor
  • 1710
    293300130 O-Ring
    O-Ring
  • 1720
    250000360 Flanged Hex. Screw M6 X 1.0 X 30
    Flanged Hex. Screw M6 X 1.0 X 30
  • 1740a
    504152860 Cap
    Cap
  • 1740b
    414580700 Male Connector
    Male Connector
  • 1740c
    415080200 Hose, Polyurethane, iD 5.7mm
    Hose, Polyurethane, iD 5.7mm
  • 2010
    504152949 Housing Bearing
    Housing Bearing
  • 2500
    504153185 Bearing Housing
    Bearing Housing
  • 2510
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 2520
    293350074 Ball Bearing
    Ball Bearing
  • 2550
    504153000 Countershaft
    Countershaft
  • 3000
    504153083 Drive Axle Ass'y
    Drive Axle Ass'y
  • 3200>3200b
    504152838 Track Ass'y 15'' X 137'' X 1.2C''. Includes 3200 to 3200b
    Track Ass'y 15'' X 137'' X 1.2C''. Includes 3200 to 3200b
  • 3200a
    415129528 Track Guide
    Track Guide
  • 3200b
    415129529 Cleat
    Cleat
