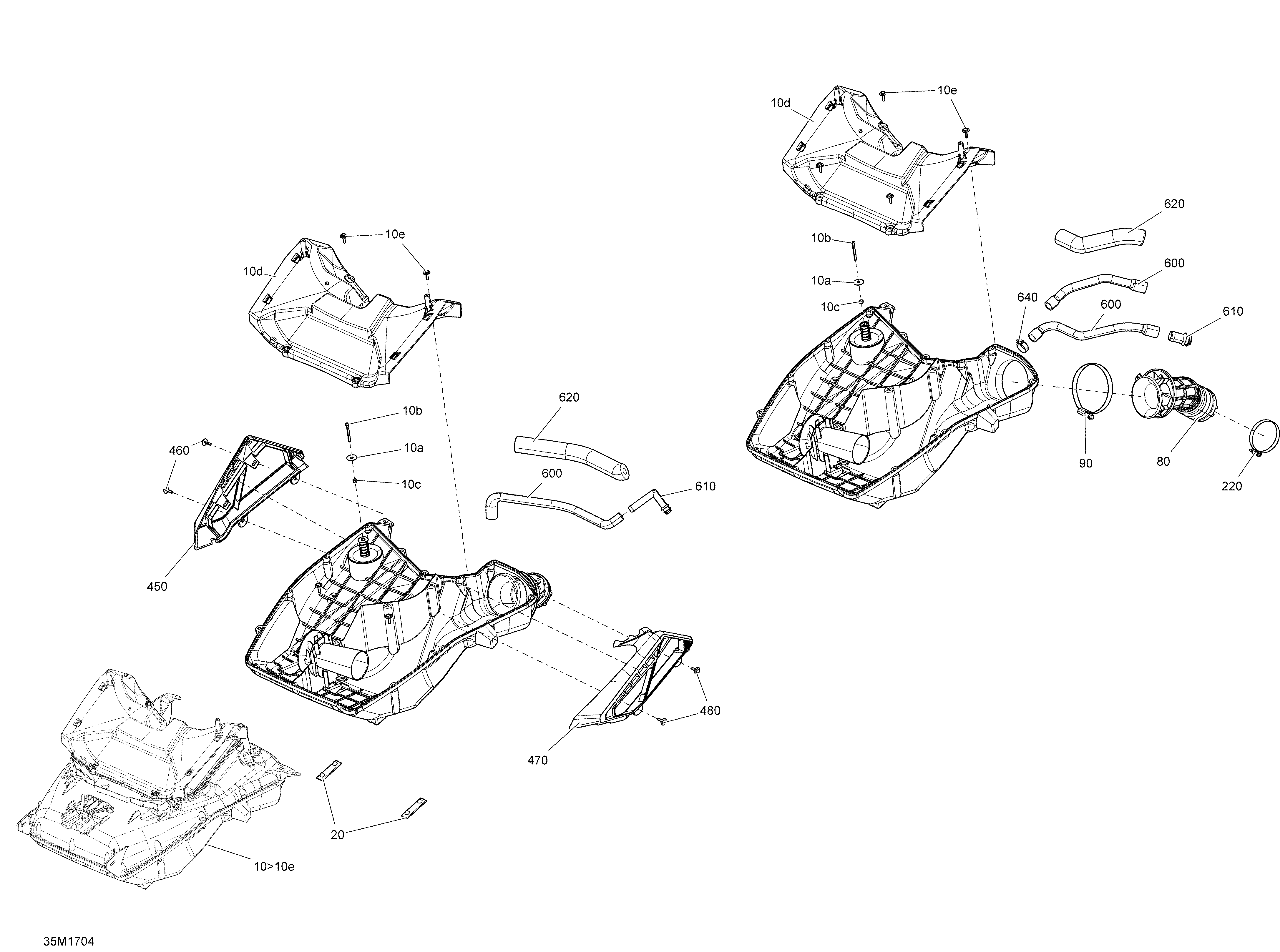

02- Air Intake System - All Models для BRP Ski-Doo MXZ - 4-STROKE - 2017
-
№АртикулНазвание
-
10508000747 Secondary Chamber Ass'y. Includes 10 to 10eSecondary Chamber Ass'y. Includes 10 to 10e
-
10a224060201 Flat WasherFlat Washer
-
10b205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
10c232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
10d508000732 Air DuctAir Duct
-
10e250000725 Screw M4 X 16Screw M4 X 16
-
20508000744 StopperStopper
-
80508000791 Intake Hose. 1203Intake Hose. 1203
-
80508000827 Intake Hose. 602, 903Intake Hose. 602, 903
-
90514052924 Norma Clamp. 1203Norma Clamp. 1203
-
220293650229 Gemi ClampGemi Clamp
-
450508000730 RH Air FilterRH Air Filter
-
460250000725 Screw M4 X 16Screw M4 X 16
-
470508000731 LH Air FilterLH Air Filter
-
480250000725 Screw M4 X 16Screw M4 X 16
-
600508000746 Hose Vent. 903Hose Vent. 903
-
600508000774 Formed Vent Hose. 602Formed Vent Hose. 602
-
600508000792 Fan Hose. 1203Fan Hose. 1203
-
610273000234 Breather. 602, 903Breather. 602, 903
-
610508000811 Breather. 1203Breather. 1203
-
620508000582 Insulating Tube. 1203Insulating Tube. 1203
-
620508000648 Tube Isolator. 602, 903Tube Isolator. 602, 903
-
640293650172 Tridon Gear ClampTridon Gear Clamp
