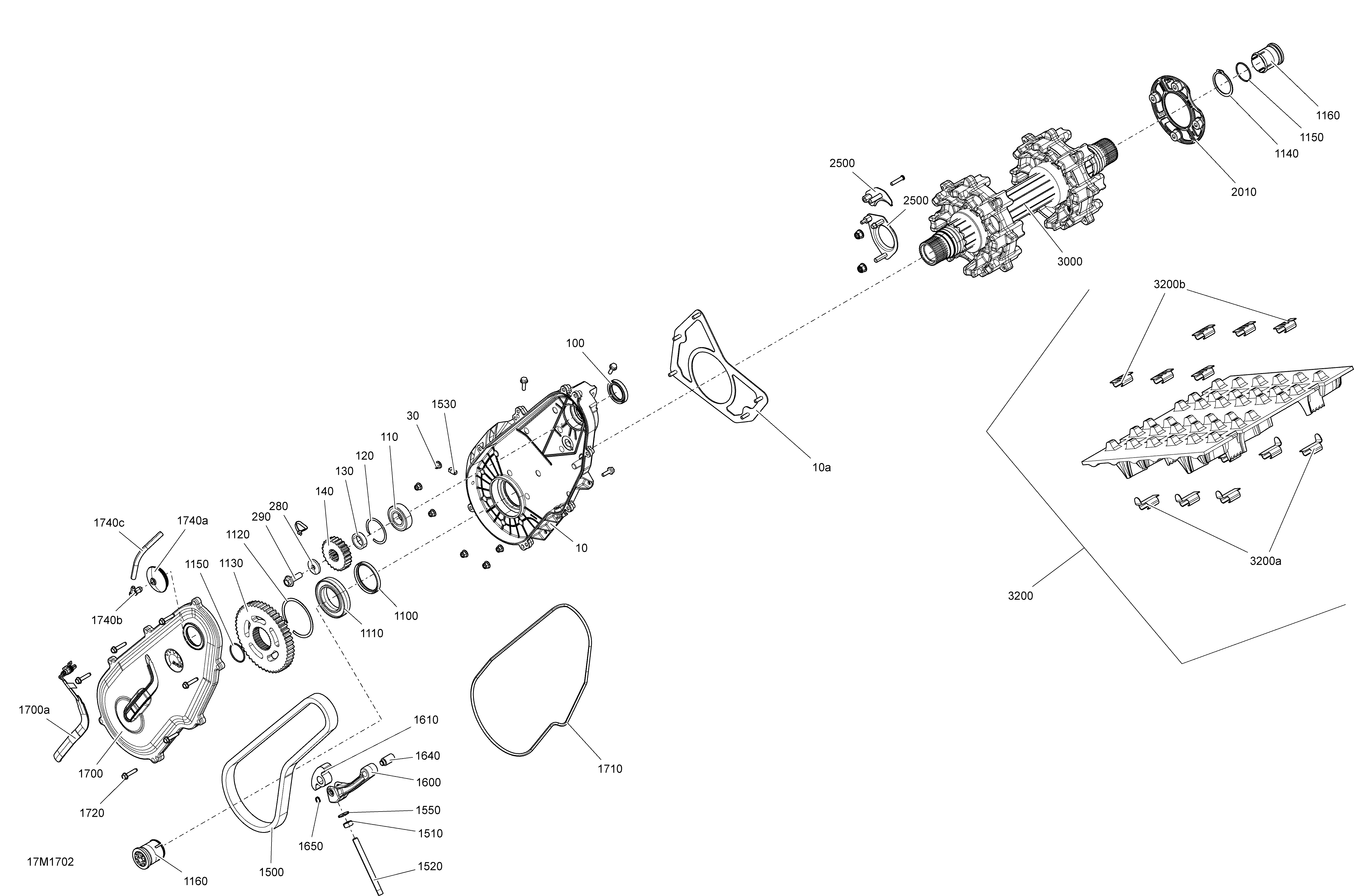

05- Drive System - All Models для BRP Ski-Doo FREERIDE - 2017

  • №
    Артикул
    Название
  • 10>10a
    504153405 Chaincase. Includes 10 to 10a
    Chaincase. Includes 10 to 10a
  • 10a
    518325816 Plate
    Plate
  • 100
    415049300 Oil Seal
    Oil Seal
  • 110
    293350055 Ball Bearing
    Ball Bearing
  • 120
    504152576 Circlip
    Circlip
  • 130
    504152628 Shim
    Shim
  • 140
    504091000 Sprocket, 23 Teeth. Model: VAHB, VBHC
    Sprocket, 23 Teeth. Model: VAHB, VBHC
  • 140
    504096200 Sprocket, 21 Teeth. Model: VAHA, VAHC, VBHA, VBHB, VBHD, VCHC, VCHD
    Sprocket, 21 Teeth. Model: VAHA, VAHC, VBHA, VBHB, VBHD, VCHC, VCHD
  • 140
    504152030 Sprocket, 19 Teeth. Model: VCHA, VCHB
    Sprocket, 19 Teeth. Model: VCHA, VCHB
  • 280
    504152784 Spring Washer M10
    Spring Washer M10
  • 290
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 1100
    504152571 Seal
    Seal
  • 1110
    293350059 Ball Bearing
    Ball Bearing
  • 1120
    504152582 Circlip
    Circlip
  • 1130
    504152581 Sprocket, 49 Teeth. Model: VBHA, VBHB, VBHD, VCHA, VCHB, VCHC, VCHD
    Sprocket, 49 Teeth. Model: VBHA, VBHB, VBHD, VCHA, VCHB, VCHC, VCHD
  • 1130
    504152593 Sprocket, 45 Teeth. Track 137
    Sprocket, 45 Teeth. Track 137
  • 1130
    504152971 Sprocket, 51 Teeth. Model: VBHC
    Sprocket, 51 Teeth. Model: VBHC
  • 1140
    504152572 Circlip
    Circlip
  • 1150
    293300122 O-Ring
    O-Ring
  • 1160
    504152619 Magnetic Cap
    Magnetic Cap
  • 1500
    504152579 Drive Chain, 102 Links. Model: VAHA, VAHC
    Drive Chain, 102 Links. Model: VAHA, VAHC
  • 1500
    504152629 Drive Chain, 104 Links. Model: VAHB, VCHA, VCHB
    Drive Chain, 104 Links. Model: VAHB, VCHA, VCHB
  • 1500
    504152630 Drive Chain, 106 Links. Model: VBHA, VBHB, VBHD, VCHC, VCHD
    Drive Chain, 106 Links. Model: VBHA, VBHB, VBHD, VCHC, VCHD
  • 1500
    504152631 Drive Chain, 108 Links. Model: VBHC
    Drive Chain, 108 Links. Model: VBHC
  • 1510
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 1520
    504152602 Adjustment Screw
    Adjustment Screw
  • 1530
    504152854 Magnetic Plug
    Magnetic Plug
  • 1550
    250200100 Bonded Washer
    Bonded Washer
  • 1600
    504153429 Tensioner chain
    Tensioner chain
  • 1610
    504152739 Slider Chain
    Slider Chain
  • 1640
    504152841 Tensioner Axle
    Tensioner Axle
  • 1650
    504152282 Circlip
    Circlip
  • 1700>1700a
    504153410 Chaincase Cover Ass'y. Includes 1700 to 1700a
    Chaincase Cover Ass'y. Includes 1700 to 1700a
  • 1700a
    504152896 Sensor
    Sensor
  • 1710
    293300130 O-Ring
    O-Ring
  • 1720
    210263050 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 1740a
    504152860 Cap
    Cap
  • 1740b
    414580700 Male Connector
    Male Connector
  • 1740c
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 2010
    504152949 Housing Bearing
    Housing Bearing
  • 2500
    504153418 Bearing Housing
    Bearing Housing
  • 3000
    504153085 Drive Axle Ass'y
    Drive Axle Ass'y
  • 3200>3200b
    504153198 Track Ass'y 16'' X 146'' X 2.50''. Track 146. Includes 3200 to 3200b
    Track Ass'y 16'' X 146'' X 2.50''. Track 146. Includes 3200 to 3200b
  • 3200>3200b
    504153199 Track Ass'y 16'' X 154'' X 2.50''. Track 154. Includes 3200 to 3200b
    Track Ass'y 16'' X 154'' X 2.50''. Track 154. Includes 3200 to 3200b
  • 3200>3200b
    504153293 Track Ass'y 16'' X 137'' X 2.2PSH''. Model: VAHA, VAHC. Includes 3200 to 3200b
    Track Ass'y 16'' X 137'' X 2.2PSH''. Model: VAHA, VAHC. Includes 3200 to 3200b
  • 3200>3200b
    504153294 Track Ass'y 16'' X 137'' X 1.7''. Model: VAHB. Includes 3200 to 3200b
    Track Ass'y 16'' X 137'' X 1.7''. Model: VAHB. Includes 3200 to 3200b
  • 3200a
    415129528 Track Guide
    Track Guide
  • 3200b
    415129529 Cleat
    Cleat
