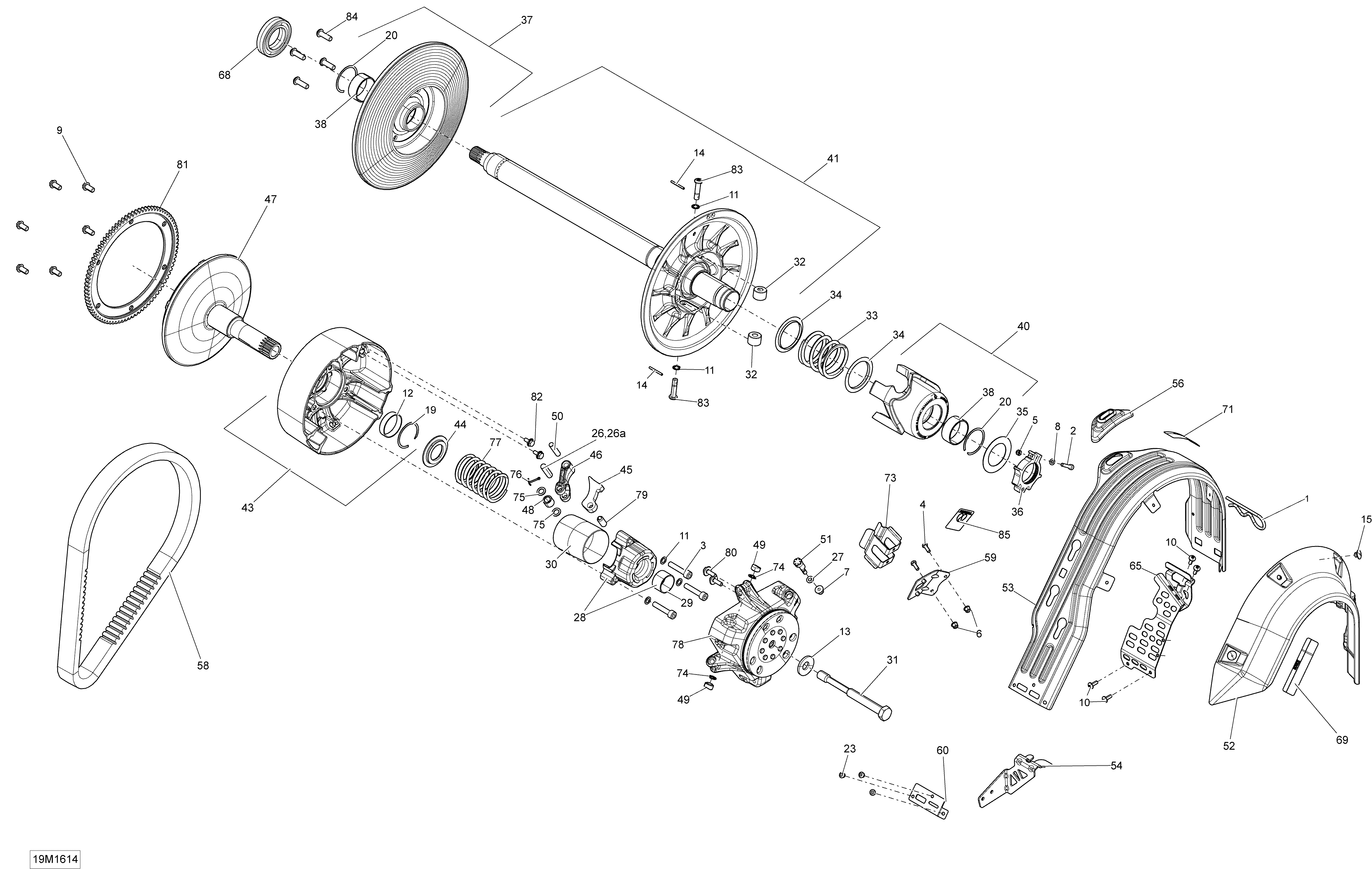

05- Pulley System для BRP Ski-Doo TUNDRA - Xtreme - 2016
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4207151444 Hex. Screw M5 X 14Hex. Screw M5 X 14
-
5232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
6233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8234051410 Flat Washer M5Flat Washer M5
-
9250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
10250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
11250200009 Lock Washer 8 mmLock Washer 8 mm
-
12417222758 BushingBushing
-
13250200144 Conical Spring Washer M14Conical Spring Washer M14
-
14250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
15293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
19293370037 CirclipCirclip
-
20293370049 CirclipCirclip
-
23390909200 Avex RivetAvex Rivet
-
26417004308 Pin. EuropePin. Europe
-
26417222477 Threaded Pin. Except Europe, Includes 26 To 26aThreaded Pin. Except Europe, Includes 26 To 26a
-
26b250000410 Socket Set Screw M6 X 16. Except EuropeSocket Set Screw M6 X 16. Except Europe
-
27417005600 WasherWasher
-
28417007500 Spring Cover Ass'ySpring Cover Ass'y
-
29417009204 BushingBushing
-
30417009205 GuardGuard
-
31417120000 Drive Pulley BoltDrive Pulley Bolt
-
32417127016 RollerRoller
-
33417127039 Black SpringBlack Spring
-
34417127116 Swivel AbutmentSwivel Abutment
-
35417127155 WasherWasher
-
36415129604 Calibration Ass'yCalibration Ass'y
-
37417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
38417127318 BushingBushing
-
40417127376 Cam Ass'y. EuropeCam Ass'y. Europe
-
40417127325 Cam Ass'y. Except EuropeCam Ass'y. Except Europe
-
41417127389 Fix Flange Ass'yFix Flange Ass'y
-
43417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
44417222312 Spring SeatSpring Seat
-
45417222515 Ramp 412. EuropeRamp 412. Europe
-
45417222552 Ramp 417. Except EuropeRamp 417. Except Europe
-
46417222671 LeverLever
-
47417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
48417222947 RollerRoller
-
49417222992 Slider Shoe. EuropeSlider Shoe. Europe
-
49417223271 Slider Shoe. Except EuropeSlider Shoe. Except Europe
-
50417223164 Lever AxleLever Axle
-
51417223501 Calibration ScrewCalibration Screw
-
52417300356 Side ProtectorSide Protector
-
53417300382 Belt GuardBelt Guard
-
54417300374 Front Belt Guard BracketFront Belt Guard Bracket
-
56417300381 GuideGuide
-
58417300383 Drive BeltDrive Belt
-
59417300406 PlatePlate
-
60417300380 ReinforcementReinforcement
-
65417300448 Belt Guard BracketBelt Guard Bracket
-
68504152574 Ball BearingBall Bearing
-
69516005503 Decal, EnglishDecal, English
-
71516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
73517281905 BracketBracket
-
74732401030 O-RingO-Ring
-
75417004302 Stopper WasherStopper Washer
-
76250400060 Cotter PinCotter Pin
-
77414817700 Spring, Blue/green. EuropeSpring, Blue/green. Europe
-
77415015200 Spring (Red/Orange). Except EuropeSpring (Red/Orange). Except Europe
-
78417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
79250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
80250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
81417223738 Ring GearRing Gear
-
82250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
83417127294 Pivot StudPivot Stud
-
84250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
85516007493 Belt Gard DecalBelt Gard Decal
