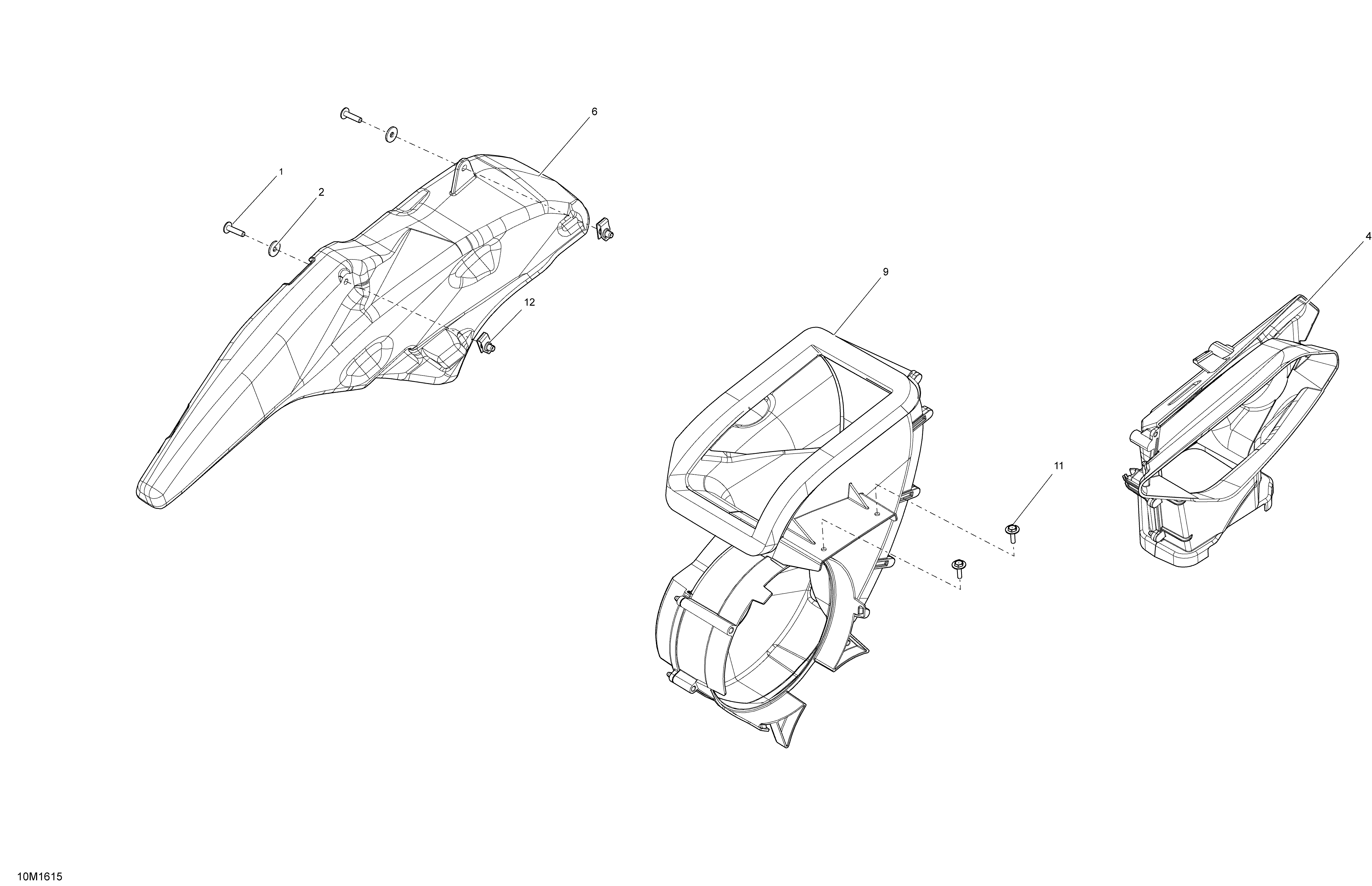

01- Cooling System для BRP Ski-Doo TUNDRA - LT-Sport_2-STROKE - 2016
-
№АртикулНазвание
-
1250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2391301600 WasherWasher
-
4509000540 Outlet Duct Ass.Outlet Duct Ass.
-
6509000543 Air Chamber Ass'yAir Chamber Ass'y
-
9509000840 Inlet DuctInlet Duct
-
11250000725 Screw M4 X 16Screw M4 X 16
-
12250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
