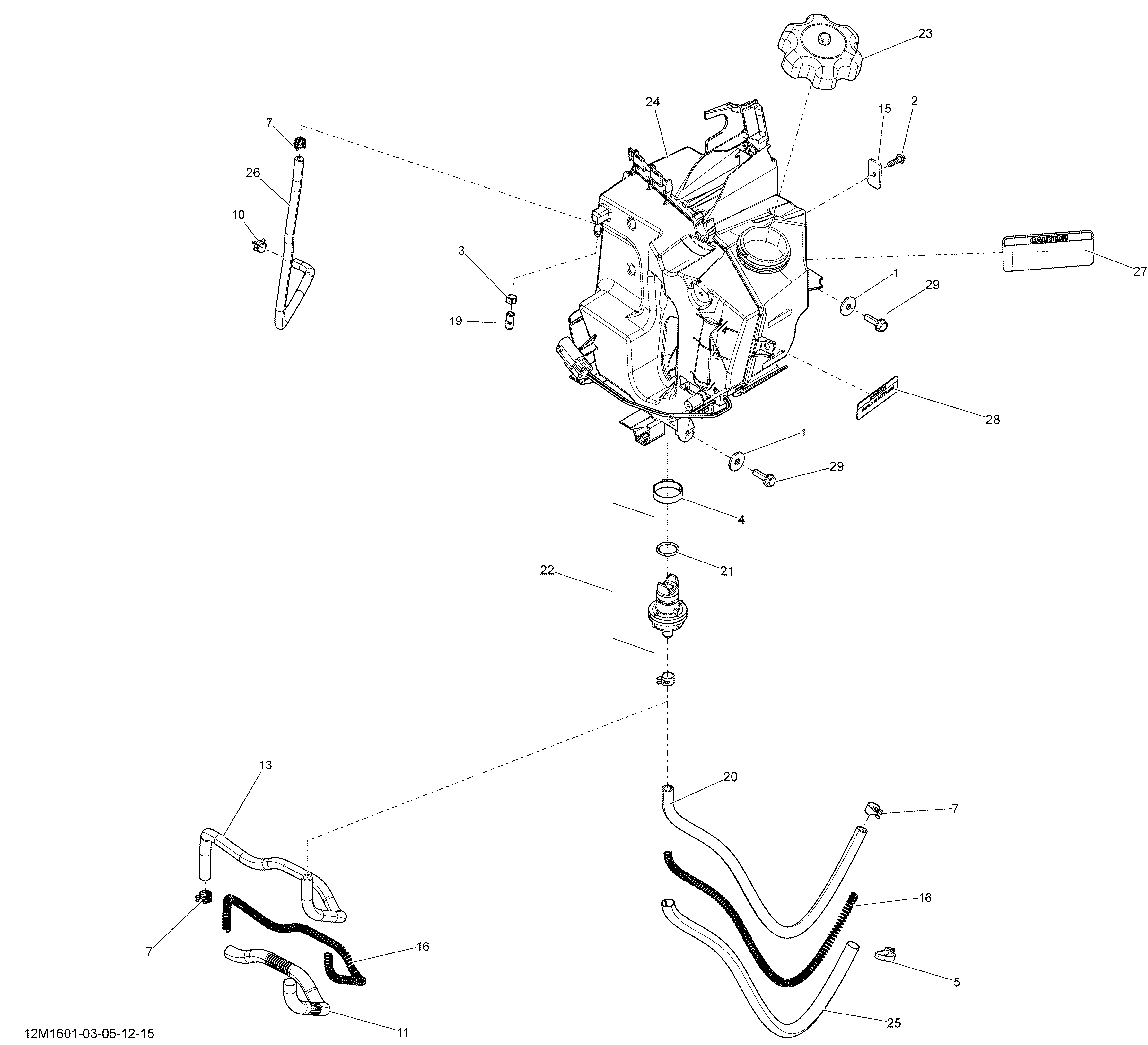

02- Oil - 800R PTEK для BRP Ski-Doo SUMMIT 800R P-TEK - 2016
-
№АртикулНазвание
-
1224061201 Flat WasherFlat Washer
-
2241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
4293650099 Crimp Clamp, 28.6-706RCrimp Clamp, 28.6-706R
-
5414415200 Spring ClampSpring Clamp
-
7414420700 Spring ClampSpring Clamp
-
10414554800 Spring ClampSpring Clamp
-
11415079900 Tubing 10 mmTubing 10 mm
-
13415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
15519000179 BracketBracket
-
16519000196 SpringSpring
-
21519000242 Oil FilterOil Filter
-
22519000242 Oil FilterOil Filter
-
23519000273 CapCap
-
24519000312 Oil TankOil Tank
-
26415080200 Hose, Polyurethane, iD 5.7mmHose, Polyurethane, iD 5.7mm
-
27516007443 Warning Decal / Oil NoticeWarning Decal / Oil Notice
-
28516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
29250000768 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
