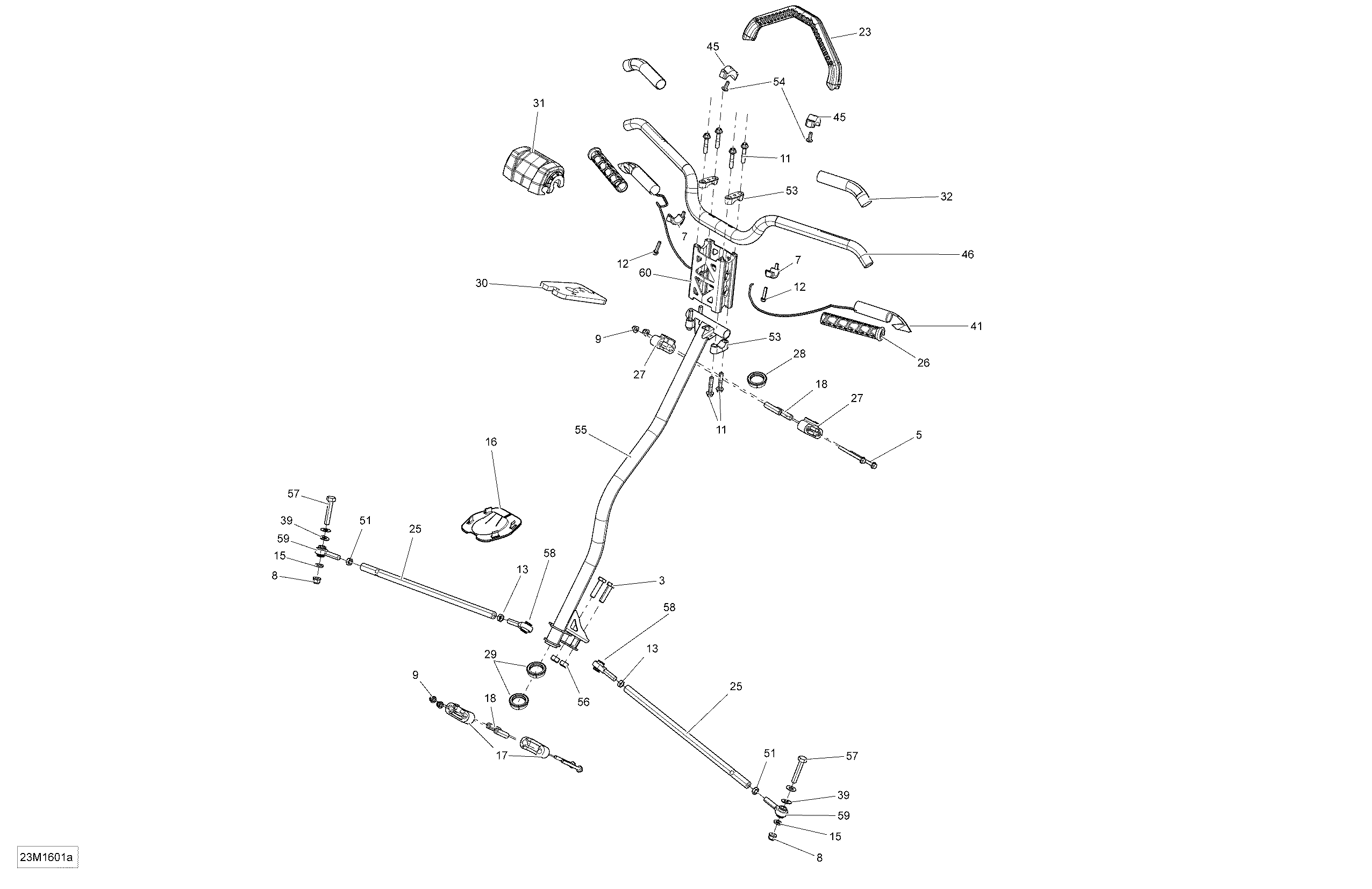

07- Steering - 600 CARB для BRP Ski-Doo SUMMIT 600 CARB - 2016
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 1.5 X 40Hex. Screw M10 X 1.5 X 40
-
5207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
7719000049 Clamps KitClamps Kit
-
8233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
9233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
12250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
13250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
15503192496 WasherWasher
-
16506152163 PlatePlate
-
17506152217 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
23506152460 Moulding StrapMoulding Strap
-
25506152482 Tie-RodTie-Rod
-
26506152486 GripGrip
-
27506152508 Upper Half-HousingUpper Half-Housing
-
28506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
29506152518 Lower Vibration RingLower Vibration Ring
-
30506152521 BushingBushing
-
31506152541 Steering Pad, Deep BlackSteering Pad, Deep Black
-
32506152548 IsolantIsolant
-
39506152582 WasherWasher
-
41506152602 Heating Element 28 WATTHeating Element 28 WATT
-
45506152703 Black Support PlateBlack Support Plate
-
46506152709 Handle Bar, Non Dyed Clear AnodizingHandle Bar, Non Dyed Clear Anodizing
-
51732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152751 Steering SupportSteering Support
-
54250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
55506152839 Tube Main WeldTube Main Weld
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
57207005554 Hex Screw M10 X 1.5 X 55Hex Screw M10 X 1.5 X 55
-
58506152019 RH Thread Ball JointRH Thread Ball Joint
-
59506152081 LH Thread Ball JointLH Thread Ball Joint
-
60860200821 Extension Kit ( 205mm ). Which includes extension and 8 screws Ref# 11Extension Kit ( 205mm ). Which includes extension and 8 screws Ref# 11
