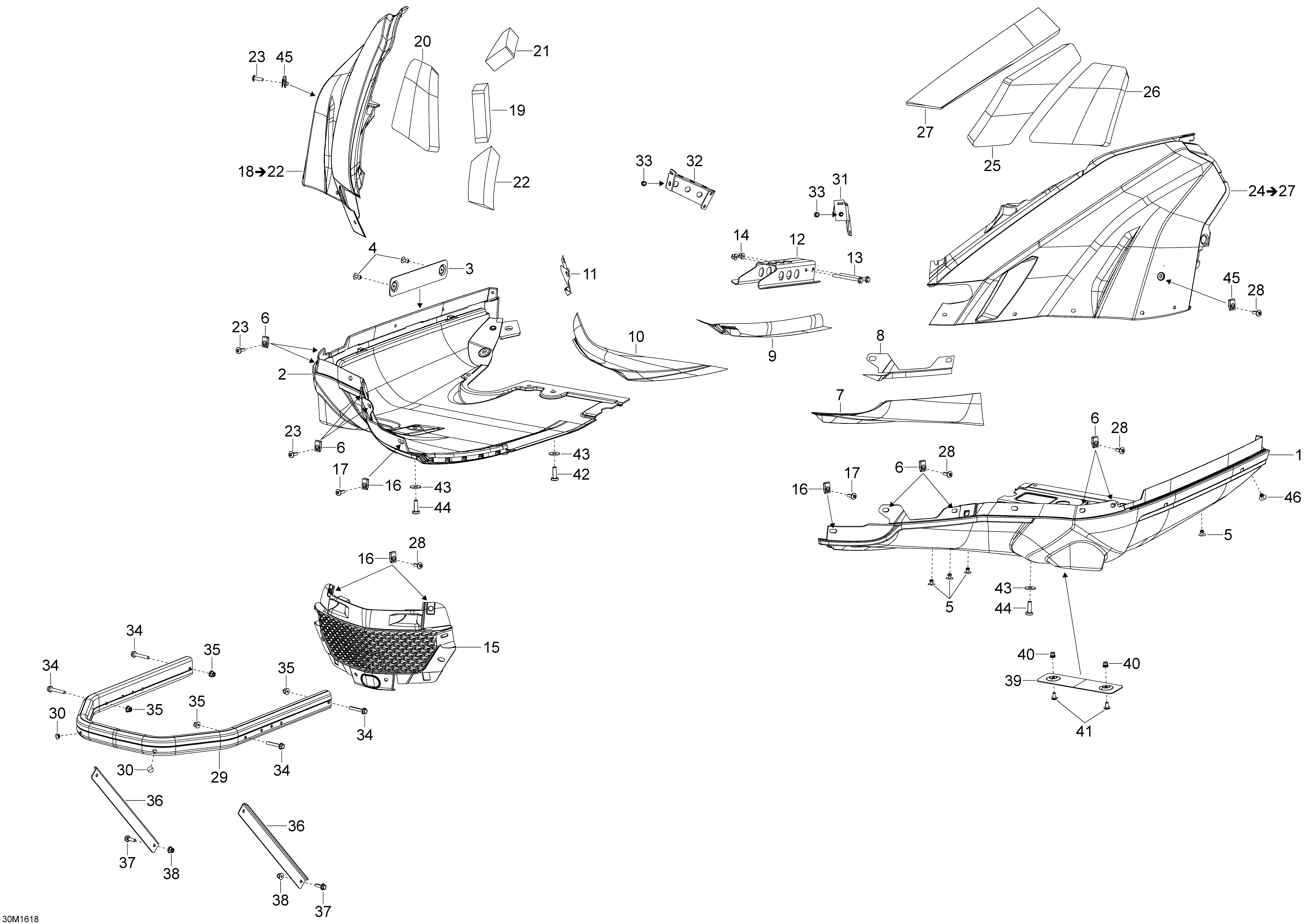

09- Bottom Pan для BRP Ski-Doo SKANDIC - 4-STROKE - 2016
-
№АртикулНазвание
-
1502007447 Black LH Lower Bottom PanBlack LH Lower Bottom Pan
-
2502007446 Black RH Lower Bottom PanBlack RH Lower Bottom Pan
-
3502007255 Heat Insulation PlateHeat Insulation Plate
-
4293150211 RivetRivet
-
5293150104 Pop Rivet 3/16. Model-WTPop Rivet 3/16. Model-WT
-
5293150104 Pop Rivet 3/16. Model-SWTPop Rivet 3/16. Model-SWT
-
6250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
7508000832 Heat Shield. Model-900 ACEHeat Shield. Model-900 ACE
-
8508000835 Heat Shield. Model-900 ACEHeat Shield. Model-900 ACE
-
9508000837 Heat Shield. Model-900 ACEHeat Shield. Model-900 ACE
-
10508000833 Heat Shield. Model-900 ACEHeat Shield. Model-900 ACE
-
11508000836 Heat Shield. Model-900 ACEHeat Shield. Model-900 ACE
-
12502007635 SupportSupport
-
13207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
14233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
15502007140 Front GrillFront Grill
-
16250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
17250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
18502007292 Black Bottom Pan Ass'y RH. Includes 18 To 22Black Bottom Pan Ass'y RH. Includes 18 To 22
-
19502007133 InsulatorInsulator
-
20502007132 InsulatorInsulator
-
21502007008 InsulatorInsulator
-
22502007009 InsulatorInsulator
-
23250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
24502007294 Black LH Bottom Pan Ass'y. Includes 24 To 27Black LH Bottom Pan Ass'y. Includes 24 To 27
-
25502007088 InsulatorInsulator
-
26502007131 InsulatorInsulator
-
27502007185 InsulatorInsulator
-
28250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
29502007469 Clear Anod. BumperClear Anod. Bumper
-
30293730041 DartDart
-
31502007535 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
32502007536 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
33605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
34207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
35233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
36502006927 Bumper SupportBumper Support
-
37207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
38233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
39518328879 Oil PlateOil Plate
-
40605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
41250000722 Torx Screw M6 x 20Torx Screw M6 x 20
-
42250000752 Torx Screw M8 x 25Torx Screw M8 x 25
-
43234082410 Flat WasherFlat Washer
-
44250000722 Torx Screw M6 x 20Torx Screw M6 x 20
-
45250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
46293150108 Pop Rivet 3/16. Model-WTPop Rivet 3/16. Model-WT
