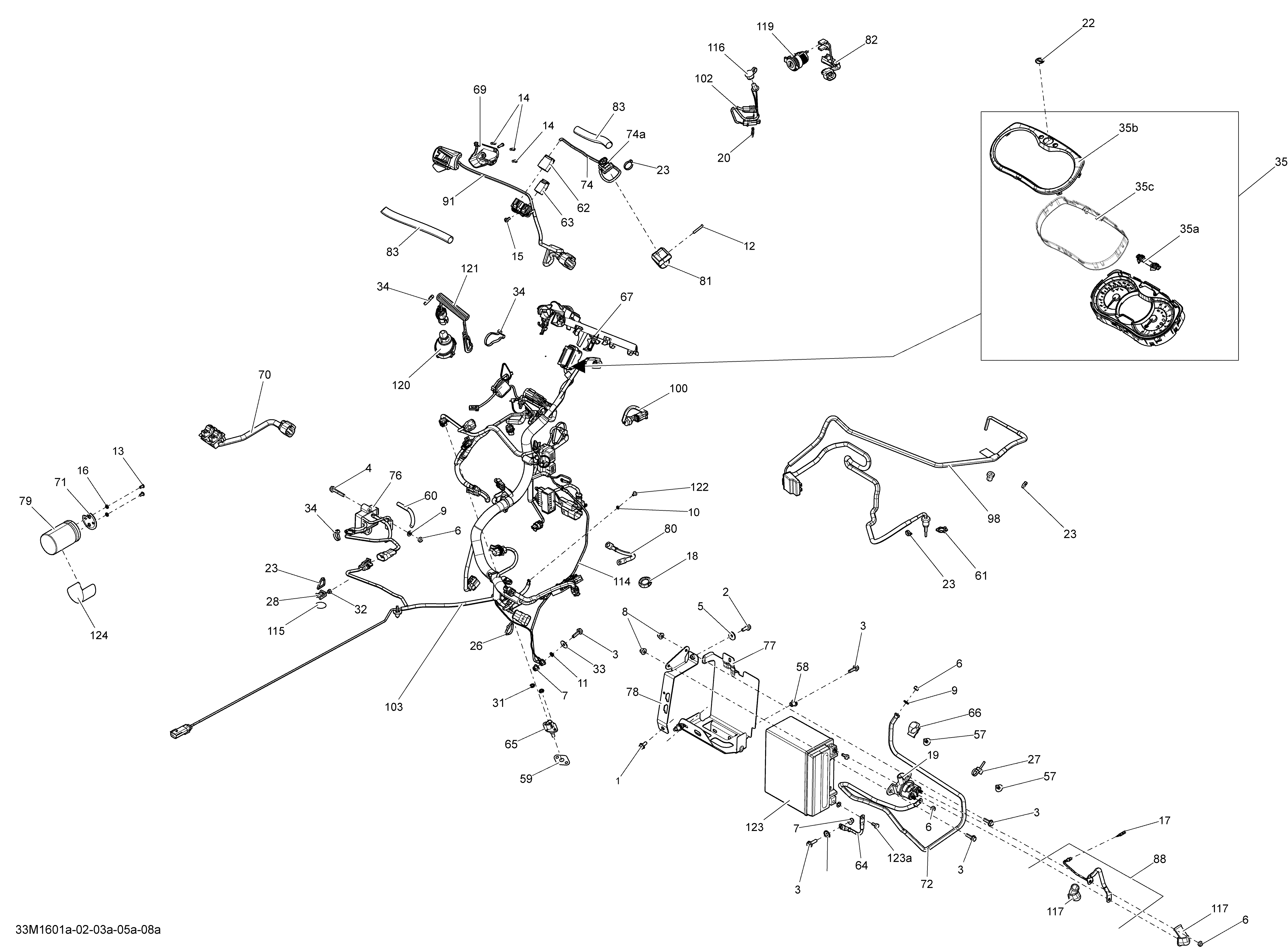

10- Electrical System - 600HO-800R E-TEC для BRP Ski-Doo RENEGADE 600HO E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    207661244 Hex. Flanged Screw M6 X 12
    Hex. Flanged Screw M6 X 12
  • 2
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 3
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 5
    224061201 Flat Washer
    Flat Washer
  • 6
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 7
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 8
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 9
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 10
    234141601 Lock Washer 4 mm
    Lock Washer 4 mm
  • 11
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 12
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 13
    250000462 Socket Head Screw M10 X 32
    Socket Head Screw M10 X 32
  • 14
    250000671 Torx Screw
    Torx Screw
  • 15
    250000690 Pan Screw Forming, 7500C
    Pan Screw Forming, 7500C
  • 16
    250200026 Lock washer
    Lock washer
  • 17
    278001443 Fuse, 25 Amperes
    Fuse, 25 Amperes
  • 18
    278002963 Safety Nut
    Safety Nut
  • 19
    278003012 Starter Relay
    Starter Relay
  • 20
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 22
    516006224 BRP Logo, 20 mm
    BRP Logo, 20 mm
  • 23
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 26
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 27
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 28
    515176795 Clip
    Clip
  • 31
    389804300 Push Nut
    Push Nut
  • 32
    390909200 Avex Rivet
    Avex Rivet
  • 33
    250200082 Flat Washer
    Flat Washer
  • 34
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 35
    515177910 Speedometer. Renegade Except Package-Adrenaline, Includes 35 To 35c
    Speedometer. Renegade Except Package-Adrenaline, Includes 35 To 35c
  • 35
    515177914 Speedometer. Renegade Package-BackCountry, Includes 35 To 35c
    Speedometer. Renegade Package-BackCountry, Includes 35 To 35c
  • 35
    515177914 Speedometer. Renegade Package-Adrenaline, Includes 35 To 35c
    Speedometer. Renegade Package-Adrenaline, Includes 35 To 35c
  • 35a
    415129355 Speedometer Button
    Speedometer Button
  • 35b
    415129348 Gauge Ring. Except Package-BackCountry, BackCountry X, Adrenaline
    Gauge Ring. Except Package-BackCountry, BackCountry X, Adrenaline
  • 35b
    415129370 Gauge Ring. Package-BackCountry, BackCountry X, Adrenaline
    Gauge Ring. Package-BackCountry, BackCountry X, Adrenaline
  • 35c
    415129349 Lens
    Lens
  • 57
    414644300 Dart
    Dart
  • 58
    293450275 Insert
    Insert
  • 59
    508000769 Seal
    Seal
  • 60
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 61
    514055100 Tab Lock
    Tab Lock
  • 62
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 63
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 64
    515176358 Ground Wire
    Ground Wire
  • 65
    515176366 Air Temperature Sensor
    Air Temperature Sensor
  • 66
    515177066 Clip
    Clip
  • 67
    515177134 Connector Plate
    Connector Plate
  • 69
    515177147 Housing Plate
    Housing Plate
  • 70
    515177154 Double Switch Module
    Double Switch Module
  • 71
    515177193 Cap
    Cap
  • 72
    515177208 Battery/Starter Wire
    Battery/Starter Wire
  • 74
    515177362 Kill Switch. Includes 74 To 74a
    Kill Switch. Includes 74 To 74a
  • 74A
    515175232 Male Terminal
    Male Terminal
  • 76
    515177234 Compressor Module
    Compressor Module
  • 77
    515177264 Battery Support
    Battery Support
  • 78
    515177266 Battery Strip
    Battery Strip
  • 79
    515177272 Capacitor
    Capacitor
  • 80
    515177289 Ground Wire
    Ground Wire
  • 81
    515177310 Kill Switch Support
    Kill Switch Support
  • 82
    515177400 12 Volts Outlet Harness
    12 Volts Outlet Harness
  • 83
    415129879 Protector Tube
    Protector Tube
  • 88
    515177576 Fuse Battery Wire
    Fuse Battery Wire
  • 91
    515177676 Housing. Package-BackCountry, Adrenaline
    Housing. Package-BackCountry, Adrenaline
  • 91
    515177677 Housing. Package-X-RS, XRS, X, BackCountry X
    Housing. Package-X-RS, XRS, X, BackCountry X
  • 91
    515178197 Housing. Enduro
    Housing. Enduro
  • 98
    515177758 Module. Package-BackCountry, BackCountry X
    Module. Package-BackCountry, BackCountry X
  • 98
    515177759 MODULE. Package-Adrenaline, Enduro, X, XRS
    MODULE. Package-Adrenaline, Enduro, X, XRS
  • 100
    515177813 Temperature Sensor
    Temperature Sensor
  • 102
    515177837 Visor Harness
    Visor Harness
  • 103
    515177984 Main Harness. 600HO E-TEC Except Package-Enduro
    Main Harness. 600HO E-TEC Except Package-Enduro
  • 103
    515177985 Main Harness. 800R E-TEC Except Package-Enduro
    Main Harness. 800R E-TEC Except Package-Enduro
  • 103
    515177986 Main Harness. 800R E-TEC Package-Enduro
    Main Harness. 800R E-TEC Package-Enduro
  • 103
    515177987 Main Harness. 600HO E-TEC Package-Enduro
    Main Harness. 600HO E-TEC Package-Enduro
  • 114
    515178052 Groud Wire
    Groud Wire
  • 115
    518325560 Adhesive Patch
    Adhesive Patch
  • 116
    572103300 Cap
    Cap
  • 117
    710000495 Protector Cap
    Protector Cap
  • 119
    710001248 Outlet DC
    Outlet DC
  • 120
    515178049 DESS Switch
    DESS Switch
  • 121
    515178038 Key
    Key
  • 122
    250000741 Screw-Torx Button Head M4 X 8
    Screw-Torx Button Head M4 X 8
  • 123
    410301203 Battery Ass'y, 18 Amperes. 600HO E-TEC, Includes 123 To 123a
    Battery Ass'y, 18 Amperes. 600HO E-TEC, Includes 123 To 123a
  • 123
    415129898 Lead Battery 18 Amperes. 800R E-TEC, Includes 123 To 123a
    Lead Battery 18 Amperes. 800R E-TEC, Includes 123 To 123a
  • 123a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 124
    516006206 Capacitor Decal
    Capacitor Decal
