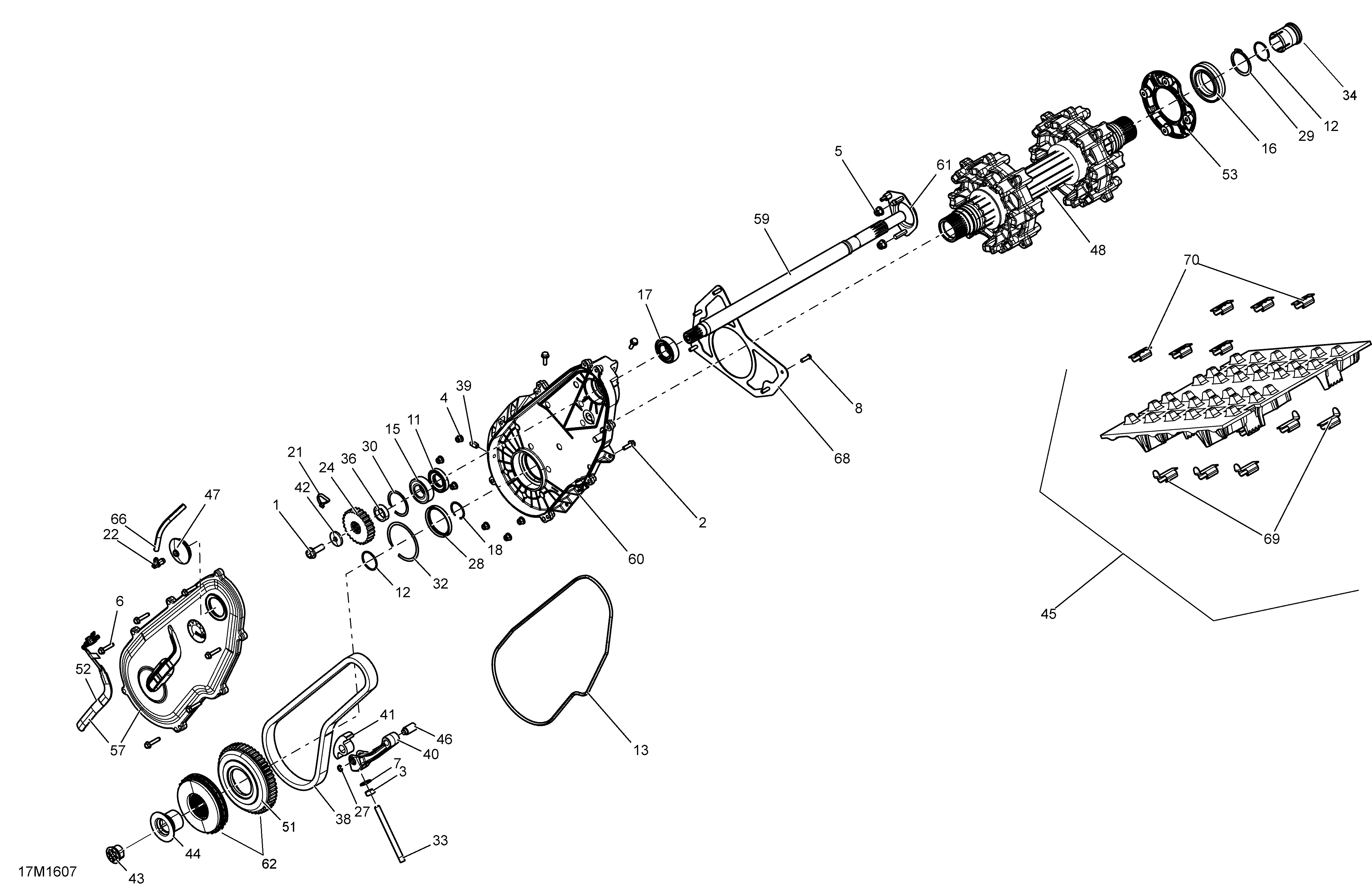

05- Drive System для BRP Ski-Doo MXZ 600 RS - 2016
-
№АртикулНазвание
-
1207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
2207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
4233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
7250200100 Bonded WasherBonded Washer
-
8250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
11293250175 Oil SealOil Seal
-
12293300122 O-RingO-Ring
-
13293300130 Tight SealTight Seal
-
15293350055 Ball BearingBall Bearing
-
16293350059 Ball BearingBall Bearing
-
17293350074 Ball BearingBall Bearing
-
18293370052 CirclipCirclip
-
21414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22414580700 Male ConnectorMale Connector
-
24504139300 Sprocket (Large), 21 TeethSprocket (Large), 21 Teeth
-
27504152282 CirclipCirclip
-
28504152571 SealSeal
-
29504152572 CirclipCirclip
-
30504152576 CirclipCirclip
-
32504152582 CirclipCirclip
-
33504152602 Adjustment ScrewAdjustment Screw
-
34504152619 Magnetic CapMagnetic Cap
-
36504152628 ShimShim
-
38504152630 Drive Chain, 106 LinksDrive Chain, 106 Links
-
39504152854 Magnetic Plug 1/8 - 27 NPTFMagnetic Plug 1/8 - 27 NPTF
-
40504152685 Chain TensionerChain Tensioner
-
41504152739 Slider ChainSlider Chain
-
42504152784 Spring Washer M10Spring Washer M10
-
43504152794 Magnetic AdaptorMagnetic Adaptor
-
44504152802 Threaded CapThreaded Cap
-
45504153342 Track Ass'y 15'' X 128'' X 1.7R''Track Ass'y 15'' X 128'' X 1.7R''
-
46504152841 Tensioner AxleTensioner Axle
-
47504152860 CapCap
-
48504153084 Drive Axle Ass'yDrive Axle Ass'y
-
51504152892 49 Teeth Sprocket49 Teeth Sprocket
-
52504152896 Rotation SensorRotation Sensor
-
53504152949 Housing BearingHousing Bearing
-
57504153151 Casting CoverCasting Cover
-
57504153410 Chaincase Cover Ass'yChaincase Cover Ass'y
-
59504153166 CountershaftCountershaft
-
60504153405 ChaincaseChaincase
-
61504153185 Bearing HousingBearing Housing
-
62504153196 Sprocket, 49 TeethSprocket, 49 Teeth
-
66415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
68518325816 PlatePlate
-
69415129528 Track GuideTrack Guide
-
70415129529 CleatCleat
