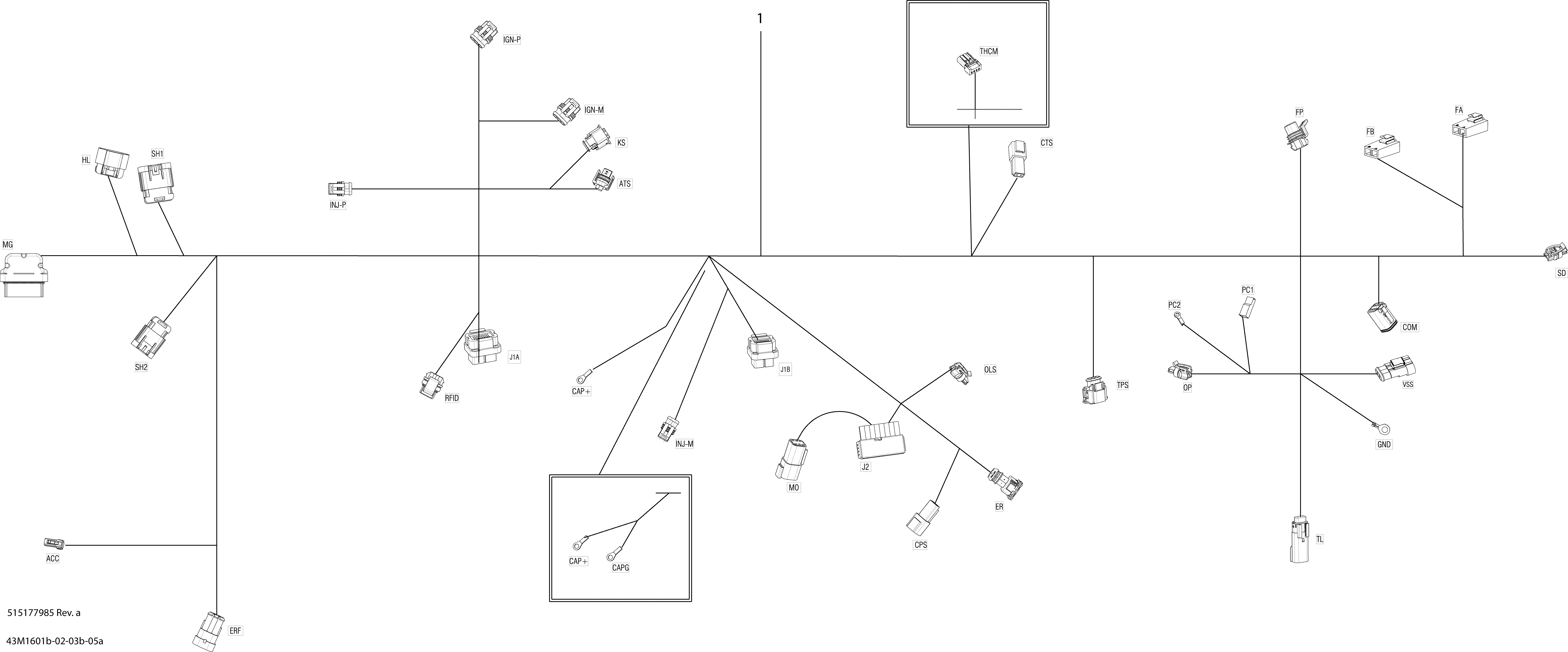

10- Electrical Harness для BRP Ski-Doo FREERIDE - 2016
-
№АртикулНазвание
-
1515177985 Main Harness. Includes 1 To VSSMain Harness. Includes 1 To VSS
-
ACC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ACC515175231 Female TerminalFemale Terminal
-
ATS515176890 Female Terminal HousingFemale Terminal Housing
-
ATS710001163 Wire SealWire Seal
-
ATS710001164 Female TerminalFemale Terminal
-
CAP+515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
CAP+515177799 Terminal RingTerminal Ring
-
CAPG515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
CAPG515177799 Terminal RingTerminal Ring
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM278001665 Female TerminalFemale Terminal
-
COM278000632 Female TerminalFemale Terminal
-
CPS409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
CPS409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CPS278000631 Male TerminalMale Terminal
-
CTS409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
CTS409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CTS278000631 Male TerminalMale Terminal
-
ER415128500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
ER415128501 SealSeal
-
ER278000998 Female TerminalFemale Terminal
-
ERF710000568 HousingHousing
-
ERF515176621 Wire SealWire Seal
-
ERF515176164 Male TerminalMale Terminal
-
FA710000992 ClipClip
-
FA409004000 Fuse HolderFuse Holder
-
FA409004200 Female TerminalFemale Terminal
-
FB710000992 ClipClip
-
FB278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
FB409004000 Fuse HolderFuse Holder
-
FB409004200 Female TerminalFemale Terminal
-
FB409011600 Female TerminalFemale Terminal
-
FP710001132 HousingHousing
-
FP710001133 LockLock
-
FP278001482 SealSeal
-
FP278001481 Female TerminalFemale Terminal
-
GND278001392 Open BarrelOpen Barrel
-
HL515177296 Female HousingFemale Housing
-
HL710001332 Seal WireSeal Wire
-
HL710001228 TerminalTerminal
-
IGN_M409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGN_M278001013 Wire SealWire Seal
-
IGN_M278001014 Female TerminalFemale Terminal
-
IGN_P409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGN_P278001013 Wire SealWire Seal
-
IGN_P278001014 Female TerminalFemale Terminal
-
INJ_M409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INJ_M278001013 Wire SealWire Seal
-
INJ_M278001014 Female TerminalFemale Terminal
-
INJ_P409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INJ_P278001013 Wire SealWire Seal
-
INJ_P278001014 Female TerminalFemale Terminal
-
J1A515176342 Female Terminal Housing, 34 CircuitsFemale Terminal Housing, 34 Circuits
-
J1A515175812 PlugPlug
-
J1A515176348 Female TerminalFemale Terminal
-
J1A515176541 Female TerminalFemale Terminal
-
J1B515176341 Female Terminal Housing, 26 CircuitsFemale Terminal Housing, 26 Circuits
-
J1B515175812 PlugPlug
-
J1B515176348 Female TerminalFemale Terminal
-
J1B515176541 Female TerminalFemale Terminal
-
J2515176340 Female Terminal Housing, 16 CircuitsFemale Terminal Housing, 16 Circuits
-
J2278000999 Wire SealWire Seal
-
J2415128501 SealSeal
-
J2278000998 Female TerminalFemale Terminal
-
KS278002520 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
KS415128501 SealSeal
-
KS278000998 Female TerminalFemale Terminal
-
MG515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
MG515175802 Retainer BlockRetainer Block
-
MG515175812 PlugPlug
-
MG710000399 Female HousingFemale Housing
-
MG515175803 Wire SealWire Seal
-
MG515175806 Female TerminalFemale Terminal
-
MG710001131 Female TerminalFemale Terminal
-
MO270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
MO278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
MO278000631 Male TerminalMale Terminal
-
OLS515177192 Female HousingFemale Housing
-
OLS710001163 Wire SealWire Seal
-
OLS710001164 Female TerminalFemale Terminal
-
OP515177192 Female HousingFemale Housing
-
OP710001332 Seal WireSeal Wire
-
OP710000925 TerminalTerminal
-
PC1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
PC1409010100 Female TerminalFemale Terminal
-
PC2515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
PC2515175504 Ring TerminalRing Terminal
-
RFID710001161 HousingHousing
-
RFID710001163 Wire SealWire Seal
-
RFID710001164 Female TerminalFemale Terminal
-
SD515177192 Female HousingFemale Housing
-
SD710001332 Seal WireSeal Wire
-
SD710000925 TerminalTerminal
-
SH1710001929 Housing, PackardHousing, Packard
-
SH1710001225 CapCap
-
SH1710001233 SealSeal
-
SH1710001332 Seal WireSeal Wire
-
SH1710001224 TerminalTerminal
-
SH1710001223 TerminalTerminal
-
SH2710001927 HousingHousing
-
SH2710001233 SealSeal
-
SH2710001224 TerminalTerminal
-
THCM515177048 Female Terminal Housing, 4 CircuitFemale Terminal Housing, 4 Circuit
-
THCM515177051 Lock, 4 CircuitsLock, 4 Circuits
-
THCM515177050 SealSeal
-
THCM515177049 Female TerminalFemale Terminal
-
TL515178023 HousingHousing
-
TL515178013 Male TerminalMale Terminal
-
TPS278002521 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
TPS415128501 SealSeal
-
TPS278000998 Female TerminalFemale Terminal
-
VSS710000992 ClipClip
-
VSS710000568 HousingHousing
-
VSS515176621 Wire SealWire Seal
-
VSS515176164 Male TerminalMale Terminal
