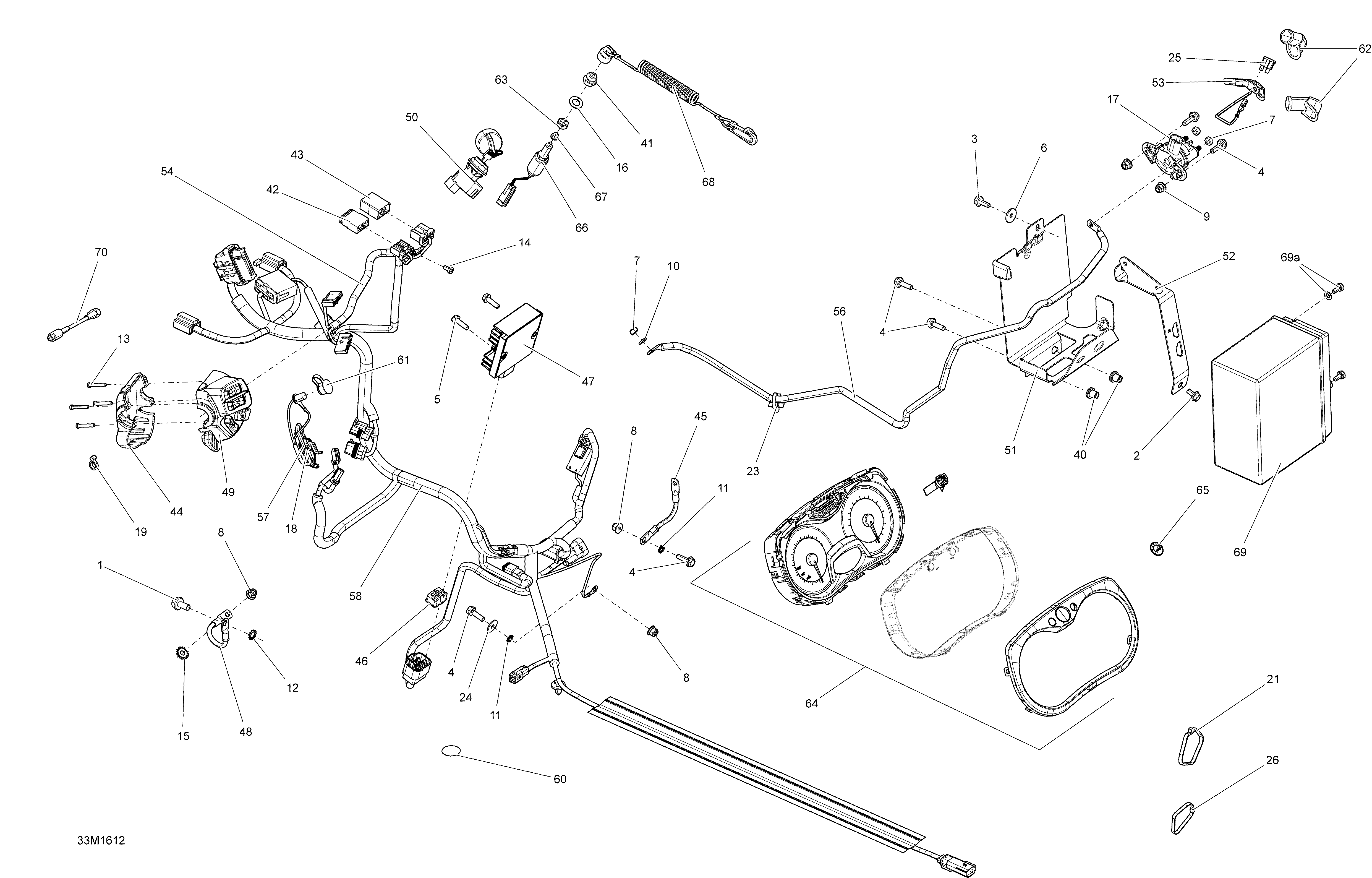

10- Electrical System для BRP Ski-Doo EXPEDITION - SPORT 2-STROKE - 2016
-
№АртикулНазвание
-
1207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6224061201 Flat WasherFlat Washer
-
7232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10234061410 Flat Washer 6 mmFlat Washer 6 mm
-
11234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
12234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
13250000263 Torx Screw #8-18Torx Screw #8-18
-
14250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
15250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
16250200084 Flat WasherFlat Washer
-
17278003012 Starter RelayStarter Relay
-
18293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
19293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
23293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
24250200082 Flat WasherFlat Washer
-
25410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40293450275 InsertInsert
-
42515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
43515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
44515175926 Housing Switch PlateHousing Switch Plate
-
45515176358 Ground WireGround Wire
-
46515176681 LockLock
-
47515176699 Voltage RegulatorVoltage Regulator
-
48515176745 Ground WireGround Wire
-
49515177021 LH HousingLH Housing
-
50515177063 Ignition SwirchIgnition Swirch
-
51515177264 Battery SupportBattery Support
-
52515177266 Battery StripBattery Strip
-
53515177576 Fuse Battery WireFuse Battery Wire
-
54515177609 Steering Wiring HarnessSteering Wiring Harness
-
56515177730 Battery/Starter WireBattery/Starter Wire
-
57515177837 Visor HarnessVisor Harness
-
58515177979 Main HarnessMain Harness
-
60518325560 Adhesive PatchAdhesive Patch
-
61572103300 CapCap
-
62710000495 Protector CapProtector Cap
-
63732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
64415129355 Speedometer ButtonSpeedometer Button
-
64415129349 LensLens
-
64515177279 IndicatorIndicator
-
64415129348 Gauge RingGauge Ring
-
65516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
66515175653 Brake SwitchBrake Switch
-
67570151100 Plunger CapPlunger Cap
-
68515178145 Cap AssemblyCap Assembly
-
69410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
69a250000282 Battery Bolt KitBattery Bolt Kit
