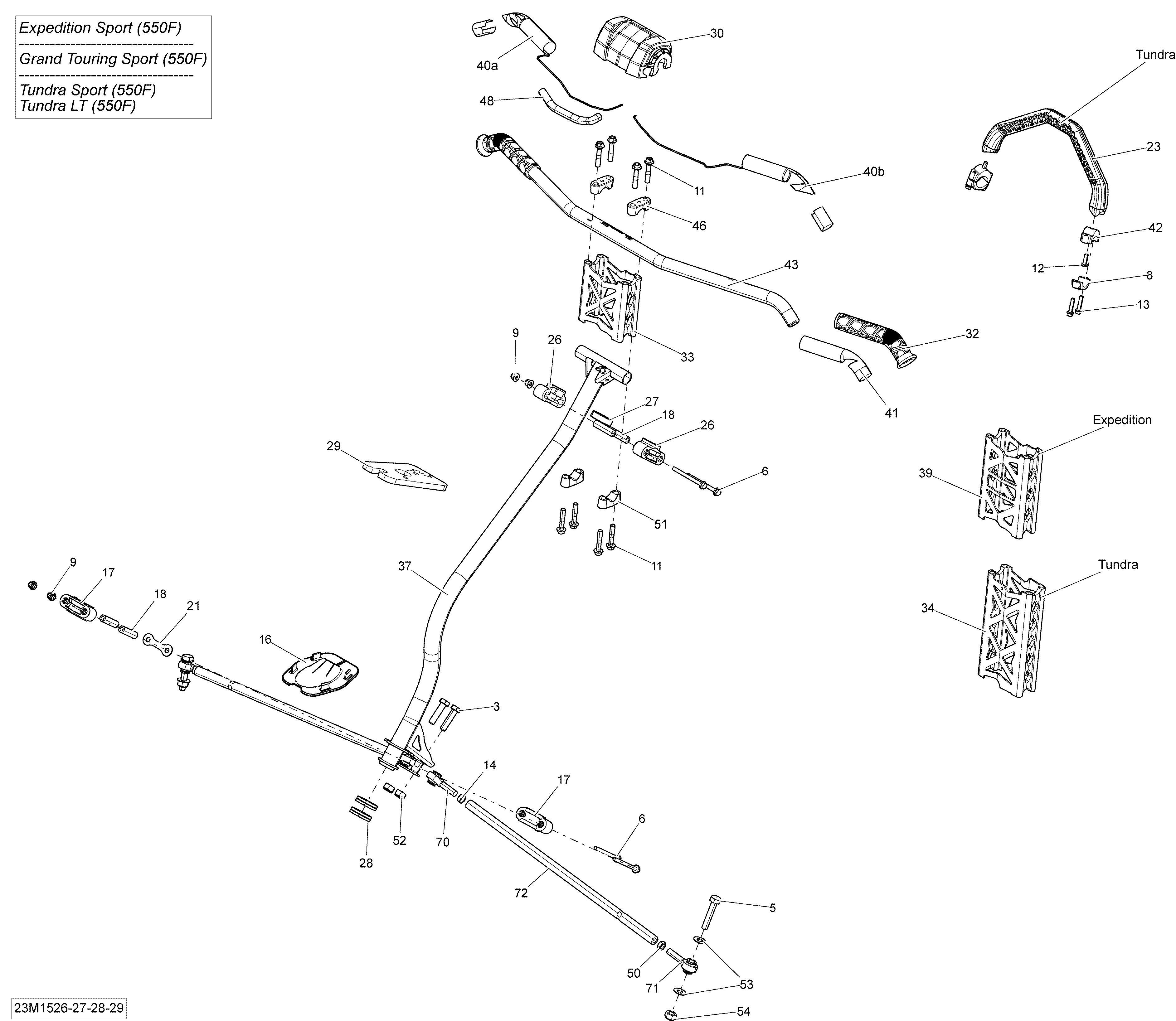

07- Steering _23M1529 для BRP Ski-Doo Tundra LT 550F XU-154 - 2015

  • №
    Артикул
    Название
  • 3
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 5
    207004544 Hex. Screw M10 X 45
    Hex. Screw M10 X 45
  • 6
    207667086 Hex. Flanged Screw M6 x 70. M6
    Hex. Flanged Screw M6 x 70. M6
  • 6
    207686534 Hex. Flanged Screw M8 x 65. M8
    Hex. Flanged Screw M8 x 65. M8
  • 8
    219800081 Clamp
    Clamp
  • 9
    233261416 Elastic Flanged Nut M6. M6
    Elastic Flanged Nut M6. M6
  • 9
    233281414 Hex. Flanged Elastic Nut M8. M8
    Hex. Flanged Elastic Nut M8. M8
  • 11
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 12
    250000402 Torx-Truss Screw M6 X 18
    Torx-Truss Screw M6 X 18
  • 13
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 14
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 17
    506152217 Lower Half-Housing
    Lower Half-Housing
  • 18
    506152297 Housing Bushing. Upper Housing Bushing
    Housing Bushing. Upper Housing Bushing
  • 18
    506152388 Lower Housing Bushing. Lower Housing Bushing
    Lower Housing Bushing. Lower Housing Bushing
  • 21
    506152389 Stopper Plate
    Stopper Plate
  • 23
    506152460 Moulding Strap
    Moulding Strap
  • 26
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 27
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 28
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 29
    506152521 Cushion
    Cushion
  • 30
    506152541 Steering Pad
    Steering Pad
  • 32
    506152486 Grip
    Grip
  • 34
    860200821 Extension Kit
    Extension Kit
  • 37
    506152586 Black Main Tube
    Black Main Tube
  • 40a
    506152370 RH Heating Element
    RH Heating Element
  • 40b
    506152603 Heating Element 28 WATT
    Heating Element 28 WATT
  • 41
    506152611 Insulant
    Insulant
  • 42
    506152703 Black Support Plate
    Black Support Plate
  • 43
    506152709 Clear Handle Bar
    Clear Handle Bar
  • 46
    506152750 Steering Support
    Steering Support
  • 48
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 50
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 51
    506152751 Steering Support
    Steering Support
  • 52
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 53
    506152582 Washer
    Washer
  • 54
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
  • 70
    506152081 LH Thread Ball Joint
    LH Thread Ball Joint
  • 71
    506152019 RH Thread Ball Joint
    RH Thread Ball Joint
  • 72
    506152377 Tie Rod
    Tie Rod
