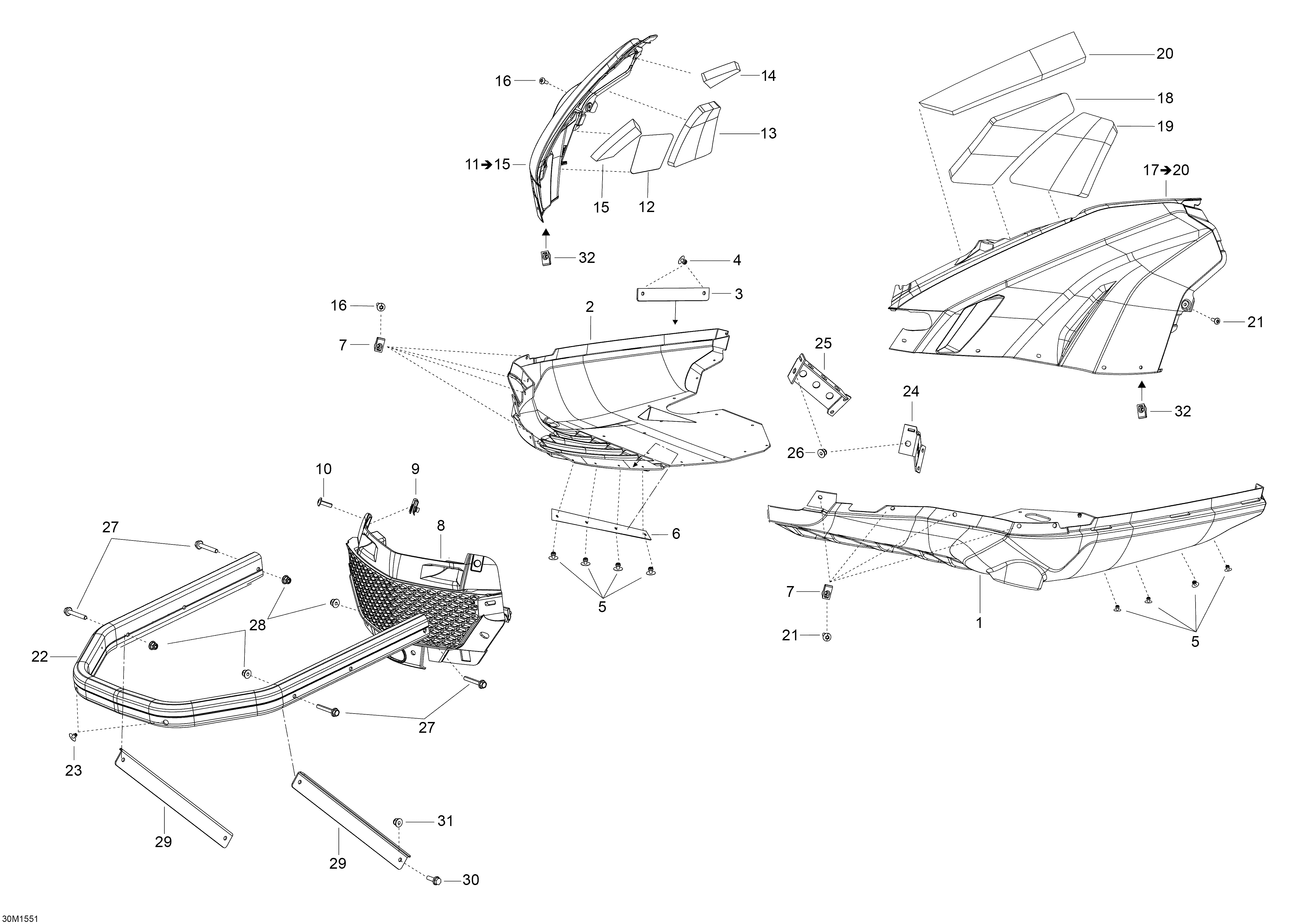

09- Bottom Pan _30M1551 для BRP Ski-Doo Skandic WT 900 ACE - 2015
-
№АртикулНазвание
-
1502007436 LH Lower Bottom PanLH Lower Bottom Pan
-
2502006917 Black Bottom-Pan Lower RH.Black Bottom-Pan Lower RH.
-
3502007255 Heat Isolation PlateHeat Isolation Plate
-
4293150211 RivetRivet
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6502007226 Support PlateSupport Plate
-
7250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8502007140 Front GrillFront Grill
-
9250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
11502007292 Black Bottom Pan Ass'y RH. Includes 11 To 15Black Bottom Pan Ass'y RH. Includes 11 To 15
-
12502007133 InsulatorInsulator
-
13502007132 InsulatorInsulator
-
14502007008 InsulatorInsulator
-
15502007009 InsulatorInsulator
-
16250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
17502007294 Black Bottom Pan Ass'y LH. Includes 17 To 20Black Bottom Pan Ass'y LH. Includes 17 To 20
-
18502007088 InsulatorInsulator
-
19502007131 InsulatorInsulator
-
20502007185 InsulatorInsulator
-
21250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
22502007469 BumperBumper
-
23293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
24502007137 Bottom Pan Fastener LHBottom Pan Fastener LH
-
25502007138 Bottom Pan Fastener RHBottom Pan Fastener RH
-
26605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
27207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29502006927 Bumper SupportBumper Support
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
