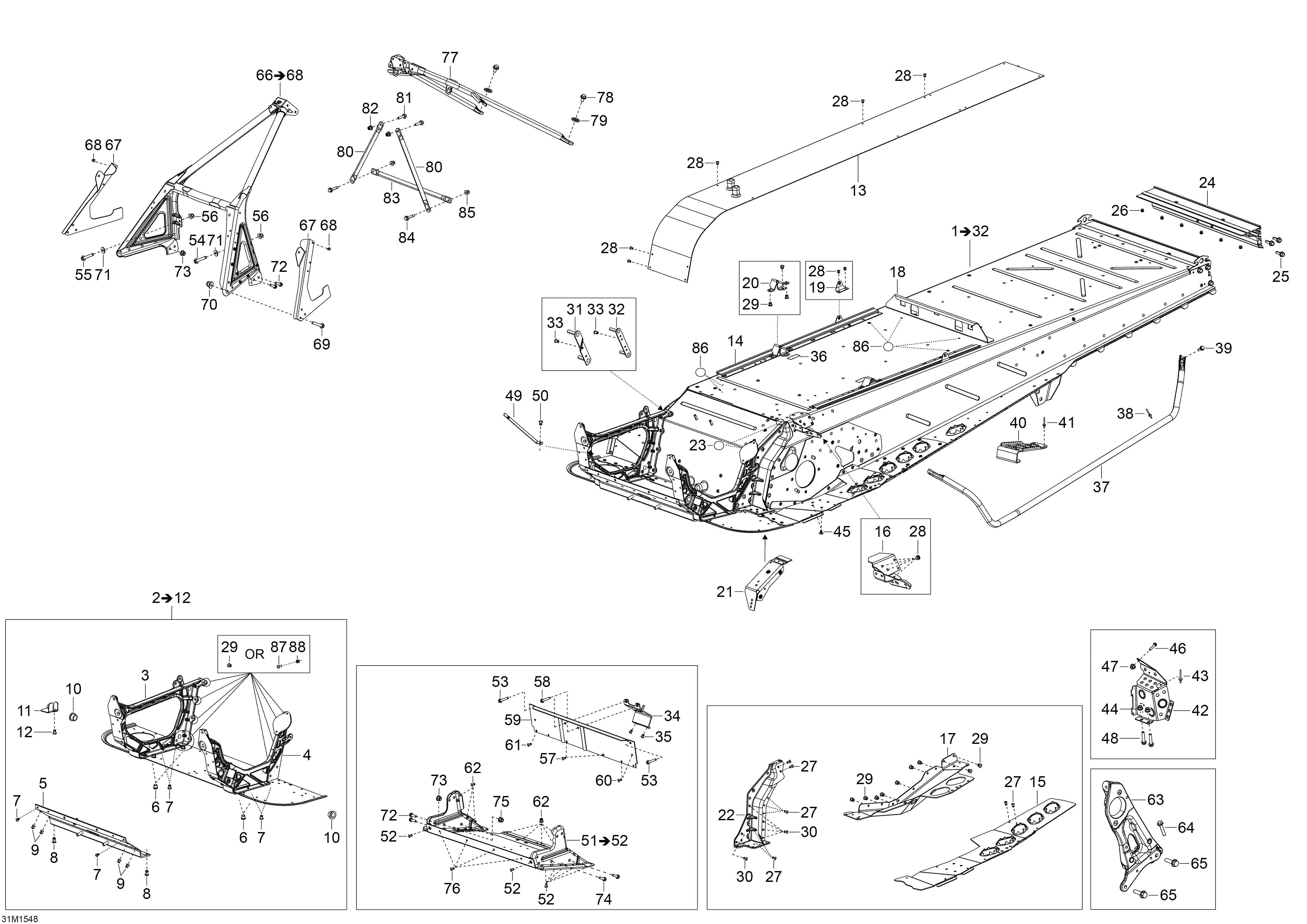

09- Frame _31M1548 для BRP Ski-Doo Skandic WT 600 E-TEC - 2015
-
№АртикулНазвание
-
1518328201 Frame. Includes 1 To 30Frame. Includes 1 To 30
-
2518328186 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg CushionLeg Cushion
-
11518328194 Muffler SupportMuffler Support
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13509000626 RadiatorRadiator
-
14518326107 Fastening railFastening rail
-
15518326895 Footrest LHFootrest LH
-
15518326896 Footrest RHFootrest RH
-
16605355235 Fastening BracketFastening Bracket
-
18518325986 Battery support plateBattery support plate
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
20518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
21518326430 Clinch nut plateClinch nut plate
-
22518325524 Frame Corner LHFrame Corner LH
-
22518328024 Frame Corner RHFrame Corner RH
-
23518325560 Adhesive PatchAdhesive Patch
-
24518327194 Rear ProfileRear Profile
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
26293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150183 RivetRivet
-
31518326123 Gearbox Front PlateGearbox Front Plate
-
32518326124 Gearbox Rear PlateGearbox Rear Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518325943 MAG Engine SupportMAG Engine Support
-
35293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
36518326357 Rubber CoverRubber Cover
-
37518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
37518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
38390909100 Avex RivetAvex Rivet
-
39207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
40520000492 FootrestFootrest
-
41390909100 Avex RivetAvex Rivet
-
42518326671 Toe Hook LHToe Hook LH
-
42518326672 Toe Hook RHToe Hook RH
-
43390909200 Avex RivetAvex Rivet
-
44605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
45414644300 DartDart
-
46207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
47233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
48250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
49514054616 Spring BracketSpring Bracket
-
50390909100 Avex RivetAvex Rivet
-
51518326213 S Module. Includes 51 To 52S Module. Includes 51 To 52
-
52390909200 Avex RivetAvex Rivet
-
53210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
54207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
55207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
56233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
57293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
58207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
59518325620 Support PlateSupport Plate
-
60390909100 Avex RivetAvex Rivet
-
61293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
62390909200 Avex RivetAvex Rivet
-
63518328434 Pulley SupportPulley Support
-
64207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
65207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
66518326754 Front Member Ass'y. Includes 66 To 68Front Member Ass'y. Includes 66 To 68
-
67502007077 Bumper Fastener LHBumper Fastener LH
-
67502007078 Bumper Fastener RHBumper Fastener RH
-
68390909200 Avex RivetAvex Rivet
-
69207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
71224061201 Flat WasherFlat Washer
-
72207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
73233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
74207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
75233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
76390909200 Avex RivetAvex Rivet
-
77518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
78207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
80518325114 Upper Column SupportUpper Column Support
-
81207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
82233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
83518325115 Center Column SupportCenter Column Support
-
84207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
85233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
86518325560 Adhesive PatchAdhesive Patch
-
87207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
88233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
