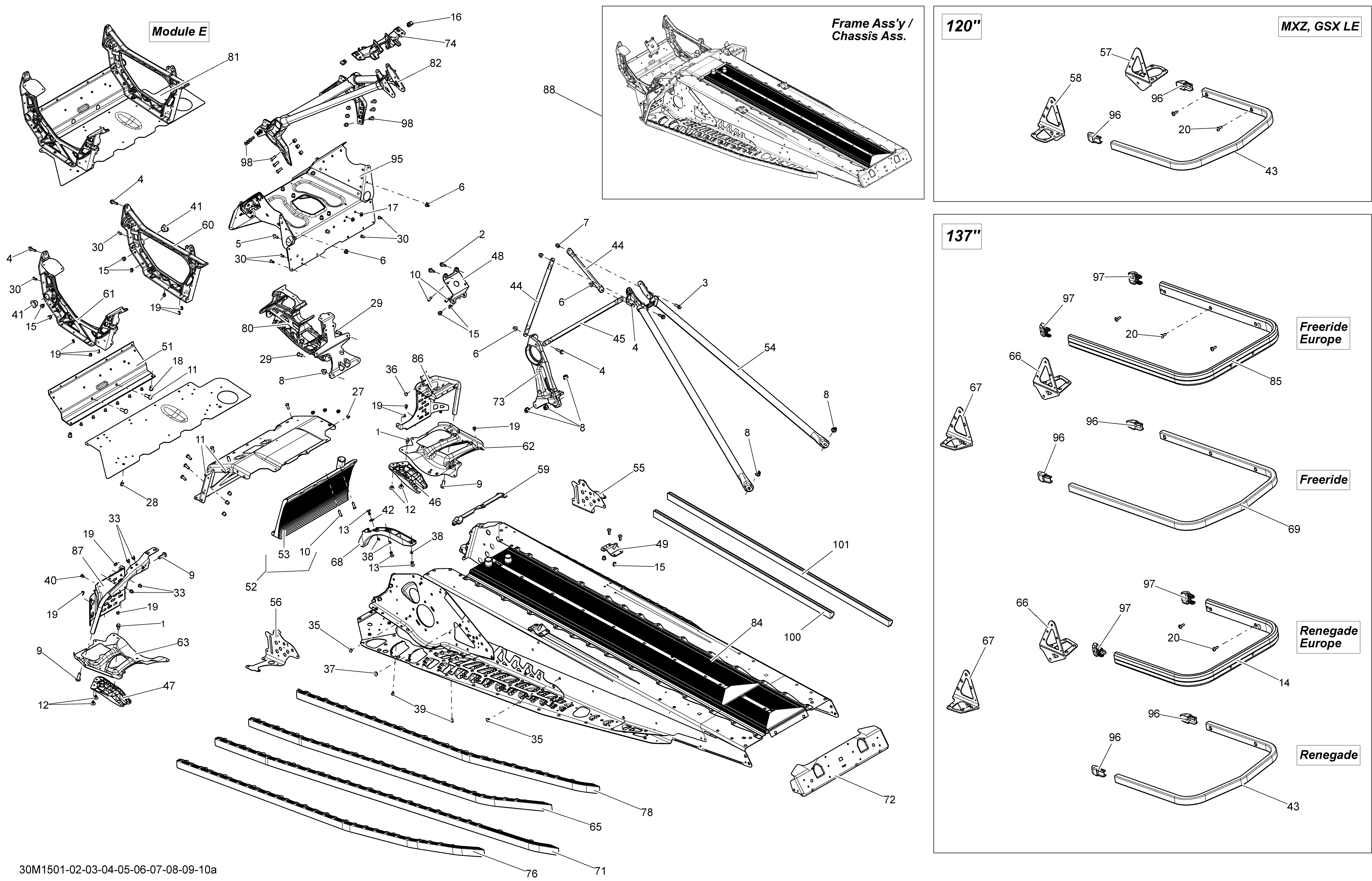

09- Frame _30M1509 для BRP Ski-Doo Renegade Backcountry X 800RETEC XS137 - 2015
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
10250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
11250300038 Clinch StudClinch Stud
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14518326414 Black Rear BumperBlack Rear Bumper
-
15293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
16250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
17293730053 Black Dart 5 mmBlack Dart 5 mm
-
18293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
19293150144 Stavex RivetStavex Rivet
-
20250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
27293150146 Henrob RivetHenrob Rivet
-
28293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
29293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
30293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
33293450268 InsertInsert
-
35293730047 Black Dart 8 mmBlack Dart 8 mm
-
36293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
37293730060 Black Dart 10 mmBlack Dart 10 mm
-
38390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
39390909100 Avex RivetAvex Rivet
-
40390909200 Avex RivetAvex Rivet
-
41505073317 Leg CushionLeg Cushion
-
43518325481 Black Rear BumperBlack Rear Bumper
-
44518325114 Upper Column SupportUpper Column Support
-
45518325115 Center Column SupportCenter Column Support
-
46518325782 RH DeflectorRH Deflector
-
47518325783 LH DeflectorLH Deflector
-
48518325943 MAG Engine SupportMAG Engine Support
-
49518325973 RH Rear BaseRH Rear Base
-
49518325974 LH Rear BaseLH Rear Base
-
51518326198 Front MemberFront Member
-
52518326485 Front RadiatorFront Radiator
-
53518326486 Front RadiatorFront Radiator
-
54518326559 Rear MemberRear Member
-
59518326656 SealSeal
-
60518326795 RH MemberRH Member
-
61518326796 LH MemberLH Member
-
62518326937 RH ReinforcementRH Reinforcement
-
63518326938 LH ReinforcementLH Reinforcement
-
66518326954 RH Suspension BracketRH Suspension Bracket
-
67518326955 LH Suspension BracketLH Suspension Bracket
-
71518327093 RH RollerRH Roller
-
71518327094 LH RollerLH Roller
-
72518327105 Rear CapRear Cap
-
73518327460 Pulley SupportPulley Support
-
74518327145 Sub A SupportSub A Support
-
80518327487 Front Suspension Support. Included With 518328320 S ModuleFront Suspension Support. Included With 518328320 S Module
-
81518327567 Front E ModuleFront E Module
-
82518327565 Front MemberFront Member
-
84518327588 Rear Radiator 137''Rear Radiator 137''
-
86518327841 RH StirupRH Stirup
-
87518327937 LH StirupLH Stirup
-
88415129914 Black Frame Ass'y 137''. Model-Black-BlackBlack Frame Ass'y 137''. Model-Black-Black
-
88415129919 Orange Frame Ass'y 137''. Model-Orange-BlackOrange Frame Ass'y 137''. Model-Orange-Black
-
95518328320 Cross Member S Module. Include 518327487 Front Susp SupportCross Member S Module. Include 518327487 Front Susp Support
-
96520000840 Black CapBlack Cap
-
97520000965 Black RH CapBlack RH Cap
-
97520000964 Black LH CapBlack LH Cap
-
98293150146 Henrob RivetHenrob Rivet
