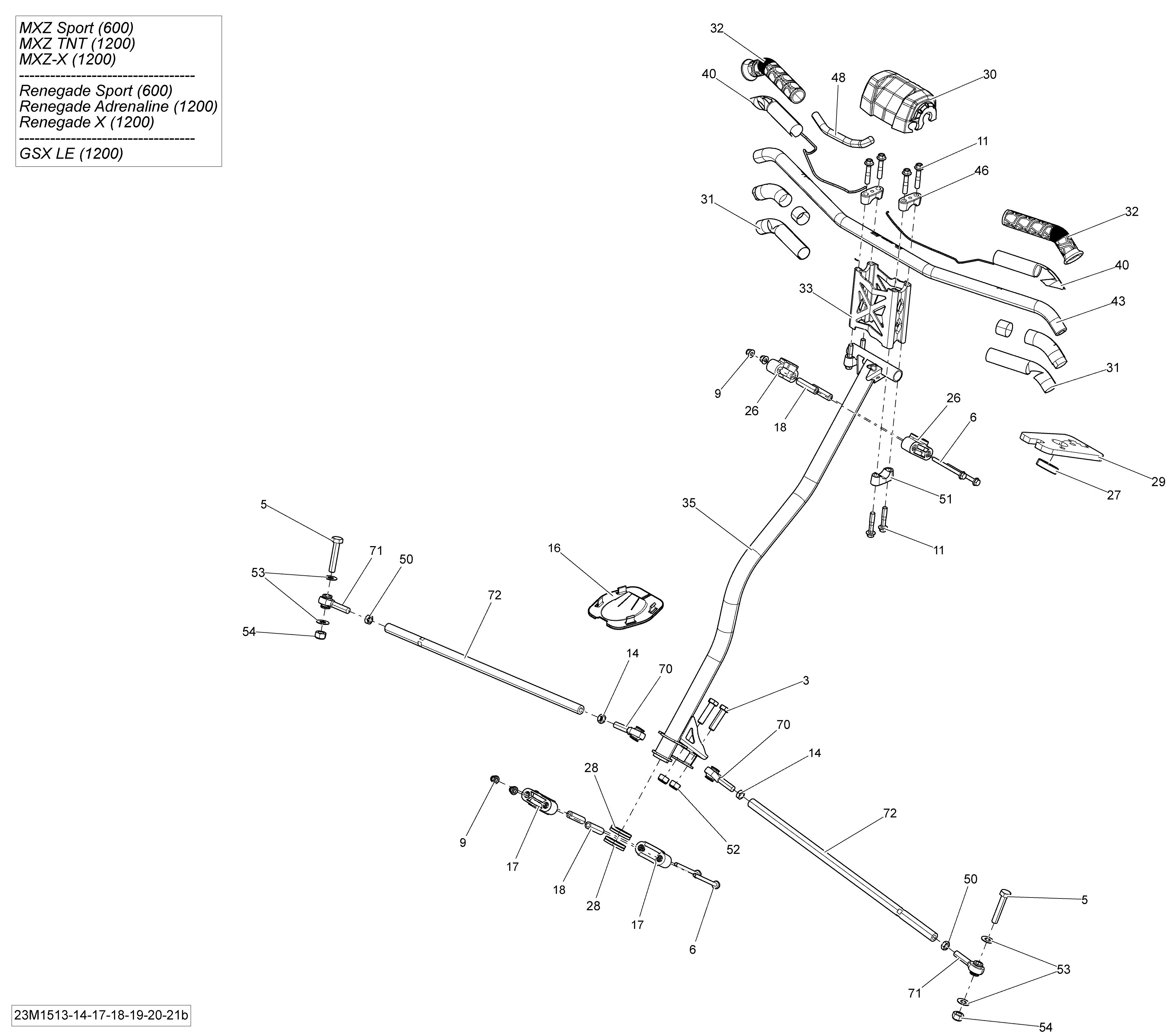

07- Steering _23M1520 для BRP Ski-Doo Renegade Adrenaline 1200 XR137 - 2015

  • №
    Артикул
    Название
  • 3
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 5
    207005554 Hex Screw M10 X 55
    Hex Screw M10 X 55
  • 6
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 9
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 11
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 14
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 16
    506152163 Plate
    Plate
  • 17
    506152217 Lower Half-Housing
    Lower Half-Housing
  • 18
    506152297 Housing Bushing
    Housing Bushing
  • 26
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 27
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 28
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 29
    506152521 Cushion
    Cushion
  • 30
    506152541 Steering Pad
    Steering Pad
  • 31
    506152548 Insulant
    Insulant
  • 32
    506152560 Grip 148mm
    Grip 148mm
  • 33
    506152570 Black Handlebar Extension
    Black Handlebar Extension
  • 35
    506152585 Black Main Tube
    Black Main Tube
  • 40
    506152758 Heating Element 32 Watt
    Heating Element 32 Watt
  • 43
    506152709 Clear Handle Bar
    Clear Handle Bar
  • 46
    506152750 Steering Support
    Steering Support
  • 48
    515175830 Low Temperature Tubing 1/2''
    Low Temperature Tubing 1/2''
  • 50
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 51
    506152751 Steering Support
    Steering Support
  • 52
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 53
    506152582 Washer
    Washer
  • 54
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
  • 70
    506152081 LH Thread Ball Joint
    LH Thread Ball Joint
  • 71
    506152684 RH Thread Ball Joint
    RH Thread Ball Joint
  • 72
    506152496 Tie-Rod
    Tie-Rod
