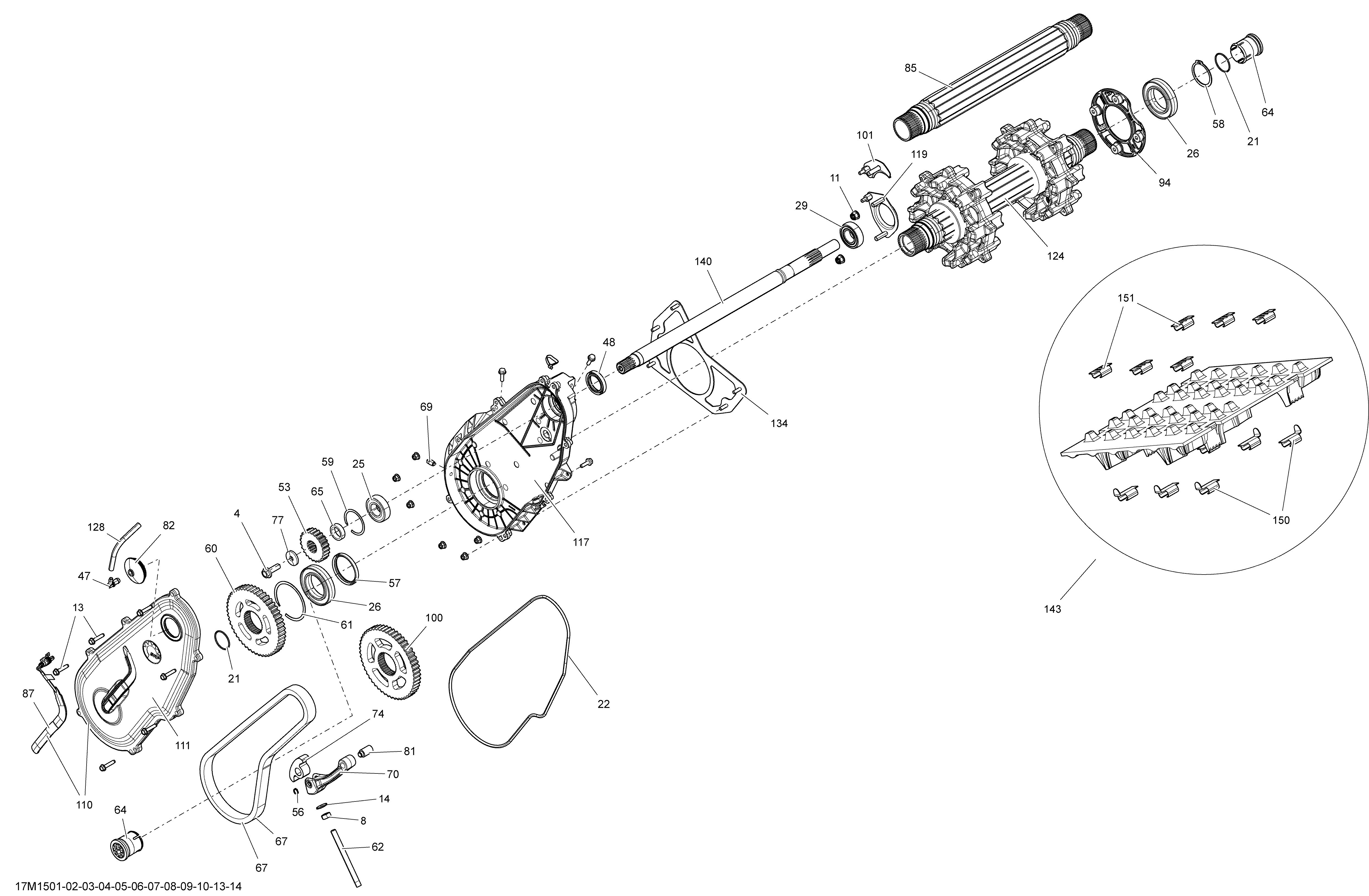

05- Drive System 800RETEC_17M1503 для BRP Ski-Doo MXZ XRS 800RETEC XS-RS120 - 2015

  • №
    Артикул
    Название
  • 4
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 8
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 11
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 14
    250200100 Bonded Washer
    Bonded Washer
  • 21
    293300122 O-Ring
    O-Ring
  • 22
    293300130 O-Ring
    O-Ring
  • 25
    293350055 Ball Bearing
    Ball Bearing
  • 26
    293350059 Ball Bearing
    Ball Bearing
  • 47
    414580700 Male Connector
    Male Connector
  • 48
    415049300 Oil Seal
    Oil Seal
  • 53
    504084300 Sprocket, 25 Teeth (Large). 800R ETEC Europe
    Sprocket, 25 Teeth (Large). 800R ETEC Europe
  • 53
    504148400 Sprocket, 27 Teeth. 800R ETEC Except Europe
    Sprocket, 27 Teeth. 800R ETEC Except Europe
  • 56
    504152282 Circlip
    Circlip
  • 57
    504152571 Seal
    Seal
  • 58
    504152572 Circlip
    Circlip
  • 59
    504152576 Circlip
    Circlip
  • 60
    504152593 Sprocket, 45 Teeth
    Sprocket, 45 Teeth
  • 61
    504152582 Circlip
    Circlip
  • 62
    504152602 Adjustment Screw
    Adjustment Screw
  • 64
    504152619 Magnetic Cap
    Magnetic Cap
  • 65
    504152628 Shim
    Shim
  • 67
    504152629 Drive Chain, 104 Links. 800R ETEC Europe
    Drive Chain, 104 Links. 800R ETEC Europe
  • 67
    504152630 Drive Chain, 106 Links. 800R ETEC Except Europe
    Drive Chain, 106 Links. 800R ETEC Except Europe
  • 69
    504152854 Magnetic Plug
    Magnetic Plug
  • 70
    504152685 Chain Tensioner
    Chain Tensioner
  • 74
    504152739 Slider Chain
    Slider Chain
  • 77
    504152784 Spring Washer M10
    Spring Washer M10
  • 81
    504152841 Tensionner Axle
    Tensionner Axle
  • 82
    504152860 Cap
    Cap
  • 87
    504152896 Sensor
    Sensor
  • 94
    504152949 Housing Bearing
    Housing Bearing
  • 101
    504152974 Bearing Housing
    Bearing Housing
  • 110
    504153335 Cover Ass'y
    Cover Ass'y
  • 111
    504153151 Casting Cover
    Casting Cover
  • 117
    504153333 Chain Case
    Chain Case
  • 123
    504153335 Cover Ass'y
    Cover Ass'y
  • 124
    504153083 Drive Axle Ass'y
    Drive Axle Ass'y
  • 128
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 134
    518325816 Plate
    Plate
  • 143
    504152606 Track Ass'y 15X120X1.2RS. Track 15X120X1.2RS
    Track Ass'y 15X120X1.2RS. Track 15X120X1.2RS
  • 143
    504153100 Track Ass'y 15X120X1.25IR. Track 15X120X1.2IR
    Track Ass'y 15X120X1.25IR. Track 15X120X1.2IR
  • 143
    504153205 Track Ass'y 15'' X 120'' X 1.50''. Track 15X120X1.5RS
    Track Ass'y 15'' X 120'' X 1.50''. Track 15X120X1.5RS
  • 150
    415129528 Track Guide
    Track Guide
  • 151
    415129529 Cleat
    Cleat
