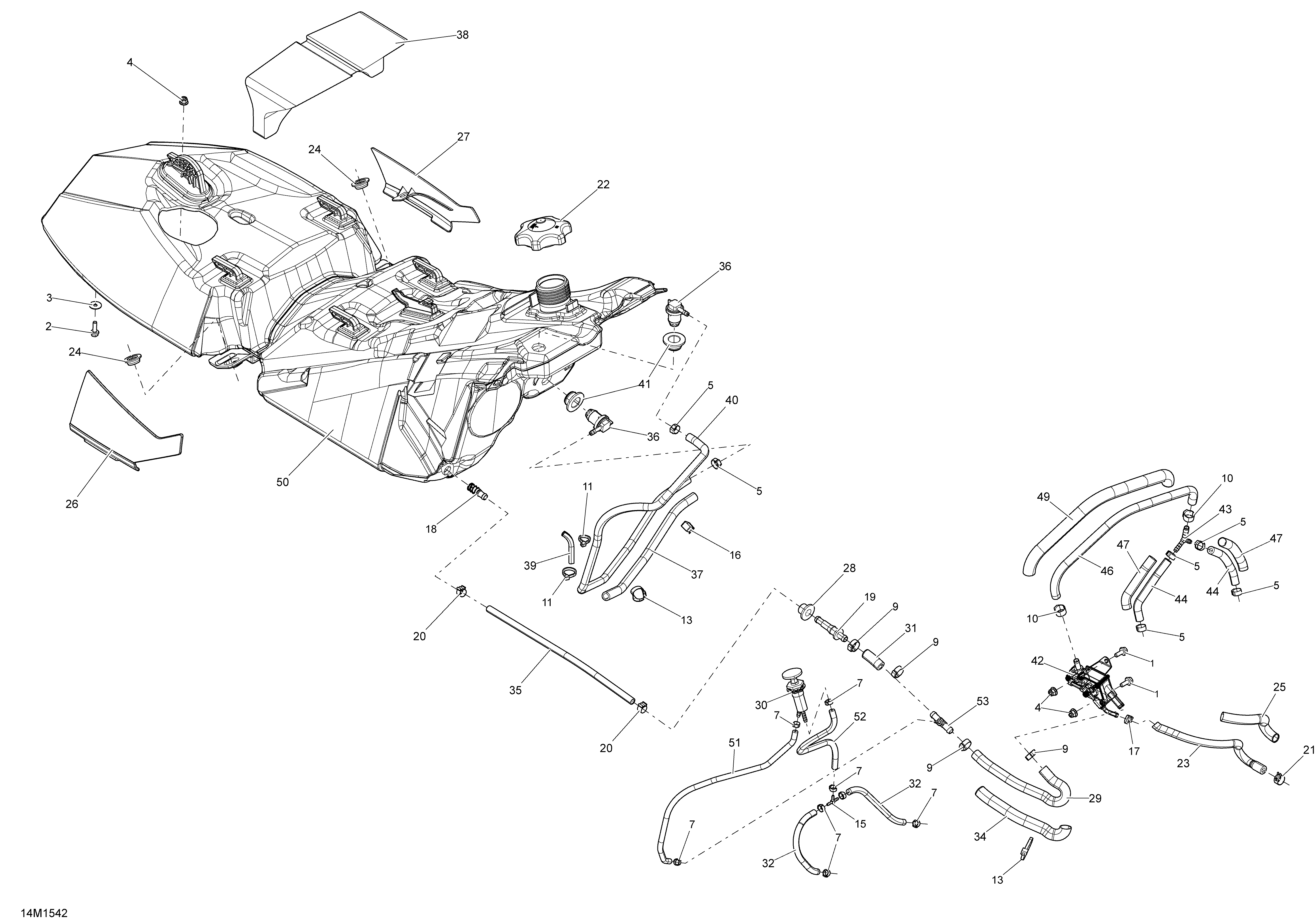

02- Fuel System _14M1542 для BRP Ski-Doo MXZ X-RS 600HOE XS RS - 2015
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3224060201 Flat WasherFlat Washer
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5293650025 Oetiker Gear ClampOetiker Gear Clamp
-
7293650043 Oetiker Gear ClampOetiker Gear Clamp
-
9293650053 Crimp ClampCrimp Clamp
-
10293650125 Oetiker ClampOetiker Clamp
-
11293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15414222400 T-FittingT-Fitting
-
16414227300 ClipClip
-
17414415200 Spring ClampSpring Clamp
-
18414872100 Fuel FilterFuel Filter
-
19414872700 Male ConnectorMale Connector
-
20513033010 Norma Spring ClampNorma Spring Clamp
-
21513033029 Universal Spring ClampUniversal Spring Clamp
-
22513033752 Fuel Tank Cap. North AmericaFuel Tank Cap. North America
-
22513033755 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
23513033111 Formed HoseFormed Hose
-
24513033326 Shoulder BushingShoulder Bushing
-
25409901800 Tubing 13 mmTubing 13 mm
-
26513033418 RH CapRH Cap
-
27513033419 LH CapLH Cap
-
28513033435 GrommetGrommet
-
29513033439 Formed HoseFormed Hose
-
30513033441 PrimerPrimer
-
31513033444 HoseHose
-
32709000665 HoseHose
-
34415080000 Tubing 16 mmTubing 16 mm
-
35513033332 HoseHose
-
36513033517 Male ConnectorMale Connector
-
37409901800 Tubing 13 mmTubing 13 mm
-
38513033528 FoamFoam
-
39414506600 TrimTrim
-
40513033565 HoseHose
-
41513033596 GrommetGrommet
-
42513033669 Fuel PumpFuel Pump
-
43513033672 Y ConnectorY Connector
-
44709000667 HoseHose
-
46709000666 HoseHose
-
47409901800 Tubing 13 mmTubing 13 mm
-
49415080000 Tubing 16 mmTubing 16 mm
-
50513033697 Fuel TankFuel Tank
-
51709000665 HoseHose
-
52709000665 HoseHose
-
53513033756 T-FittingT-Fitting
