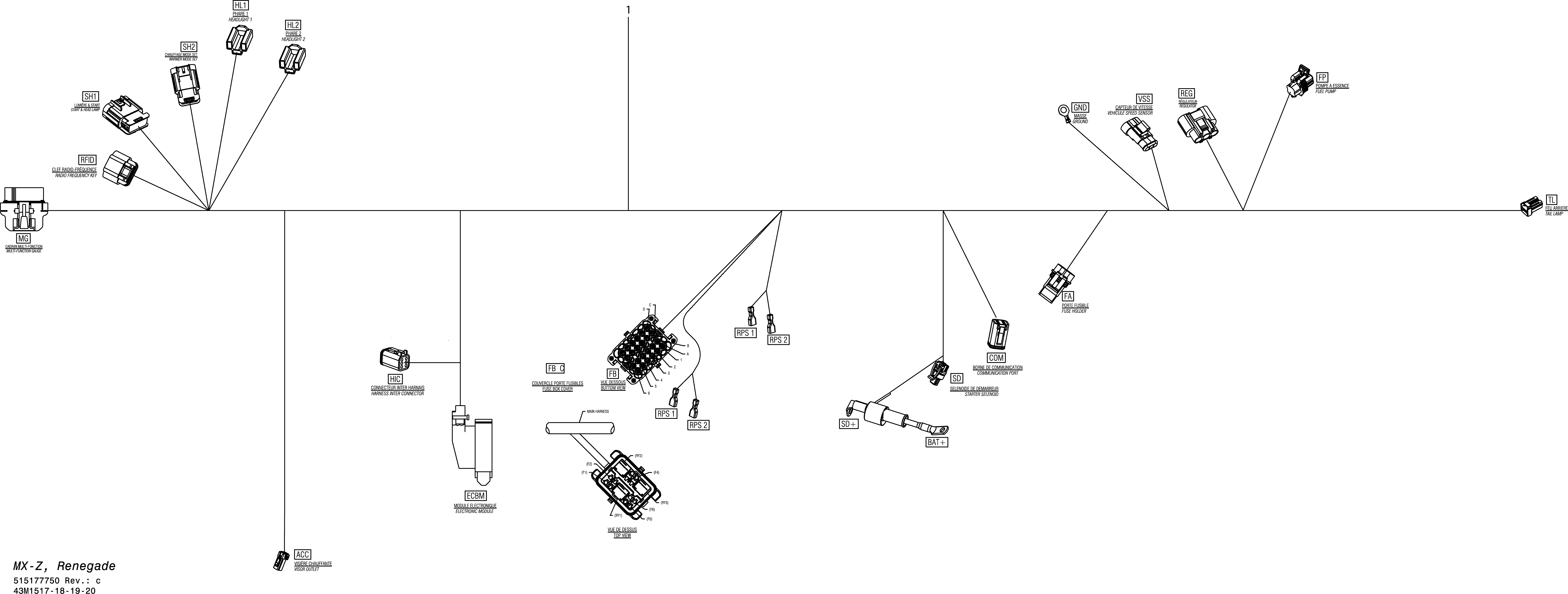

10- Electrical Harness Main_43M1518 для BRP Ski-Doo MXZ TNT 1200 XR120 - 2015
-
№АртикулНазвание
-
1515177750 Main Harness Ass'y. MXZ, RenegadeMain Harness Ass'y. MXZ, Renegade
-
ACC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ACC515175231 Female TerminalFemale Terminal
-
COM278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM278001665 Female TerminalFemale Terminal
-
ECMB515175885 CoverCover
-
ECMB278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
ECMB515175884 LockLock
-
ECMB515175883 LatchLatch
-
ECMB515175886 SealSeal
-
ECMB515177481 Female TerminalFemale Terminal
-
FA710001613 FuseFuse
-
FA278001325 Fuse HolderFuse Holder
-
FA710000357 Female TerminalFemale Terminal
-
F1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F6710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
F2710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F2710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F5710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
F4710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FB278002824 Case Ass'yCase Ass'y
-
RY1710001778 RelayRelay
-
RY2710001778 RelayRelay
-
RY3710001778 RelayRelay
-
FB278000218 Wire SealWire Seal
-
FB278001065 Wire SealWire Seal
-
FB278002578 TerminalTerminal
-
FB515177177 Female TerminalFemale Terminal
-
FB710000918 Female TerminalFemale Terminal
-
FB_C515177671 Fuse Box CoverFuse Box Cover
-
FB_C710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
FB_C710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
FB_C710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
FP710001132 HousingHousing
-
FP710001133 LockLock
-
FP278001482 SealSeal
-
FP278001481 Female TerminalFemale Terminal
-
GND278001392 Open BarrelOpen Barrel
-
HIC278002896 Housing, 6 CircuitsHousing, 6 Circuits
-
HIC515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
HIC293000052 Sealing CapSealing Cap
-
HIC278001665 Female TerminalFemale Terminal
-
HL1515177663 Female HousingFemale Housing
-
HL1515176909 TerminalTerminal
-
HL2515177663 Female HousingFemale Housing
-
HL2515176909 TerminalTerminal
-
MG515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
MG515175802 Retainer BlockRetainer Block
-
MG515175812 PlugPlug
-
MG710000399 Female HousingFemale Housing
-
MG515175803 Wire SealWire Seal
-
MG515175806 Female TerminalFemale Terminal
-
MG710001131 Female TerminalFemale Terminal
-
REG710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
REG710000882 CapCap
-
REG710000881 SealSeal
-
REG710000877 TerminalTerminal
-
RFID515177186 Female HousingFemale Housing
-
RFID710001233 SealSeal
-
RFID710001229 TerminalTerminal
-
RPS1710000082 Female TerminalFemale Terminal
-
RPS2710000082 Female TerminalFemale Terminal
-
SD515177192 Female HousingFemale Housing
-
SD710001332 Seal WireSeal Wire
-
SD710000925 TerminalTerminal
-
SD+515175919 Protector CapProtector Cap
-
SH1710001929 Housing, PackardHousing, Packard
-
SH1710001225 CapCap
-
SH1710001332 Seal WireSeal Wire
-
SH1710001233 SealSeal
-
SH1710001224 TerminalTerminal
-
SH1710001223 TerminalTerminal
-
SH2710001927 HousingHousing
-
SH2710001233 SealSeal
-
SH2710001224 TerminalTerminal
-
TL515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
TL515175231 Female TerminalFemale Terminal
-
VSS710000992 ClipClip
-
VSS710000568 HousingHousing
-
VSS515176621 Wire SealWire Seal
-
VSS515176164 Male TerminalMale Terminal
