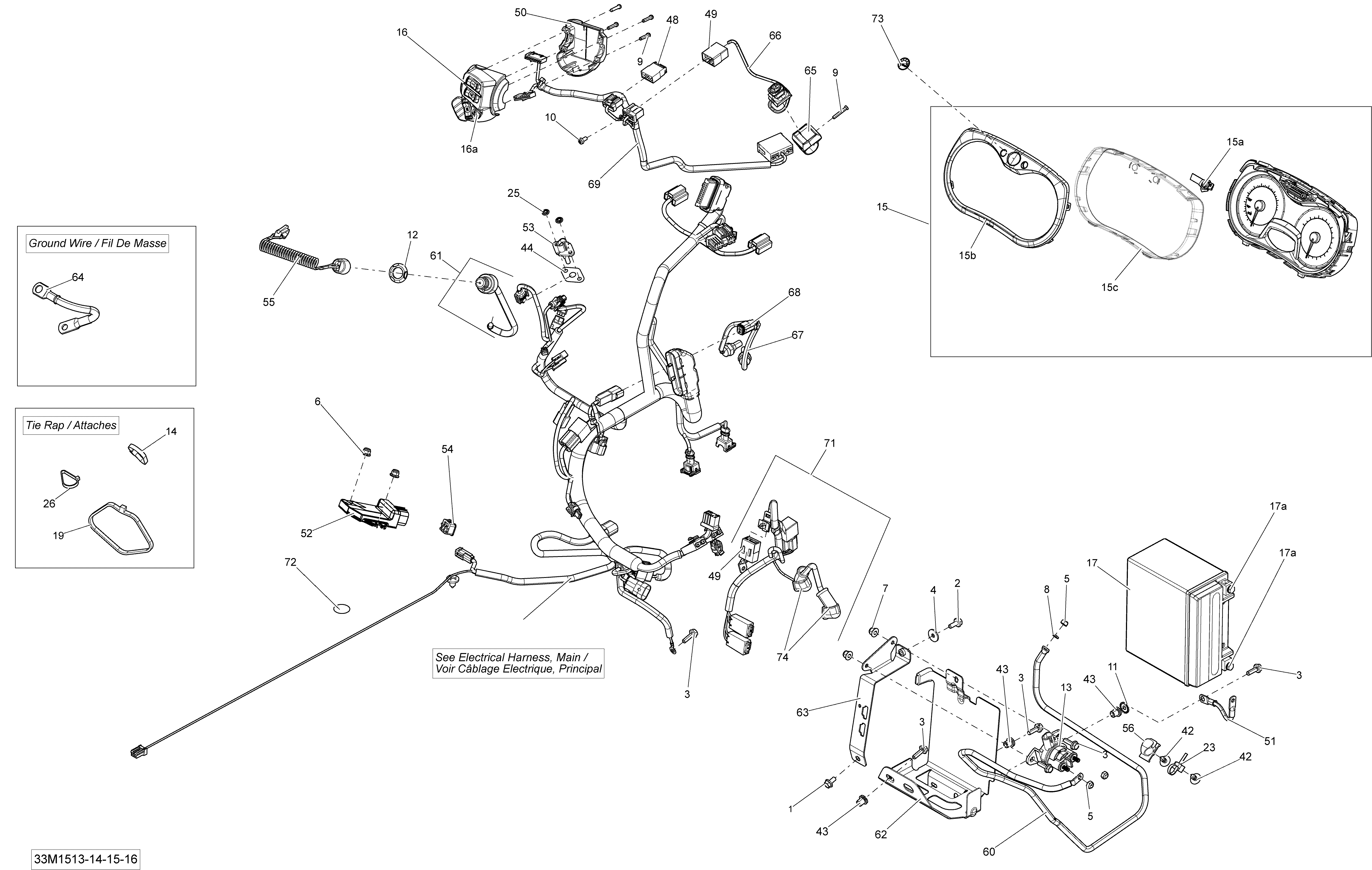

10- Electrical System _33M1513 для BRP Ski-Doo MXZ Sport 600 XP120 - 2015
-
№АртикулНазвание
-
1207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4224061201 Flat WasherFlat Washer
-
5232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9250000263 Torx Screw #8-18Torx Screw #8-18
-
10250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
11250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
12278002963 Safety NutSafety Nut
-
13278003012 Starter RelayStarter Relay
-
14293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
15515177760 Speedometer. Includes 15 To 15cSpeedometer. Includes 15 To 15c
-
15a415129355 Speedometer ButtonSpeedometer Button
-
15b415129370 Gauge RingGauge Ring
-
15c415129349 LensLens
-
16515177022 LH Housing. Includes 16 To 16aLH Housing. Includes 16 To 16a
-
16a515176088 Start/RER ButtonStart/RER Button
-
17410301203 Lead Battery 18 AmperesLead Battery 18 Amperes
-
17a250000282 Battery Bolt Kit. Includes 17 To 17aBattery Bolt Kit. Includes 17 To 17a
-
19293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
23293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
42414644300 DartDart
-
43293450275 InsertInsert
-
48515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
49515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
50515175926 Housing Switch PlateHousing Switch Plate
-
51515176358 Ground WireGround Wire
-
52515176364 Voltage RegulatorVoltage Regulator
-
54515176681 LockLock
-
55515177057 DESS CapDESS Cap
-
56515177066 ClipClip
-
57515177095 Main harness Ass'yMain harness Ass'y
-
60515177208 Battery/Starter WireBattery/Starter Wire
-
61515177249 DESS SwitchDESS Switch
-
62515177264 Battery SupportBattery Support
-
63515177266 Battery StripBattery Strip
-
64515177289 Fil de MasseFil de Masse
-
65515177310 Kill Switch SupportKill Switch Support
-
66515177362 Kill Switch. Includes 66 To 66aKill Switch. Includes 66 To 66a
-
66a515175232 Male TerminalMale Terminal
-
68515177472 Temperature SensorTemperature Sensor
-
69515177609 Steering Wiring HarnessSteering Wiring Harness
-
71515177832 Electrical Start HarnesElectrical Start Harnes
-
72518325560 Adhesive PatchAdhesive Patch
-
73704904616 BRP Logo, 20mmBRP Logo, 20mm
-
74710000495 Protector CapProtector Cap
