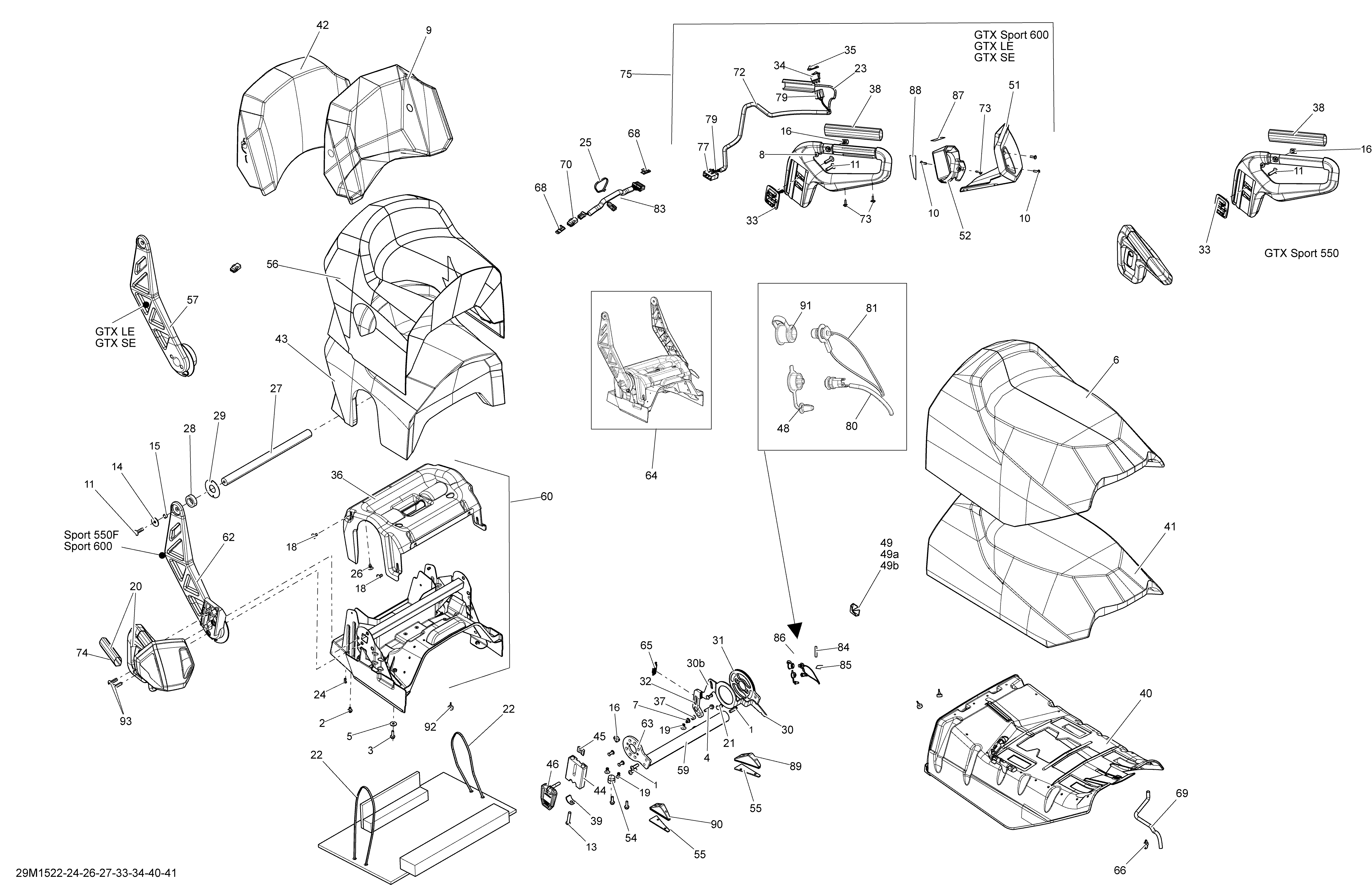

09- Seat _29M1540 для BRP Ski-Doo Grand Touring LE 900ACE XR137 - 2015
-
№АртикулНазвание
-
1205982586 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
2207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
3207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
4207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5224061201 Flat WasherFlat Washer
-
6510005685 Front Seat CoverFront Seat Cover
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
9510005353 Backrest CoverBackrest Cover
-
10250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
11250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
13250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
14250200128 Flat Washer 8 mmFlat Washer 8 mm
-
15271000558 SpacerSpacer
-
16293100003 Nut M6Nut M6
-
18293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20510005854 RH Handle Ass'yRH Handle Ass'y
-
21293150129 Steel RivetSteel Rivet
-
22293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
23515176999 Heated ElementHeated Element
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26414644300 DartDart
-
27510004377 Upper Backrest AxleUpper Backrest Axle
-
28510004378 Rubber ShimRubber Shim
-
29510004379 WasherWasher
-
30510004385 Handle, Black. Includes 30bHandle, Black. Includes 30b
-
30b510004419 GripGrip
-
31510004391 SprocketSprocket
-
32510004392 Adjustment PivotAdjustment Pivot
-
33510004405 MouldingMoulding
-
34510004413 Rocker SwitchRocker Switch
-
35510004414 Switch ProtectorSwitch Protector
-
36510004423 Foam SupportFoam Support
-
37510004425 BushingBushing
-
38510004449 Handle GripHandle Grip
-
39510004565 Handle ClampHandle Clamp
-
40510004775 Front Seat BaseFront Seat Base
-
41510004777 Front Seat FoamFront Seat Foam
-
42510004782 Backrest FoamBackrest Foam
-
43510004791 Rear Seat FoamRear Seat Foam
-
44510004798 Handle LinkHandle Link
-
45510004804 Stopper BlockStopper Block
-
46510004806 Lever Lock Ass'yLever Lock Ass'y
-
48510004950 CapCap
-
49510004963 Seat Corner, Black. Includes 49 To 49bSeat Corner, Black. Includes 49 To 49b
-
49a510004964 RH Rear Corner SeatRH Rear Corner Seat
-
49b510004965 LH Rear Corner SeatLH Rear Corner Seat
-
51510005009 RH Air DeflectorRH Air Deflector
-
51510005010 LH Air DeflectorLH Air Deflector
-
52510005036 Housing SwitchHousing Switch
-
54510005095 Seat StudSeat Stud
-
55510005216 SpacerSpacer
-
56510005694 Rear Seat CoverRear Seat Cover
-
57510005464 RH ArmRH Arm
-
57510005465 LH ArmLH Arm
-
59510005496 Link TubeLink Tube
-
63510005568 Link PlateLink Plate
-
64510005688 Seat Base Ass'ySeat Base Ass'y
-
65514053643 SpringSpring
-
68515175283 Housing SupportHousing Support
-
70515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
72515175506 TubingTubing
-
73250000725 Screw M4 X 16Screw M4 X 16
-
74510005814 Reinforcement HandleReinforcement Handle
-
75510005853 LH Handle Ass'yLH Handle Ass'y
-
77515176033 Male ConnectorMale Connector
-
79515176697 Handle HarnessHandle Harness
-
80515177018 Heated Liner HarnessHeated Liner Harness
-
81515176698 Visor Connector HarnessVisor Connector Harness
-
83515176766 Seat HarnessSeat Harness
-
84516003612 Visor and Liner DecalVisor and Liner Decal
-
87516003816 Heated Handle DecalHeated Handle Decal
-
89518325709 LH Seat AnchorLH Seat Anchor
-
90518325710 RH Seat AnchorRH Seat Anchor
-
91572103300 CapCap
-
92708000759 Rubber StopperRubber Stopper
