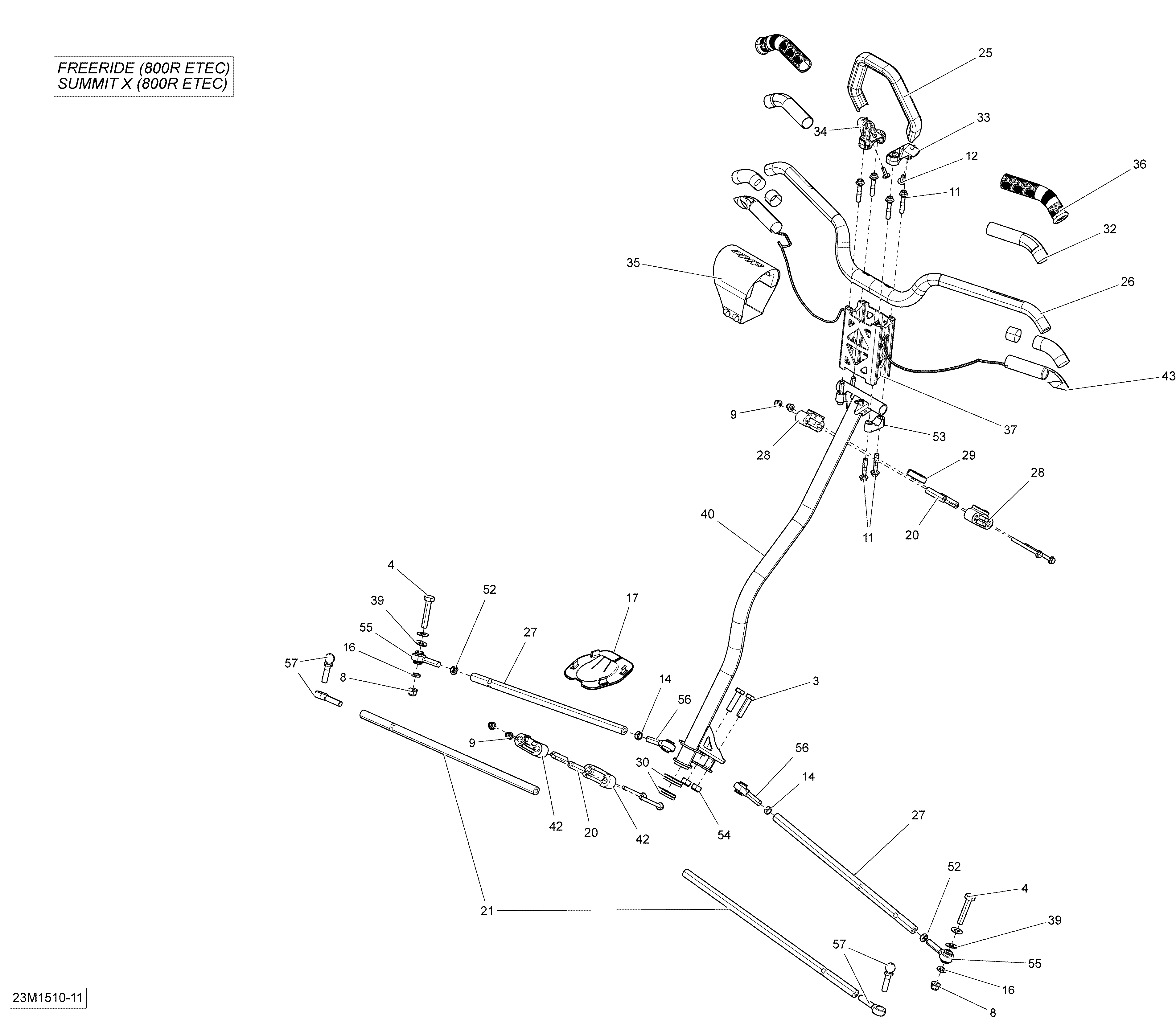

07- Steering _23M1510 для BRP Ski-Doo Freeride 800RETEC XM-RS, 146 - 2015

  • №
    Артикул
    Название
  • 3
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 4
    207005554 Hex Screw M10 X 55
    Hex Screw M10 X 55
  • 5
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 8
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
  • 9
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 11
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 12
    250000402 Torx-Truss Screw M6 X 18
    Torx-Truss Screw M6 X 18
  • 14
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 16
    503192496 Washer
    Washer
  • 17
    506152163 Plate
    Plate
  • 20
    506152297 Housing Bushing
    Housing Bushing
  • 21
    506152498 Tie-Rod
    Tie-Rod
  • 25
    506152460 Moulding Strap
    Moulding Strap
  • 26
    506152802 Manta Green Handle Bar
    Manta Green Handle Bar
  • 28
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 29
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 30
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 32
    506152548 Insulant
    Insulant
  • 33
    506152555 Steering Support
    Steering Support
  • 34
    506152556 Steering Support
    Steering Support
  • 35
    506152717 Steering Pad
    Steering Pad
  • 36
    506152560 Grip 148mm
    Grip 148mm
  • 37
    506152752 Magenta Handlebar Extension. Models With Magenta Ski Leg
    Magenta Handlebar Extension. Models With Magenta Ski Leg
  • 37
    506152806 Handlebar Extension. Models With Black Ski Leg
    Handlebar Extension. Models With Black Ski Leg
  • 39
    506152582 Washer
    Washer
  • 40
    506152584 Black Main Tube
    Black Main Tube
  • 42
    506152588 Lower Half-Housing
    Lower Half-Housing
  • 43
    506152758 Heating Element 32 Watt
    Heating Element 32 Watt
  • 52
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 53
    506152751 Steering Support
    Steering Support
  • 54
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 55
    506152019 RH Thread Ball Joint
    RH Thread Ball Joint
  • 56
    506152081 LH Thread Ball Joint
    LH Thread Ball Joint
