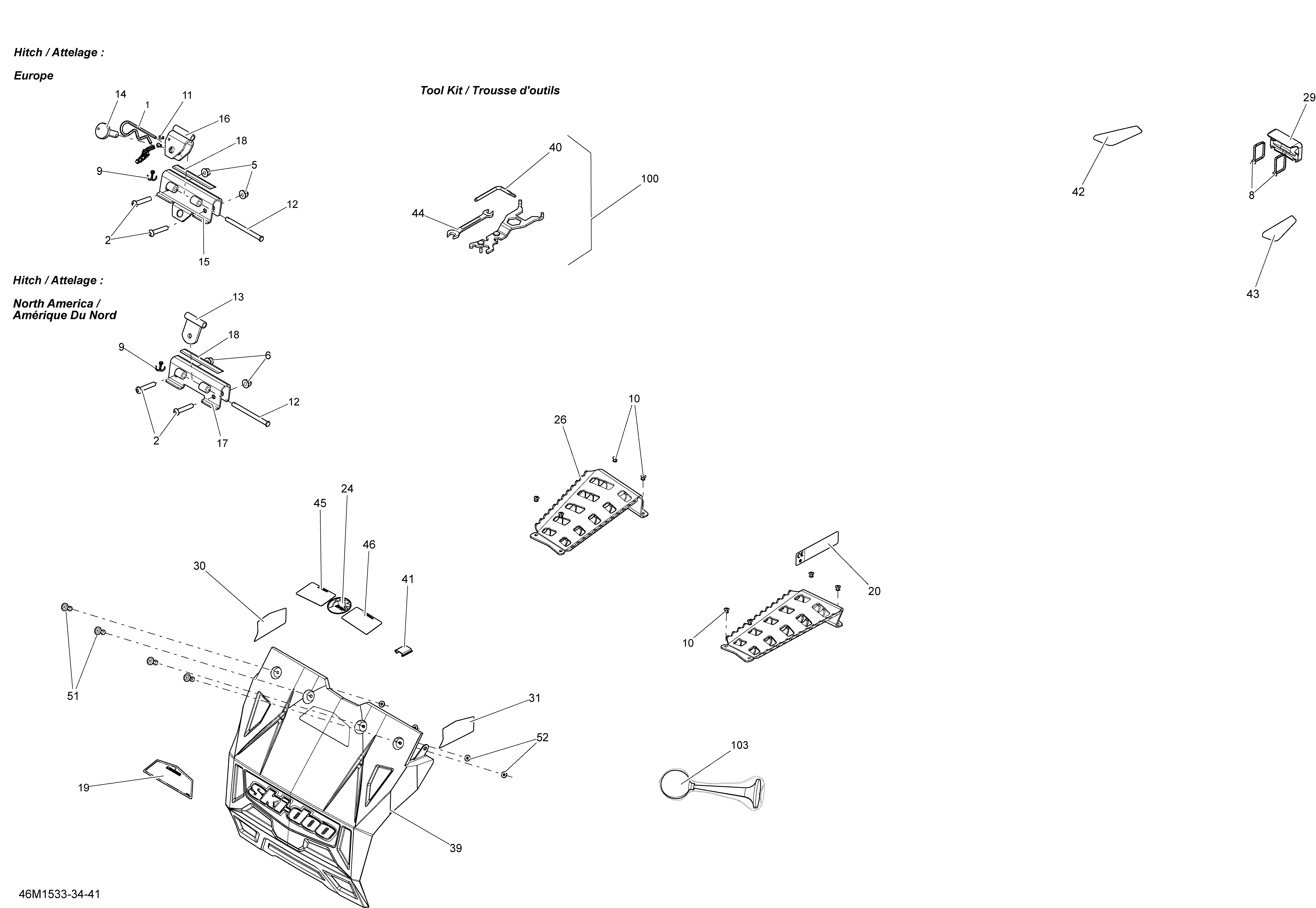

09- Utilities _46M1541 для BRP Ski-Doo Expedition Sport 900ACE XS154 - 2015
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
8293750018 Tie Rap 371 mmTie Rap 371 mm
-
9371800200 Cotter PinCotter Pin
-
11390404300 Pop Rivet 5/32''Pop Rivet 5/32''
-
12511000520 Clevis PinClevis Pin
-
13511000521 Hitch Plate WeldedHitch Plate Welded
-
14511000555 PinPin
-
15511000554 SupportSupport
-
16511000588 Hitch PlateHitch Plate
-
17511000768 SupportSupport
-
18516004568 Warning Decal, SecurityWarning Decal, Security
-
19516005175 Warning Decal, TrackWarning Decal, Track
-
20516006804 ''CE'' Decal.''CE'' Decal.
-
24219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
29520000871 Reflector SupportReflector Support
-
30520000880 Red LH Rear Reflector. Model-North AmericaRed LH Rear Reflector. Model-North America
-
30520000882 Yellow LH Rear Reflector. Modele EuropeYellow LH Rear Reflector. Modele Europe
-
31520000881 Red RH Rear Reflector. Model-North AmericaRed RH Rear Reflector. Model-North America
-
31520000883 Yellow RH Rear Reflector. Modele EuropeYellow RH Rear Reflector. Modele Europe
-
39520001340 Snow GuardSnow Guard
-
40520001142 Spacing ToolSpacing Tool
-
41520000829 Radiator TrimRadiator Trim
-
42520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
43520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
44529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
45516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
46516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
51293150101 Pop Rivet 3/16''Pop Rivet 3/16''
-
52517124300 WasherWasher
-
100520001290 Tools KitTools Kit
-
103549011291 HornHorn
