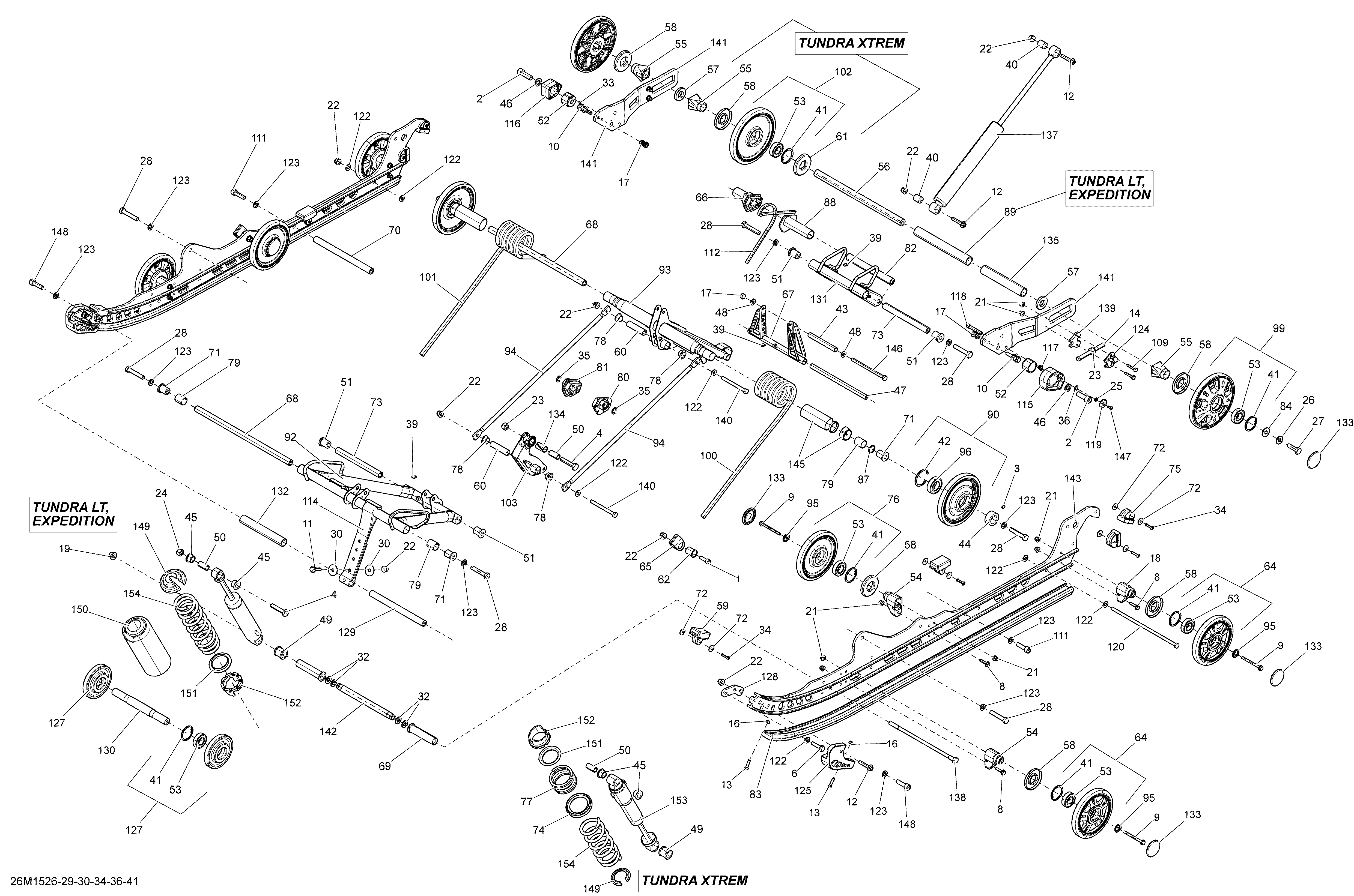

08- Rear Suspension _26M1526 для BRP Ski-Doo Expedition Sport 550F XP154 - 2015
-
№АртикулНазвание
-
1205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
2205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
3206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
4207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
8207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
9207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
10207682534 Hex. Flanged ScrewHex. Flanged Screw
-
11207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
12207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
13208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
14230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
16232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
17232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
18503193894 Casted SupportCasted Support
-
19233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
21233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
23233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
24233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
25234051410 Flat Washer M5Flat Washer M5
-
26234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
27250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
28250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
30250200128 Flat Washer 8 mmFlat Washer 8 mm
-
32250200143 Flat WasherFlat Washer
-
33250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
34293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293370013 E-CirclipE-Circlip
-
36293370068 CirclipCirclip
-
39408200700 Grease FittingGrease Fitting
-
40414936000 CushionCushion
-
41415129371 Retaining RingRetaining Ring
-
42415129780 Retaining RingRetaining Ring
-
43503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
44503168800 Retaining RingRetaining Ring
-
45503189117 CushionCushion
-
46503189148 WasherWasher
-
47503189156 Pivot Arm AxlePivot Arm Axle
-
48503189157 WasherWasher
-
49503189271 CushionCushion
-
50503189282 BushingBushing
-
51503189324 CushionCushion
-
52503189488 Block GuideBlock Guide
-
53503190396 Ball BearingBall Bearing
-
54503193894 Casted SupportCasted Support
-
55503190428 Rear Wheel SpacerRear Wheel Spacer
-
56503190429 Rear AxleRear Axle
-
57503190432 WasherWasher
-
58503190434 Labyrinth SealLabyrinth Seal
-
59503190576 Rubber StopperRubber Stopper
-
60503190643 Axle Bar (Long)Axle Bar (Long)
-
61503190682 Labyrinth SealLabyrinth Seal
-
62503190754 Retainer CushionRetainer Cushion
-
64503191624 Full Moon Wheel Ass'y, 147 mmFull Moon Wheel Ass'y, 147 mm
-
65503191183 Spring SupportSpring Support
-
66503191190 RH Spring CamRH Spring Cam
-
67503191209 Pivot ArmPivot Arm
-
68503191215 Upper ShaftUpper Shaft
-
69503191259 Center BushingCenter Bushing
-
70503191260 Axle StrapAxle Strap
-
71503191262 BushingBushing
-
72503191273 WasherWasher
-
73503191279 Lower ShaftLower Shaft
-
75503191291 Rubber StopperRubber Stopper
-
76503191311 Black Wheel Ass'y, 147 mmBlack Wheel Ass'y, 147 mm
-
78503191555 Swivel BushingSwivel Bushing
-
79503191556 Extended BushingExtended Bushing
-
80503191565 LH Cam AdjusterLH Cam Adjuster
-
81503191566 RH Cam AdjusterRH Cam Adjuster
-
82503191608 Cam AxelCam Axel
-
83503192618 Black Slider, 154''Black Slider, 154''
-
84503191910 WasherWasher
-
87503191651 WasherWasher
-
88503191668 LH Spring CamLH Spring Cam
-
89503191736 Rear Spacer, LongRear Spacer, Long
-
90503191738 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
92503191752 Front ArmFront Arm
-
93503191762 Rear ArmRear Arm
-
94503191765 Link RodLink Rod
-
95503191820 Wheel Cup M6Wheel Cup M6
-
96503191982 Ball BearingBall Bearing
-
99503192130 Full Moon Wheel Ass'y, 165 mmFull Moon Wheel Ass'y, 165 mm
-
100503192271 Black LH Spring, SquareBlack LH Spring, Square
-
101503192270 Black RH Spring, SquareBlack RH Spring, Square
-
103503192211 RockerRocker
-
109207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
111205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
112503192282 Pivot SpringPivot Spring
-
114503192360 Stopper StrapStopper Strap
-
115503192426 LH BlocLH Bloc
-
116503192427 RH BlocRH Bloc
-
117503192436 Compression SpringCompression Spring
-
118503192437 RodeRode
-
119503192438 HandleHandle
-
120503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
122503192494 WasherWasher
-
123503192496 WasherWasher
-
124503192583 TensionerTensioner
-
125503192609 LH ProtectorLH Protector
-
125503192610 RH ProtectorRH Protector
-
127503192611 Black Wheel Ass'y, 100 mmBlack Wheel Ass'y, 100 mm
-
128503192612 PlatePlate
-
129503192613 Axle StrapAxle Strap
-
130503192644 Front Wheel AxleFront Wheel Axle
-
131503192647 Runner PivotRunner Pivot
-
132503192678 SpacerSpacer
-
133503192771 Black Wheel CapBlack Wheel Cap
-
134503193037 BushingBushing
-
137503193193 Rear Shock HPG SEALRear Shock HPG SEAL
-
138503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
139503193250 SpacerSpacer
-
140503193372 Screw M8 X 90Screw M8 X 90
-
141503193970 RH Rail PivotRH Rail Pivot
-
141503193969 LH Rail PivotLH Rail Pivot
-
142503193435 Pivot AxlePivot Axle
-
143503193723 RunnerRunner
-
145572080700 BushingBushing
-
146732601197 Bolt M8, ShortBolt M8, Short
-
147250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
148205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
149706200881 Spring StopperSpring Stopper
-
150503193663 ProtectorProtector
-
151503191872 Spring GuideSpring Guide
-
152505073625 Adjustement CamAdjustement Cam
-
153503192266 Center ShockCenter Shock
-
154503191882 Black SpringBlack Spring
