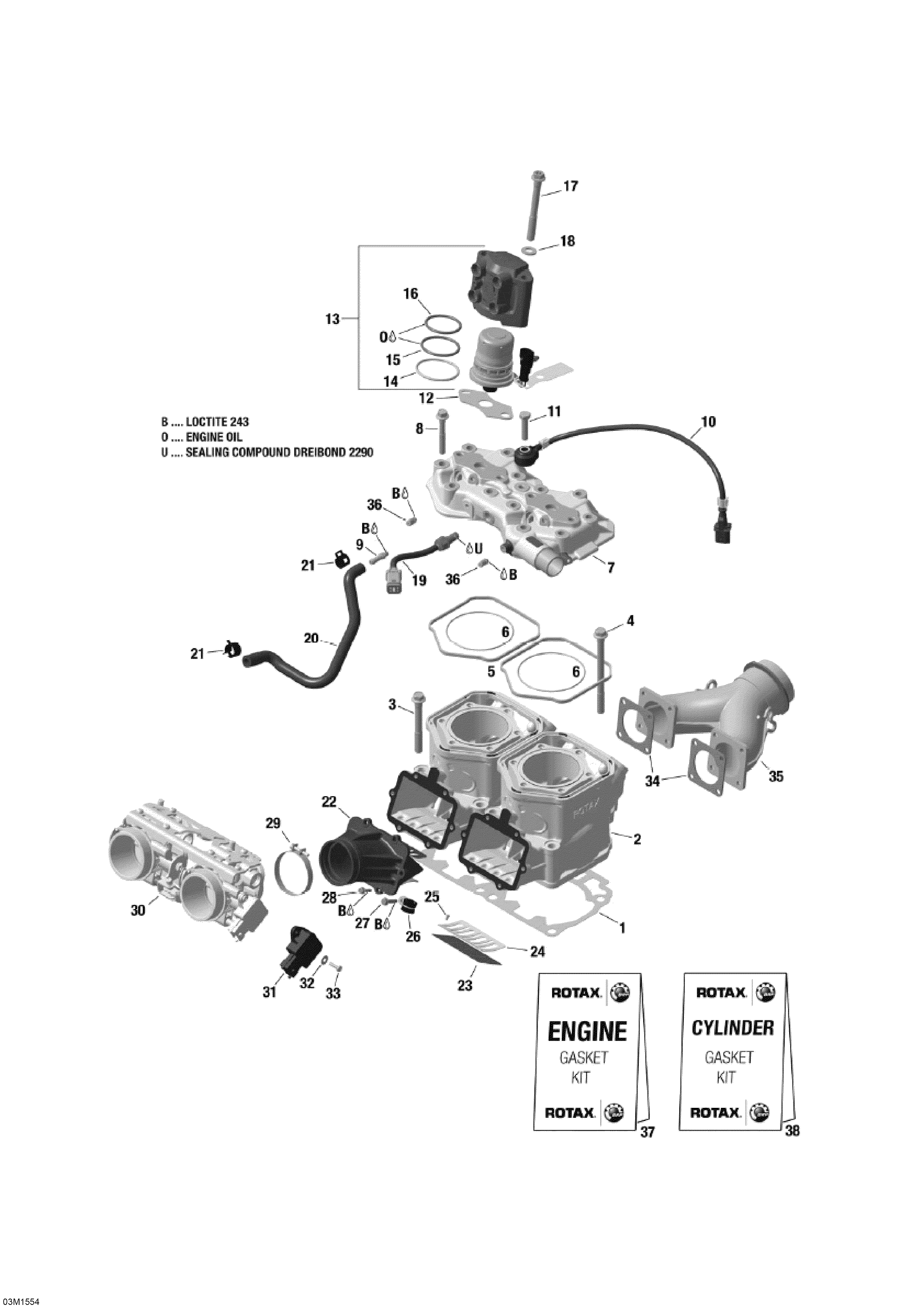

01- Cylinder _03R1554 для BRP Ski-Doo Expedition SE 600 E-TEC - 2015

№

Артикул

Название
1

420431160 Gasket 0.5 mm. Included In Gasket Kit

Gasket 0.5 mm. Included In Gasket Kit

5 710 ₽
1

420431161 Gasket 0.6 mm. Included In Gasket Kit

Gasket 0.6 mm. Included In Gasket Kit

7 420 ₽
1

420431162 Gasket 0.7 mm. Included In Gasket Kit

Gasket 0.7 mm. Included In Gasket Kit

7 420 ₽
1

420431163 Double Gasket 0.8 mm. Included In Gasket Kit

Double Gasket 0.8 mm. Included In Gasket Kit

7 420 ₽
2

420623263 Cylinder

Cylinder

93 920 ₽
3

420640524 Hex. Collar Screw

Hex. Collar Screw

3 820 ₽
4

420640534 Hex. Collar Screw

Hex. Collar Screw

4 520 ₽
5

420931590 Rubber Ring. Included In Gasket Kit

Rubber Ring. Included In Gasket Kit

2 480 ₽
6

293300026 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

4 480 ₽
7

420623299 Head Cylinder Cover

Head Cylinder Cover

127 750 ₽
8

420941627 Hex. Screw M8 X 56.5

Hex. Screw M8 X 56.5

2 770 ₽
9

420924724 Hose Nipple

Hose Nipple

2 400 ₽
10

270000484 Noise Sensor

Noise Sensor

20 670 ₽
11

207083544 Hex. Screw M8 X 35

Hex. Screw M8 X 35

390 ₽
12

420430930 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

2 770 ₽
13

512060919 Fuel Injector Ass'y. Includes 13 To 16

Fuel Injector Ass'y. Includes 13 To 16

0 ₽
14

415129497 Crush Ring

Crush Ring

6 020 ₽
15

415129498 O-Ring

O-Ring

5 710 ₽
16

415129499 O-Ring

O-Ring

5 150 ₽
17

420441187 Flanged Torx Screw M10 X 90

Flanged Torx Screw M10 X 90

2 760 ₽
18

420927410 Flat Washer M10

Flat Washer M10

510 ₽
19

515177471 Temperature Sensor

Temperature Sensor

7 110 ₽
19

515175670 Female Terminal Housing, 2 Circuits

Female Terminal Housing, 2 Circuits

790 ₽
19

278000632 Female Terminal

Female Terminal

200 ₽
20

420460867 Molded Hose

Molded Hose

6 020 ₽
21

420853511 Clamp

Clamp

2 440 ₽
22

420667530 Intake Socket With Reed Valve. Includes 22 To 25

Intake Socket With Reed Valve. Includes 22 To 25

11 950 ₽
23

420924680 Reed Pedal

Reed Pedal

12 670 ₽
24

420924695 Reed Pedal Stop

Reed Pedal Stop

1 150 ₽
25

420941215 Phillips Screw M3 X 5

Phillips Screw M3 X 5

160 ₽
26

420851250 Clamp

Clamp

4 640 ₽
27

420841550 Tapping Screw M5 X 22

Tapping Screw M5 X 22

840 ₽
28

420941925 Tapping Screw M5 X 16

Tapping Screw M5 X 16

180 ₽
29

420851065 Clamp

Clamp

4 520 ₽
30

420889197 Throttle Body

Throttle Body

101 780 ₽
31

420866120 Position Sensor

Position Sensor

26 850 ₽
32

234041600 Flat Washer 4 mm, Stainless

Flat Washer 4 mm, Stainless

390 ₽
33

208641660 Phillips Screw M4 X 16

Phillips Screw M4 X 16

90 ₽
34

420850552 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

1 530 ₽
35

420673420 Exhaust Manifold

Exhaust Manifold

20 760 ₽
36

420924724 Hose Nipple

Hose Nipple

2 400 ₽
37

420889924 Gasket Set, Engine

Gasket Set, Engine

33 440 ₽
38

420889928 Gasket Set, Cylinder

Gasket Set, Cylinder

39 730 ₽
