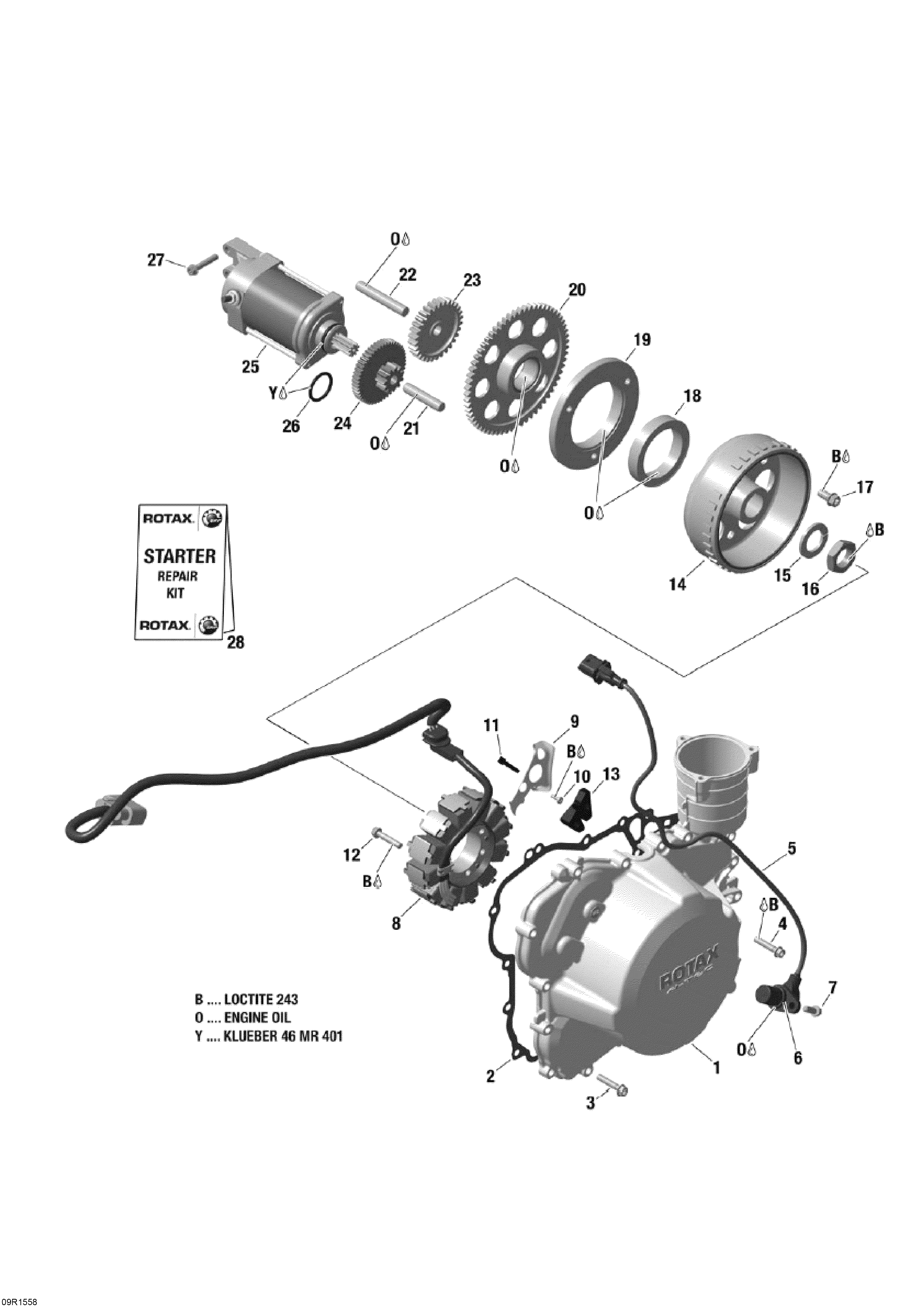

03- Magneto And Electric Starter _09R1558 для BRP Ski-Doo Expedition SE 1200 - 2015
-
№АртикулНазвание
-
1420611833 CoverCover
-
2420430750 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420966570 Crankshaft Position Sensor Ass'y. Includes 5 To 6Crankshaft Position Sensor Ass'y. Includes 5 To 6
-
6420431580 O-RingO-Ring
-
7420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420892376 Stator Ass'y. Includes 8 To 11Stator Ass'y. Includes 8 To 11
-
9420951192 Cable HolderCable Holder
-
10420640085 Torx Screw 3.5 X 8Torx Screw 3.5 X 8
-
11420866717 ClampClamp
-
12420440649 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
13420860052 SpacerSpacer
-
14420892363 Magneto FlywheelMagneto Flywheel
-
15420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
16420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
17420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
18420659113 Sprag ClutchSprag Clutch
-
19420659266 Housing Sprag ClutchHousing Sprag Clutch
-
20420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
21420229302 Location PinLocation Pin
-
22420229475 Needle PinNeedle Pin
-
23420634605 Gear, 30 TeethGear, 30 Teeth
-
24420634741 Double GearDouble Gear
-
25420893530 Starter Ass'y. Includes 25 To 26Starter Ass'y. Includes 25 To 26
-
26420250145 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
27420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
28420881140 Carbon Brush SetCarbon Brush Set
