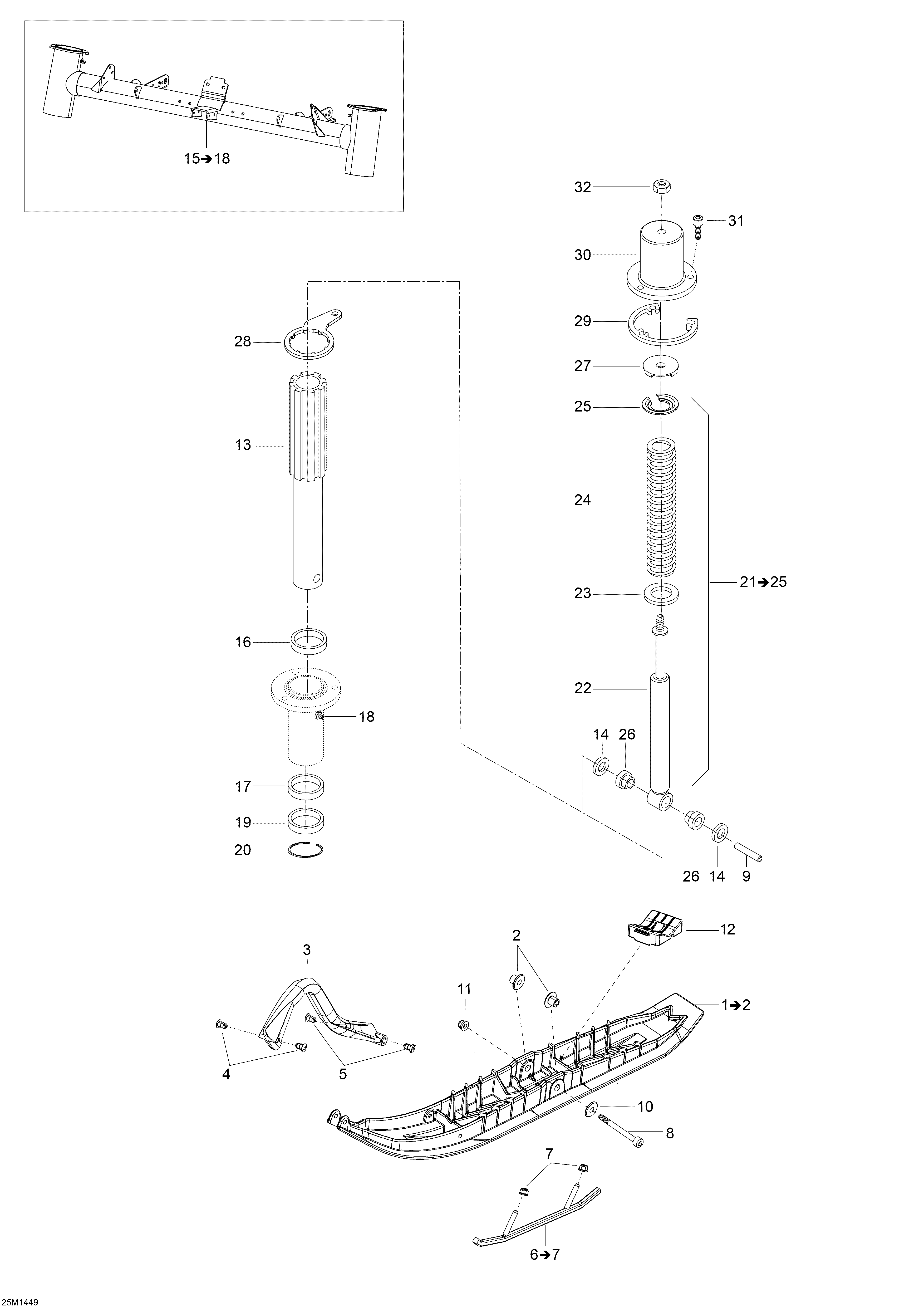

07- Front Suspension And Ski для BRP Ski-Doo TUNDRA WT 550F RER XU - 2014
-
№АртикулНазвание
-
1505073100 Black Pilot Ski Ass'y. Includes 1 To 2Black Pilot Ski Ass'y. Includes 1 To 2
-
2505071781 CushionCushion
-
3505072976 Black HandleBlack Handle
-
4505071812 RetainerRetainer
-
5505072133 RetainerRetainer
-
6860201044 Carbide Runner Kit. Includes 6 To 7Carbide Runner Kit. Includes 6 To 7
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9505073209 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073200 Ski LegSki Leg
-
14505072579 SpacerSpacer
-
15505072984 Ass'y Module S2. Includes 15 To 18Ass'y Module S2. Includes 15 To 18
-
16414803100 Upper CushionUpper Cushion
-
17414803200 Lower CushionLower Cushion
-
18408200700 Grease FittingGrease Fitting
-
19505072696 Seal OilSeal Oil
-
20505072698 CirclipCirclip
-
22505073046 ShockShock
-
23505072578 WasherWasher
-
24505072557 Black SpringBlack Spring
-
25505072619 Spring StopperSpring Stopper
-
26572034500 CushionCushion
-
27605354835 Rubber BumberRubber Bumber
-
28505073203 Steering ArmSteering Arm
-
29505072581 SpacerSpacer
-
30505072874 Suspension Cover LHSuspension Cover LH
-
30505072875 Suspension Cover RHSuspension Cover RH
-
31205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
32233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
