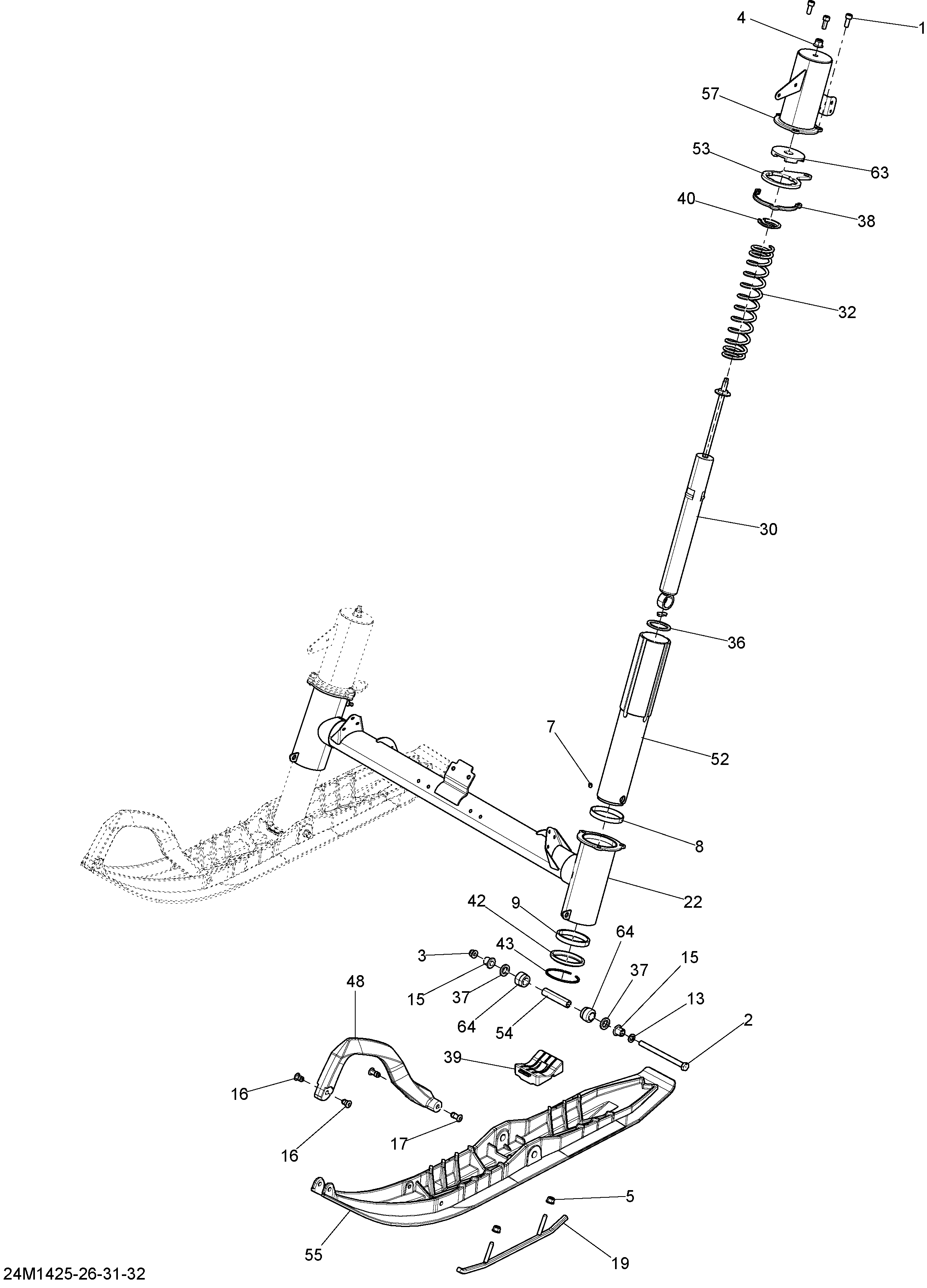

07- Front Suspension And Ski для BRP Ski-Doo TUNDRA SPORT 600ACE XU - 2014
-
№АртикулНазвание
-
1205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
2230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
7408200700 Grease FittingGrease Fitting
-
8414803100 Upper CushionUpper Cushion
-
9414803200 Lower CushionLower Cushion
-
13503192496 WasherWasher
-
15505071781 CushionCushion
-
16505071812 RetainerRetainer
-
17505072133 RetainerRetainer
-
19860201044 Carbide Runner KitCarbide Runner Kit
-
22505073497 S2 Modul, Ass'yS2 Modul, Ass'y
-
30505073046 ShockShock
-
32505072745 Black Spring. Model-North AmericaBlack Spring. Model-North America
-
32505073327 Black Spring. Model-EuropeBlack Spring. Model-Europe
-
36505072578 WasherWasher
-
37505072579 SpacerSpacer
-
38505072581 SpacerSpacer
-
39505072594 Ski StopperSki Stopper
-
40505072619 Spring StopperSpring Stopper
-
42505072696 Seal OilSeal Oil
-
43505072698 CirclipCirclip
-
48505072976 Black HandleBlack Handle
-
52505073200 Ski LegSki Leg
-
53505073203 Steering ArmSteering Arm
-
54505073209 Ski AxleSki Axle
-
55505073281 Black DS Ski 2Black DS Ski 2
-
57505073449 LH Suspension CoverLH Suspension Cover
-
57505073450 RH Suspension CoverRH Suspension Cover
-
63570025800 StopperStopper
-
64572034500 CushionCushion
