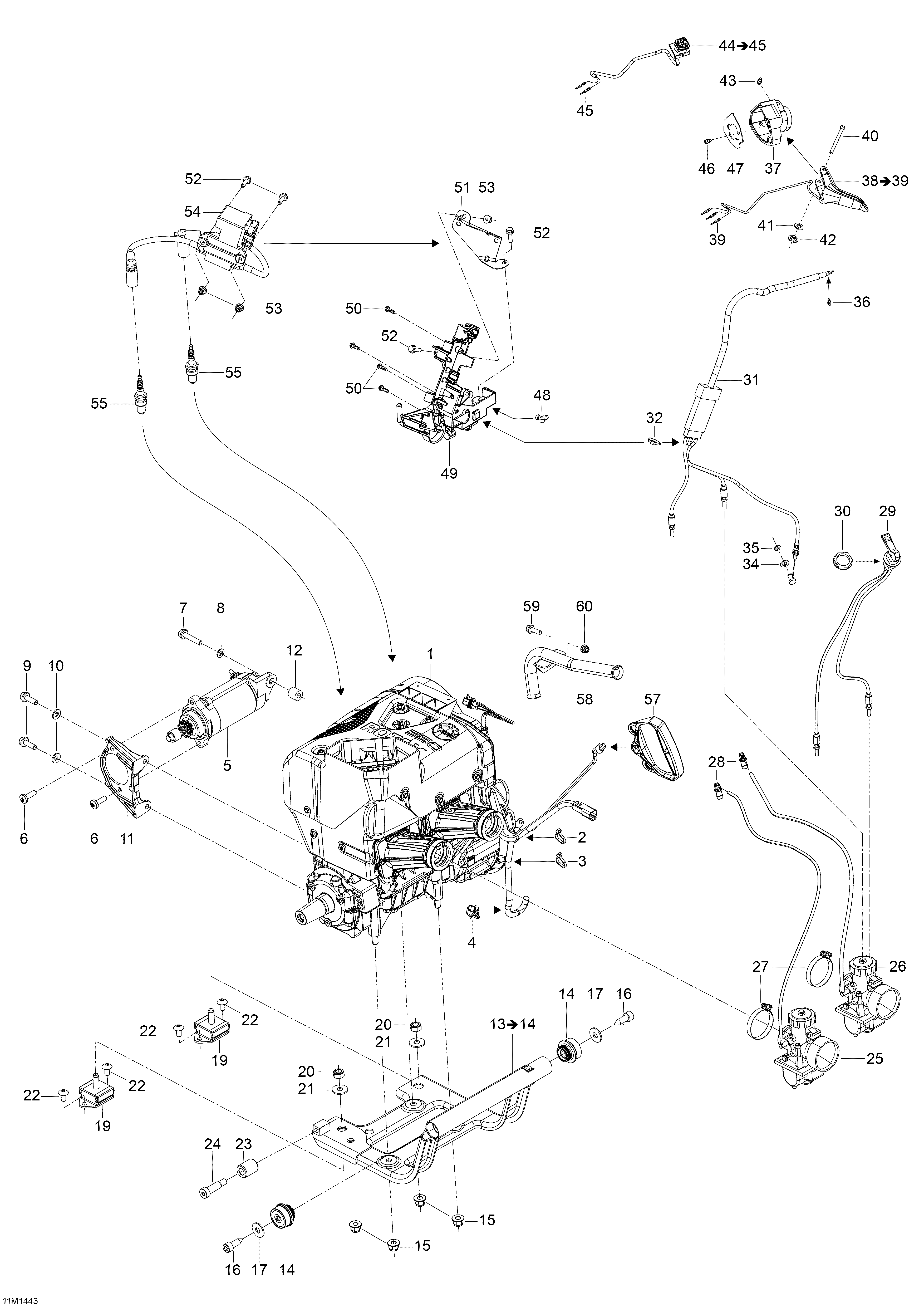

01- Engine And Engine Support для BRP Ski-Doo Skandic WT 550F XU - 2014

  • №
    Артикул
    Название
  • 2
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 3
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 4
    515176795 Clip
    Clip
  • 5
    515177389 Starter. Electric Start
    Starter. Electric Start
  • 6
    250000248 Torx Screw M8 X 25, Scotch Grip. Electric Start
    Torx Screw M8 X 25, Scotch Grip. Electric Start
  • 7
    207584544 Hex. Flanged Screw M8 X 45, Scotch Grip. Electric Start
    Hex. Flanged Screw M8 X 45, Scotch Grip. Electric Start
  • 8
    250200008 Flat Washer With Teflon 8 mm. Electric Start
    Flat Washer With Teflon 8 mm. Electric Start
  • 9
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start
    Hex. Flanged Screw M8 X 25, Scotch Grip. Electric Start
  • 10
    234281474 Conical Spring Washer M8. Electric Start
    Conical Spring Washer M8. Electric Start
  • 11
    512060656 Support. Electric Start
    Support. Electric Start
  • 12
    515176597 Spacer. Electric Start
    Spacer. Electric Start
  • 13
    512060637 Engine Support Ass'y. Includes 13 To 14
    Engine Support Ass'y. Includes 13 To 14
  • 14
    512059691 Rubber Mount
    Rubber Mount
  • 15
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 16
    250000094 Screw M10 X 30
    Screw M10 X 30
  • 17
    250200014 Flat Washer
    Flat Washer
  • 19
    512060564 Rubber Mount
    Rubber Mount
  • 20
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 21
    250200014 Flat Washer
    Flat Washer
  • 22
    250000198 Torx Truss Screw M8 X 16
    Torx Truss Screw M8 X 16
  • 23
    512060395 Stopper
    Stopper
  • 24
    250000463 Socket Head Screw, Scotch Grip
    Socket Head Screw, Scotch Grip
  • 25
    403138814 Carburetor VM30-219, PTO
    Carburetor VM30-219, PTO
  • 26
    403138813 Carburetor VM30-218, MAG
    Carburetor VM30-218, MAG
  • 27
    512059834 Gemi Clamp
    Gemi Clamp
  • 28
    414814100 Male Connector
    Male Connector
  • 29
    512060674 Choke Cable
    Choke Cable
  • 30
    512060671 Plastic Nut
    Plastic Nut
  • 31
    512060885 Throttle Cable
    Throttle Cable
  • 32
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 34
    234081100 Flat Washer 8 mm, Nylon
    Flat Washer 8 mm, Nylon
  • 35
    414753500 Circlip
    Circlip
  • 36
    414274500 Circlip
    Circlip
  • 37
    512060603 Throttle Housing
    Throttle Housing
  • 38
    512060307 Handle Ass'y. Includes 38 To 39
    Handle Ass'y. Includes 38 To 39
  • 39
    515175232 Male Terminal
    Male Terminal
  • 40
    414438700 Lever Pin
    Lever Pin
  • 41
    234051600 Flat Washer M5, Stainless
    Flat Washer M5, Stainless
  • 42
    293370050 Circlip
    Circlip
  • 43
    414440800 Socket Set Screw M8 X 10
    Socket Set Screw M8 X 10
  • 44
    515177362 Kill Switch. Includes 44 To 45
    Kill Switch. Includes 44 To 45
  • 45
    515175232 Male Terminal
    Male Terminal
  • 46
    250000265 Torx Screw M2.9 X 12
    Torx Screw M2.9 X 12
  • 47
    512060390 Plate
    Plate
  • 48
    293100003 Nut M6
    Nut M6
  • 49
    512060924 Coils Support
    Coils Support
  • 50
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 51
    512060460 Support Coils
    Support Coils
  • 52
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 53
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 54
    512060324 Calibrated Module
    Calibrated Module
  • 55
    512059552 Spark Plug, NGK BR9ECS-5
    Spark Plug, NGK BR9ECS-5
  • 57
    512060136 Starter Grip
    Starter Grip
  • 58
    512060451 Tubing
    Tubing
  • 59
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 60
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
