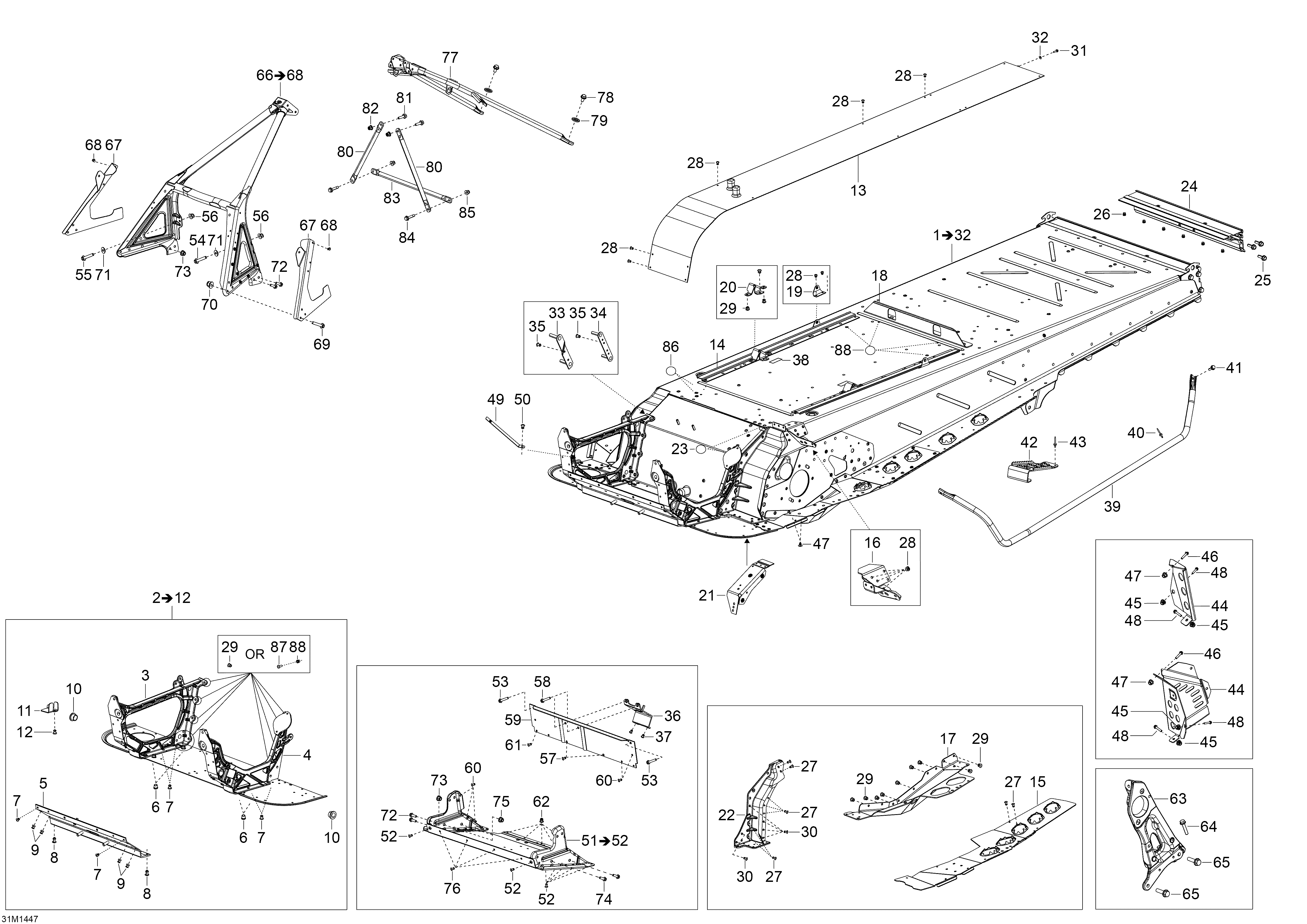

09- Frame для BRP Ski-Doo Skandic SWT 600HOETEC XU - 2014

  • №
    Артикул
    Название
  • 1
    518327549 Frame. Includes 1 To 32
    Frame. Includes 1 To 32
  • 2
    518326660 E Module. Includes 2 To 12
    E Module. Includes 2 To 12
  • 3
    518326795 RH Member
    RH Member
  • 4
    518326796 LH Member
    LH Member
  • 5
    518326198 Front Member
    Front Member
  • 6
    605636002 Clinch Nut Hexsert M8
    Clinch Nut Hexsert M8
  • 7
    390909100 Avex Rivet
    Avex Rivet
  • 8
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 9
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 10
    505072690 Leg Cushion
    Leg Cushion
  • 11
    518326642 Muffler support plate
    Muffler support plate
  • 12
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 13
    509000626 Radiator
    Radiator
  • 14
    518326107 Fastening rail
    Fastening rail
  • 15
    518327481 Footrest LH
    Footrest LH
  • 15
    518327482 Footrest RH
    Footrest RH
  • 16
    518327884 Fastening Bracket
    Fastening Bracket
  • 18
    518327003 Battery Support
    Battery Support
  • 19
    518327457 Seat Box Bracket
    Seat Box Bracket
  • 20
    518326109 Support Tube Bracket LH
    Support Tube Bracket LH
  • 20
    518326110 Support Tube Bracket RH
    Support Tube Bracket RH
  • 21
    518328096 Clinch Nut Plate
    Clinch Nut Plate
  • 22
    518325643 Frame Corner LH
    Frame Corner LH
  • 22
    518325644 Frame Corner RH
    Frame Corner RH
  • 23
    518325560 Adhesive Patch
    Adhesive Patch
  • 24
    518325645 Rear Profile
    Rear Profile
  • 25
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 26
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 27
    390909100 Avex Rivet
    Avex Rivet
  • 28
    390909200 Avex Rivet
    Avex Rivet
  • 29
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 30
    293150183 Rivet
    Rivet
  • 31
    205061244 Socket Screw
    Socket Screw
  • 33
    518326123 Gearbox Front Plate
    Gearbox Front Plate
  • 34
    518326124 Gearbox Rear Plate
    Gearbox Rear Plate
  • 35
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 36
    518325943 MAG Engine Support
    MAG Engine Support
  • 37
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 38
    518326357 Rubber Cover
    Rubber Cover
  • 39
    518327595 Footboard Support Tube LH
    Footboard Support Tube LH
  • 39
    518327596 Footboard Support Tube RH
    Footboard Support Tube RH
  • 40
    390909100 Avex Rivet
    Avex Rivet
  • 41
    207662056 Screw Hex. Flange M6 x 20
    Screw Hex. Flange M6 x 20
  • 42
    520000492 Footrest
    Footrest
  • 43
    390909100 Avex Rivet
    Avex Rivet
  • 44
    518327445 Toe Hook LH
    Toe Hook LH
  • 44
    518327447 Toe Hook RH
    Toe Hook RH
  • 45
    605636003 Clinch Nut M6 Hexsert
    Clinch Nut M6 Hexsert
  • 46
    207662056 Screw Hex. Flange M6 x 20
    Screw Hex. Flange M6 x 20
  • 47
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 48
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 49
    514054846 Spring Bracket
    Spring Bracket
  • 50
    390909200 Avex Rivet
    Avex Rivet
  • 51
    518326213 S Module. Includes 51 To 52
    S Module. Includes 51 To 52
  • 52
    390909200 Avex Rivet
    Avex Rivet
  • 53
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 54
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 55
    207663034 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 56
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 57
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 58
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 59
    518325620 Support Plate
    Support Plate
  • 60
    390909100 Avex Rivet
    Avex Rivet
  • 61
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 62
    390909200 Avex Rivet
    Avex Rivet
  • 63
    518326714 Pulley Support
    Pulley Support
  • 64
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 65
    207583086 Flanged Hex. Screw M8 X 30, Scotch Grip
    Flanged Hex. Screw M8 X 30, Scotch Grip
  • 66
    518326754 Front Member Ass'y. Includes 66 To 68
    Front Member Ass'y. Includes 66 To 68
  • 67
    502007077 Bumper Fastener LH
    Bumper Fastener LH
  • 67
    502007078 Bumper Fastener RH
    Bumper Fastener RH
  • 68
    390909200 Avex Rivet
    Avex Rivet
  • 69
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 70
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 71
    224061201 Flat Washer
    Flat Washer
  • 72
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 73
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 74
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 75
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 76
    390909200 Avex Rivet
    Avex Rivet
  • 77
    518326103 Upper Support Tube Welded
    Upper Support Tube Welded
  • 78
    207662056 Screw Hex. Flange M6 x 20
    Screw Hex. Flange M6 x 20
  • 80
    518325114 Upper Column Support
    Upper Column Support
  • 81
    207662056 Screw Hex. Flange M6 x 20
    Screw Hex. Flange M6 x 20
  • 82
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 83
    518325115 Center Column Support
    Center Column Support
  • 84
    250000522 Hex Flanged Screw M6 x 25
    Hex Flanged Screw M6 x 25
  • 85
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 86
    518325560 Adhesive Patch
    Adhesive Patch
  • 87
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 88
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
