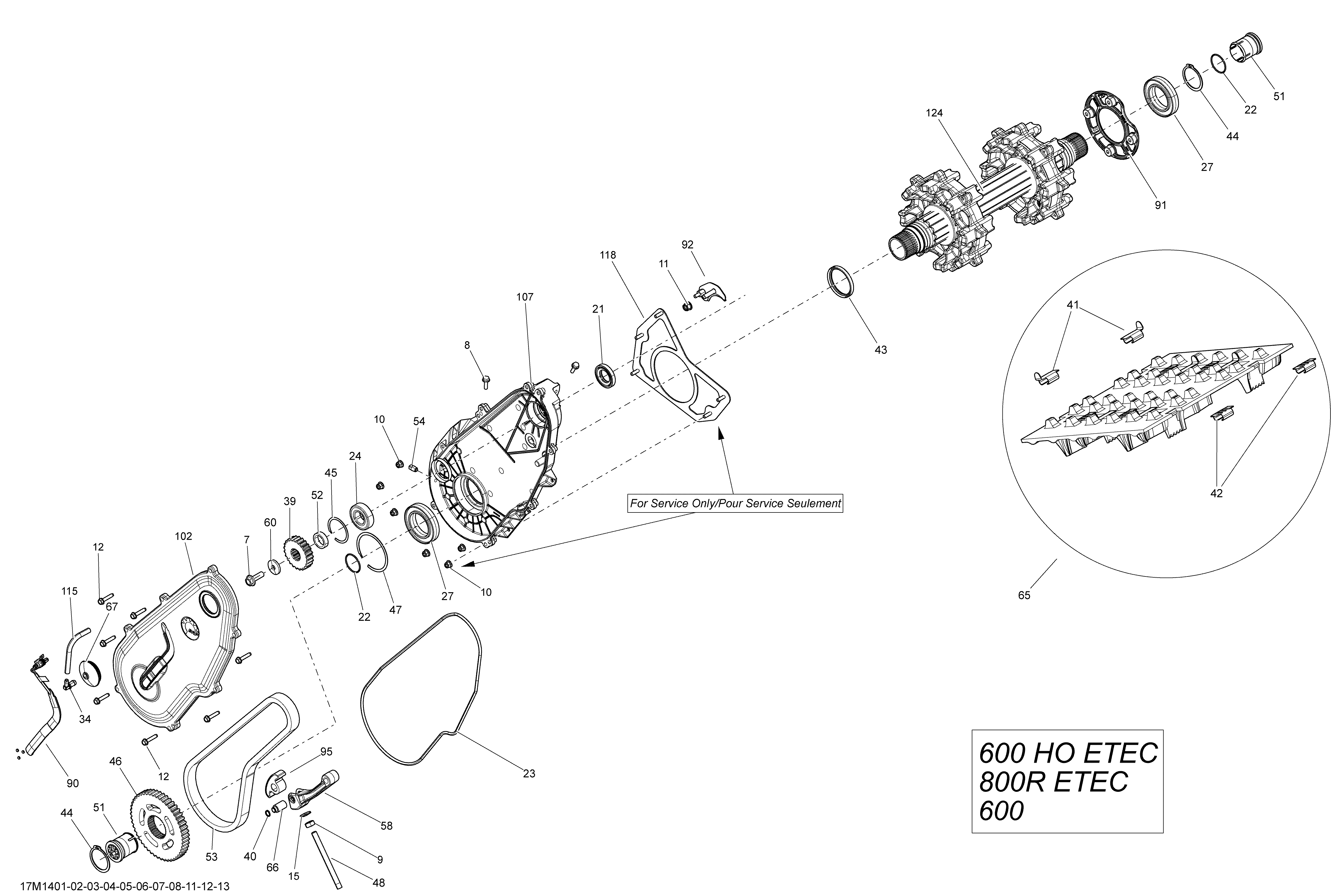

05- Drive System 800R ETEC для BRP Ski-Doo RENEGADE X 800RETEC XS - 2014
-
№АртикулНазвание
-
7207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
8207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9232006414 Hex. Nut M10Hex. Nut M10
-
10233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12210263080 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
15250200100 Bonded WasherBonded Washer
-
21415049300 Oil SealOil Seal
-
22293300122 O-RingO-Ring
-
23293300130 O-RingO-Ring
-
24293350055 Ball BearingBall Bearing
-
27293350059 Ball BearingBall Bearing
-
34414580700 Male ConnectorMale Connector
-
39504084300 Sprocket, 25 Teeth (Large)Sprocket, 25 Teeth (Large)
-
40504152282 CirclipCirclip
-
41415129528 Track GuideTrack Guide
-
42504152651 CleatCleat
-
43504152571 SealSeal
-
44504152572 CirclipCirclip
-
45504152576 CirclipCirclip
-
46504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
47504152582 CirclipCirclip
-
48504152602 Adjustment ScrewAdjustment Screw
-
51504152619 Magnetic CapMagnetic Cap
-
52504152628 ShimShim
-
53504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
54504152854 Magnetic PlugMagnetic Plug
-
58504152685 Chain TensionerChain Tensioner
-
60504152784 Spring Washer M10Spring Washer M10
-
65504152734 Track Ass'y, 16X137X1.2RSTrack Ass'y, 16X137X1.2RS
-
66504152841 Tensionner AxleTensionner Axle
-
67504152860 CapCap
-
90504152896 SensorSensor
-
92504152974 Bearing HousingBearing Housing
-
95504152739 Slider ChainSlider Chain
-
102504153146 Chaincase Cover Ass'yChaincase Cover Ass'y
-
107504153180 ChaincaseChaincase
-
115415080200 Hose, PolyurethaneHose, Polyurethane
-
118518325816 PlatePlate
-
124504153083 Drive Axle Ass'yDrive Axle Ass'y
