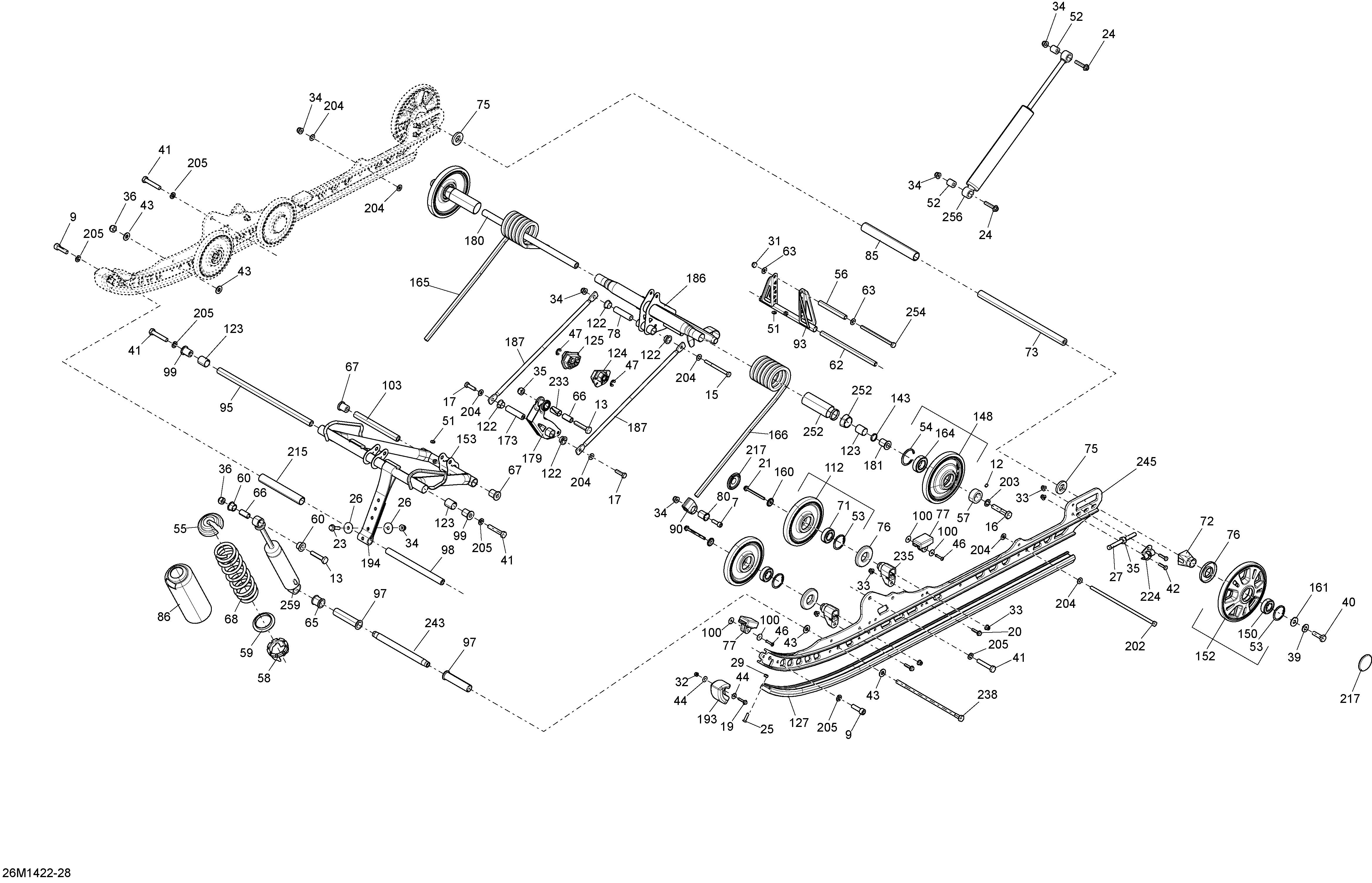

08- Rear Suspension для BRP Ski-Doo RENEGADE SPORT 550F XP - 2014
-
№АртикулНазвание
-
7205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
9205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
12206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
13207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
15207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
16207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
17207383044 Hex. Screw M8 x 30, Scotch GripHex. Screw M8 x 30, Scotch Grip
-
19207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
20207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
21207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
23207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
24207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
25208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
26250200128 Flat Washer 8 mmFlat Washer 8 mm
-
27230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
31232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
32233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
33233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
35233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
39250200141 Conical Spring Washer M10Conical Spring Washer M10
-
40250000592 Hex Cap Screw NylonHex Cap Screw Nylon
-
41250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
42250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
43250200138 WasherWasher
-
44250200140 WasherWasher
-
46293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
47293370013 E-CirclipE-Circlip
-
51408200700 Grease FittingGrease Fitting
-
52414936000 CushionCushion
-
53415129371 Retaining RingRetaining Ring
-
54415129780 Retaining RingRetaining Ring
-
55503192608 Spring Stopper. Model-EuropeSpring Stopper. Model-Europe
-
55706200881 Spring Stopper. Model-North AmericaSpring Stopper. Model-North America
-
56503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
57503168800 Retaining RingRetaining Ring
-
58505070150 Adjustment CamAdjustment Cam
-
59503191872 Spring GuideSpring Guide
-
60503189117 CushionCushion
-
62503189156 Pivot Arm AxlePivot Arm Axle
-
65503189271 CushionCushion
-
66503189282 BushingBushing
-
67503189324 CushionCushion
-
68503191882 Black SpringBlack Spring
-
71503190396 Ball BearingBall Bearing
-
72503190428 Rear Wheel SpacerRear Wheel Spacer
-
73503190429 Rear AxleRear Axle
-
75503190432 WasherWasher
-
76503190434 Labyrinth SealLabyrinth Seal
-
77503190576 Rubber StopperRubber Stopper
-
78503190643 Axle Bar (Long)Axle Bar (Long)
-
80503190754 Retainer CushionRetainer Cushion
-
85503191108 SpacerSpacer
-
86503193663 Protector. Model-North AmericaProtector. Model-North America
-
90503191183 Spring SupportSpring Support
-
93503191209 Pivot ArmPivot Arm
-
95503191215 Upper ShaftUpper Shaft
-
97503191259 Center BushingCenter Bushing
-
98503191260 Axle StrapAxle Strap
-
99503191262 BushingBushing
-
100503191273 WasherWasher
-
103503191279 Lower ShaftLower Shaft
-
112503191311 Black Wheel Ass'y, 147 mmBlack Wheel Ass'y, 147 mm
-
122503191555 Swivel BushingSwivel Bushing
-
123503191556 Extended BushingExtended Bushing
-
124503191565 LH Cam AdjusterLH Cam Adjuster
-
125503191566 RH Cam AdjusterRH Cam Adjuster
-
127503191619 SliderSlider
-
143503191651 WasherWasher
-
148503191738 Black Wheel Ass'y, 155 mmBlack Wheel Ass'y, 155 mm
-
150503190396 Ball BearingBall Bearing
-
152503191742 Black Wheel Ass'y, 180 mmBlack Wheel Ass'y, 180 mm
-
153503191752 Front ArmFront Arm
-
160503191820 Wheel Cup M6Wheel Cup M6
-
161503191910 WasherWasher
-
164503191982 Ball BearingBall Bearing
-
165503192080 RH SpringRH Spring
-
166503192081 LH SpringLH Spring
-
173503192139 Bar AxleBar Axle
-
179503192211 RockerRocker
-
180503192222 Upper ShaftUpper Shaft
-
181503192223 BushingBushing
-
186503192253 Rear ArmRear Arm
-
187503192255 Linkage RodLinkage Rod
-
193503192299 Runner ProtectorRunner Protector
-
194503192360 Stopper StrapStopper Strap
-
202503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
203503192491 WasherWasher
-
204503192494 WasherWasher
-
205503192496 WasherWasher
-
215503192678 SpacerSpacer
-
217503192771 Black Wheel CapBlack Wheel Cap
-
224503192583 TensionerTensioner
-
233503193037 BushingBushing
-
235503193082 Casted SupportCasted Support
-
238503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
243503193142 Pivot AxlePivot Axle
-
245503193721 RunnerRunner
-
252572080700 BushingBushing
-
254732601197 Bolt M8, ShortBolt M8, Short
-
256503193187 Rear Shock HPG SEALRear Shock HPG SEAL
-
259503192991 Center Shock. Model-EuropeCenter Shock. Model-Europe
-
259503192266 Center Shock. Model-North AmericaCenter Shock. Model-North America
