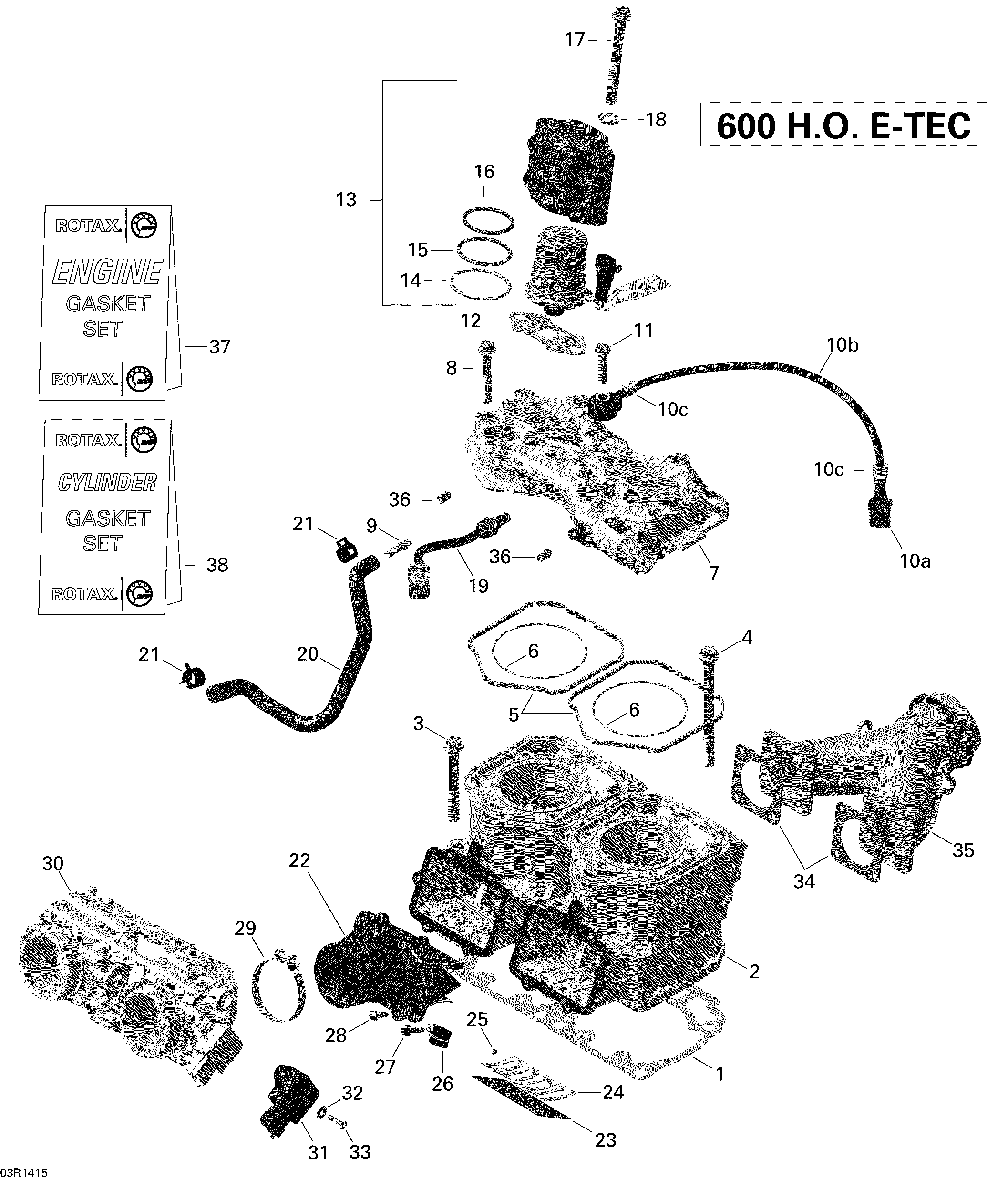

01- Cylinder And Injection System для BRP Ski-Doo RENEGADE BACKCOUNTRY 600HOE XS - 2014
-
№АртикулНазвание
-
1420431160 Gasket 0.5 mmGasket 0.5 mm
-
1420431161 Gasket 0.6 mmGasket 0.6 mm
-
1420431162 Gasket 0.7 mmGasket 0.7 mm
-
1420431163 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420623263 CylinderCylinder
-
3420640524 Hex. Collar ScrewHex. Collar Screw
-
4420640534 Hex. Collar ScrewHex. Collar Screw
-
5420931590 Rubber RingRubber Ring
-
6293300026 O-RingO-Ring
-
7420623299 Head Cylinder CoverHead Cylinder Cover
-
8420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
9420924720 Hose NippleHose Nipple
-
10a270000484 Noise SensorNoise Sensor
-
10b420460010 TubeTube
-
10c420960890 ClipClip
-
11207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
12420430930 GasketGasket
-
13512060649 Fuel Injector Ass'y. Includes 13 to 16Fuel Injector Ass'y. Includes 13 to 16
-
14415129497 Crush RingCrush Ring
-
15415129498 O-RingO-Ring
-
16415129499 O-RingO-Ring
-
17420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
18420927410 Flat Washer M10Flat Washer M10
-
19515177471 Temperature SensorTemperature Sensor
-
20420460867 Molded HoseMolded Hose
-
21420853511 ClampClamp
-
22420667530 Intake Socket With Reed Valve. Includes 22 to 25Intake Socket With Reed Valve. Includes 22 to 25
-
23420924680 Reed PedalReed Pedal
-
24420924695 Reed Pedal StopReed Pedal Stop
-
25420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
26420851250 ClampClamp
-
27420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
28420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
29420851065 ClampClamp
-
30420889197 Throttle BodyThrottle Body
-
31420866120 Position SensorPosition Sensor
-
32234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
33208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
34420850552 GasketGasket
-
35420673420 Exhaust ManifoldExhaust Manifold
-
36420924724 Hose NippleHose Nipple
-
37420889924 Gasket Set, EngineGasket Set, Engine
-
38420889928 Gasket Set, CylinderGasket Set, Cylinder
