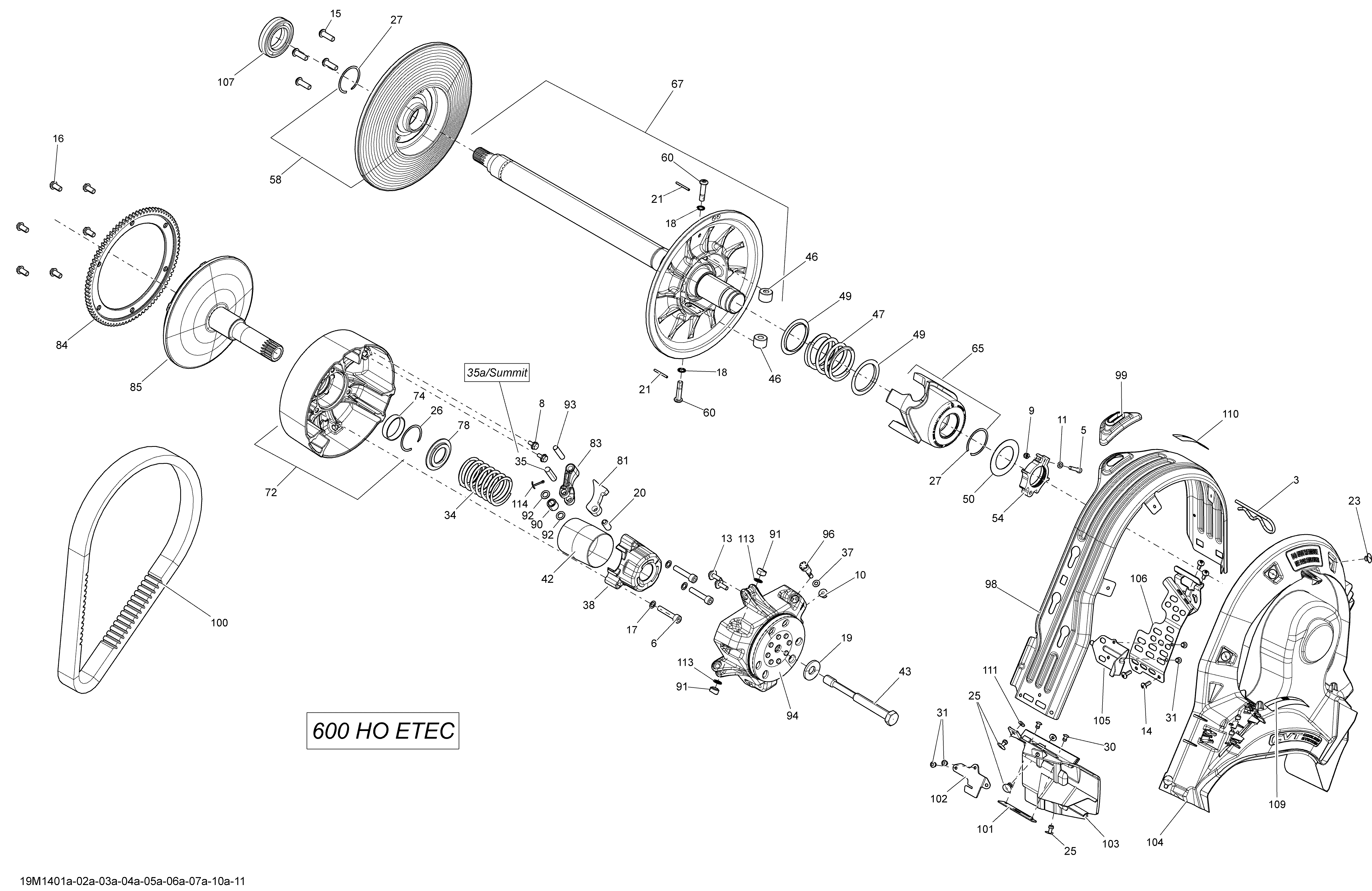

05- Pulley System 600 HO ETEC_19M1402a для BRP Ski-Doo MXZ X 600HOE XS - 2014
-
№АртикулНазвание
-
3114045200 Hair PinHair Pin
-
5205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
6205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
8250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
9232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11234051410 Flat Washer M5Flat Washer M5
-
13250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
14250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
15250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
16250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18250200009 Lock Washer 8 mmLock Washer 8 mm
-
19250200144 Conical Spring Washer M14Conical Spring Washer M14
-
20250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
21250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
23293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26293370037 CirclipCirclip
-
27293370049 CirclipCirclip
-
30390909100 Avex RivetAvex Rivet
-
31390909200 Avex RivetAvex Rivet
-
34414817700 Spring, Blue/greenSpring, Blue/green
-
35417004308 PinPin
-
37417005600 WasherWasher
-
38417007500 Spring Cover Ass'ySpring Cover Ass'y
-
42417009205 GuardGuard
-
43417120000 Drive Pulley BoltDrive Pulley Bolt
-
46417127016 RollerRoller
-
47417127137 SpringSpring
-
49417127116 Swivel AbutmentSwivel Abutment
-
50417127155 WasherWasher
-
54415129604 Calibration Ass'yCalibration Ass'y
-
58417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
60417127294 Pivot StudPivot Stud
-
65417127377 Cam Ass'yCam Ass'y
-
67417127387 Fix Flange Ass'yFix Flange Ass'y
-
72417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
74417222758 BushingBushing
-
78417222312 Spring SeatSpring Seat
-
81417222515 Ramp 412Ramp 412
-
83417222671 LeverLever
-
84417223738 Ring GearRing Gear
-
85417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
90417222947 RollerRoller
-
91417222992 Slider ShoeSlider Shoe
-
92417004302 Stopper WasherStopper Washer
-
93417223164 Lever AxleLever Axle
-
94417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
96417223501 Calibration ScrewCalibration Screw
-
98417300357 Belt GuardBelt Guard
-
99417300381 GuideGuide
-
100417300383 Drive BeltDrive Belt
-
101417300421 Reinforcement PlateReinforcement Plate
-
102417300423 Front BracketFront Bracket
-
103417300430 Front SupportFront Support
-
104417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
105417300445 StopperStopper
-
106417300448 Belt Guard BracketBelt Guard Bracket
-
107504152574 Ball BearingBall Bearing
-
109516005503 Decal, EnglishDecal, English
-
110516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
111517225900 Flat WasherFlat Washer
-
113732401030 O-RingO-Ring
-
114250400060 Cotter PinCotter Pin
