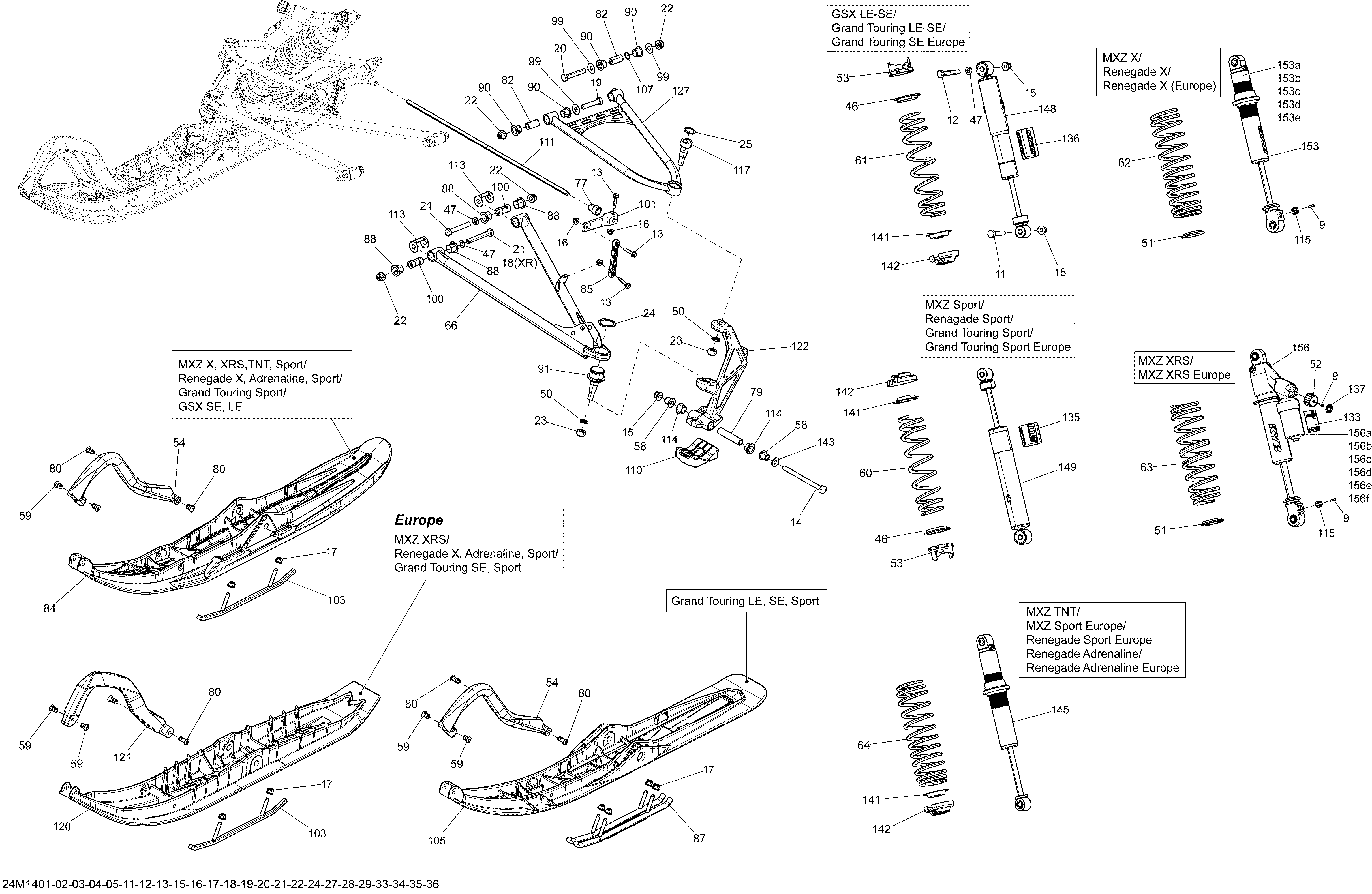

07- Front Suspension And Ski _24M1415 для BRP Ski-Doo MXZ X 12004TEC XR - 2014
-
№АртикулНазвание
-
9205031060 Socket Screw M3 X 10. Model-MX-Z XSocket Screw M3 X 10. Model-MX-Z X
-
11207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
12207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
13207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
14230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
15233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18250000218 Hex. Screw M10 X 75Hex. Screw M10 X 75
-
19250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
20250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
21250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
22250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
24293370035 CirclipCirclip
-
25293370070 CirclipCirclip
-
47503189564 WasherWasher
-
50503192491 WasherWasher
-
51503192608 Spring Stopper. Model-MX-Z XSpring Stopper. Model-MX-Z X
-
54505070963 Black Handle. Model-MX-Z XBlack Handle. Model-MX-Z X
-
54505070917 Yellow Handle. Model-MX-Z TNTYellow Handle. Model-MX-Z TNT
-
58505071781 CushionCushion
-
59505071812 RetainerRetainer
-
62505072761 Deep Black Spring. Model-MX-Z XDeep Black Spring. Model-MX-Z X
-
64505072528 Deep Black Spring. Model-MX-Z TNTDeep Black Spring. Model-MX-Z TNT
-
66505072664 Black RH Lower Arm. Model-MX-Z TNTBlack RH Lower Arm. Model-MX-Z TNT
-
66505072664 Black RH Lower Arm. Model-MX-Z XBlack RH Lower Arm. Model-MX-Z X
-
66505072665 Black LH Lower Arm. Model-MX-Z TNTBlack LH Lower Arm. Model-MX-Z TNT
-
66505072665 Black LH Lower Arm. Model-MX-Z XBlack LH Lower Arm. Model-MX-Z X
-
77505072064 BushingBushing
-
79506133300 SpacerSpacer
-
80505072133 RetainerRetainer
-
82505072143 BushingBushing
-
84505072943 Black RH Pilot SkiBlack RH Pilot Ski
-
84505072942 Black LH Pilot SkiBlack LH Pilot Ski
-
85505072204 Double Ball Joint LinkDouble Ball Joint Link
-
88505072208 BushingBushing
-
90505072250 BushingBushing
-
91505072682 Lower Ball JointLower Ball Joint
-
99505072392 WasherWasher
-
100505072393 BushingBushing
-
103860201044 Carbide Runner KitCarbide Runner Kit
-
107505072448 O-RingO-Ring
-
110505072594 Ski StopperSki Stopper
-
111505072602 StabilisatorStabilisator
-
113505072634 Wear PlateWear Plate
-
114505072690 Leg CushionLeg Cushion
-
115505072753 Adjustment Knob. Model-MX-Z XAdjustment Knob. Model-MX-Z X
-
117505072913 Upper Ball JointUpper Ball Joint
-
122505073173 Black LH Ski LegBlack LH Ski Leg
-
122505073174 Black RH Ski LegBlack RH Ski Leg
-
127505073462 Black LH Upper Arm, 42''Black LH Upper Arm, 42''
-
127505073463 Black RH Upper Arm, 42''Black RH Upper Arm, 42''
-
141706200785 Cap. Model-MX-Z TNTCap. Model-MX-Z TNT
-
142706200881 Spring Stopper. Model-MX-Z TNTSpring Stopper. Model-MX-Z TNT
-
143503192496 WasherWasher
-
145505073237 Front Shock. Model-MX-Z TNTFront Shock. Model-MX-Z TNT
-
153505073117 Front Shock. Model-MX-Z XFront Shock. Model-MX-Z X
-
153a414888312 O-Ring. Model-MX-Z XO-Ring. Model-MX-Z X
-
153b503189308 Piston Ring. Model-MX-Z XPiston Ring. Model-MX-Z X
-
153c505070398 Air Valve. Model-MX-Z XAir Valve. Model-MX-Z X
-
153d505070399 Screw. Model-MX-Z XScrew. Model-MX-Z X
-
153e505070400 O-Ring. Model-MX-Z XO-Ring. Model-MX-Z X
