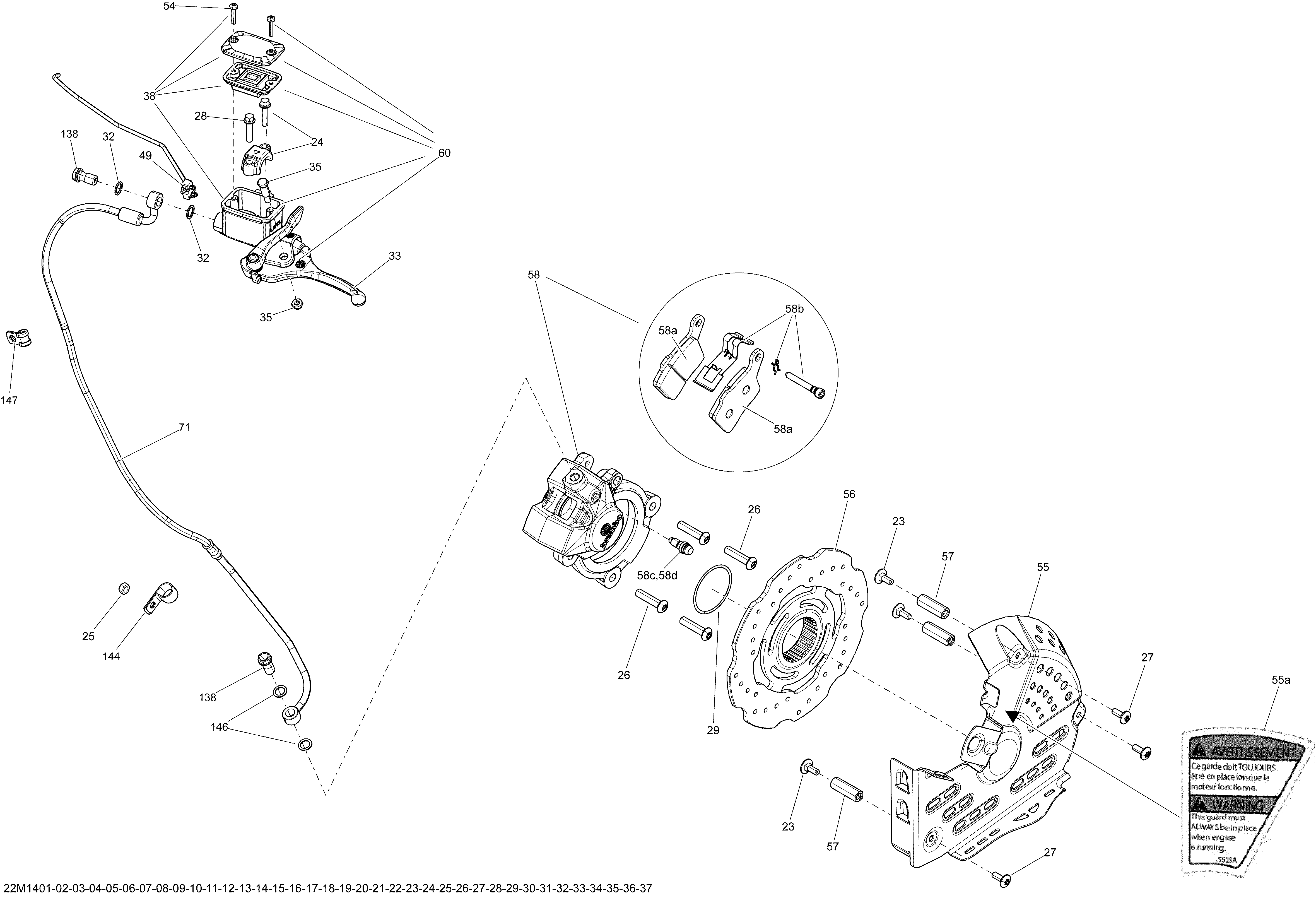

06- Hydraulic Brakes _22M1412 для BRP Ski-Doo MXZ SPORT 600 REV-XP - 2014
-
№АртикулНазвание
-
23207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
24507032477 Clamp And Screw Kit. XPClamp And Screw Kit. XP
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
27250000365 Torx Screw M6 X 16. SPORT, LTTorx Screw M6 X 16. SPORT, LT
-
28250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
29293300134 O-RingO-Ring
-
32705600310 Copper WasherCopper Washer
-
33507032476 Lever. XPLever. XP
-
35415030000 Pin Ass'y. XPPin Ass'y. XP
-
38507032478 Master Cylinder Reservoir Ass'y. XPMaster Cylinder Reservoir Ass'y. XP
-
49507032479 Microswitch. XPMicroswitch. XP
-
54415129356 Screw M4 X 20. XPScrew M4 X 20. XP
-
55507032446 Disk Protector, Aluminum. SPORT, LTDisk Protector, Aluminum. SPORT, LT
-
56507032487 DiskDisk
-
57507032497 Threaded TubeThreaded Tube
-
58507032498 Brake Caliper Ass'y. SPORT, TNT, ADRBrake Caliper Ass'y. SPORT, TNT, ADR
-
58a507032473 Brake Pads Kit. SPORT, TNT, ADRBrake Pads Kit. SPORT, TNT, ADR
-
58b507032474 Pin, Clip & Spring Kit. SPORT, TNT, ADRPin, Clip & Spring Kit. SPORT, TNT, ADR
-
58c507032475 Bleeder. SPORT, TNT, ADRBleeder. SPORT, TNT, ADR
-
58d414989700 Boot. SPORT, TNT, ADRBoot. SPORT, TNT, ADR
-
60507032518 Master Cylinder Ass'y. XPMaster Cylinder Ass'y. XP
-
71507032540 Hose. MX-ZHose. MX-Z
-
138507032539 Banjo BoltBanjo Bolt
-
144518321570 Open ClampOpen Clamp
-
146705600310 Copper WasherCopper Washer
-
147715900250 Hose ClipHose Clip
