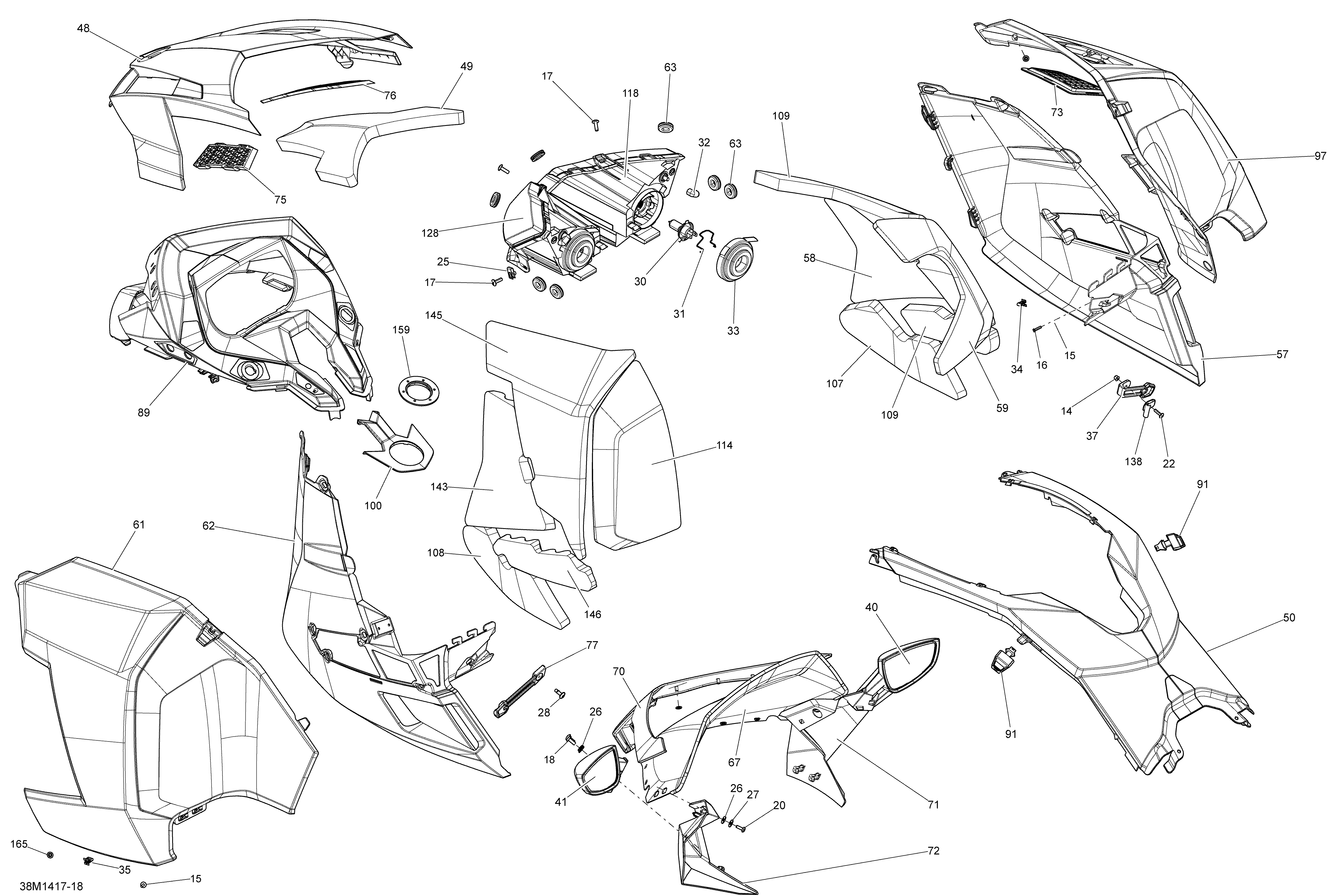

09- Hood, Windshield And Console для BRP Ski-Doo GSX SE 600HOE XR - 2014
-
№АртикулНазвание
-
14233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
15234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
16241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
17250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
18250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
19250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
22250000465 Torx Screw M5 X 20Torx Screw M5 X 20
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
27250200025 Washer M5Washer M5
-
28293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
30515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
32515176498 CapCap
-
33515176499 CoverCover
-
35517302785 ClipClip
-
37517303612 RH Panel LatchRH Panel Latch
-
40517305100 RH Mirror Ass'yRH Mirror Ass'y
-
41517305101 LH Mirror Ass'yLH Mirror Ass'y
-
48517303739 Black Hood. Model-Black-BlackBlack Hood. Model-Black-Black
-
48517305159 Magnesium Hood. Model-Magnesium-MagnesiumMagnesium Hood. Model-Magnesium-Magnesium
-
49517304893 Hood FoamHood Foam
-
50517303741 Black Console. Model-Black-BlackBlack Console. Model-Black-Black
-
50517305163 Magnesium Console Ass'y. Model-Magnesium-MagnesiumMagnesium Console Ass'y. Model-Magnesium-Magnesium
-
57517304373 Black RH Pannel MouldingBlack RH Pannel Moulding
-
58517304894 Central Foam Panel RHCentral Foam Panel RH
-
59517304895 Rear Panel Foam RHRear Panel Foam RH
-
61517303753 Black LH Pannel. Model-Black-BlackBlack LH Pannel. Model-Black-Black
-
61517305174 Magnesium LH Panel. Model-Magnesium-MagnesiumMagnesium LH Panel. Model-Magnesium-Magnesium
-
62517304362 Black LH Pannel MouldingBlack LH Pannel Moulding
-
63517303756 GrommetGrommet
-
67517303797 Hight Windshield (430)Hight Windshield (430)
-
70860200229 Medium Windshield SupportMedium Windshield Support
-
71517303799 RH Console Air DeflectorRH Console Air Deflector
-
72517303800 LH Console Air DeflectorLH Console Air Deflector
-
73517304909 Panel GrillPanel Grill
-
75517304242 LH Hood GrillLH Hood Grill
-
76517304243 RH Hood GrillRH Hood Grill
-
77517303808 LH Panel LatchLH Panel Latch
-
89517303996 Indicator SupportIndicator Support
-
91517305000 Panel LatchPanel Latch
-
97517304006 Black RH Pannel. Model-Black-BlackBlack RH Pannel. Model-Black-Black
-
97517305168 Magnesium RH Panel. Model-Magnesium-MagnesiumMagnesium RH Panel. Model-Magnesium-Magnesium
-
100517304027 Deep Black Cap ConsoleDeep Black Cap Console
-
107517304905 RH Lower Panel FoamRH Lower Panel Foam
-
108517304901 LH Lower Panel FoamLH Lower Panel Foam
-
109517304908 RH Upper Panel FoamRH Upper Panel Foam
-
114517304904 LH Rear Panel FoamLH Rear Panel Foam
-
118517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
128517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
138517304221 Latch SupportLatch Support
-
143517304899 LH Central Panel FoamLH Central Panel Foam
-
145517304902 LH Upper Panel FoamLH Upper Panel Foam
-
146517304897 Central Foam Panel LHCentral Foam Panel LH
-
159517304518 Console NutConsole Nut
-
165732610072 Push NutPush Nut
