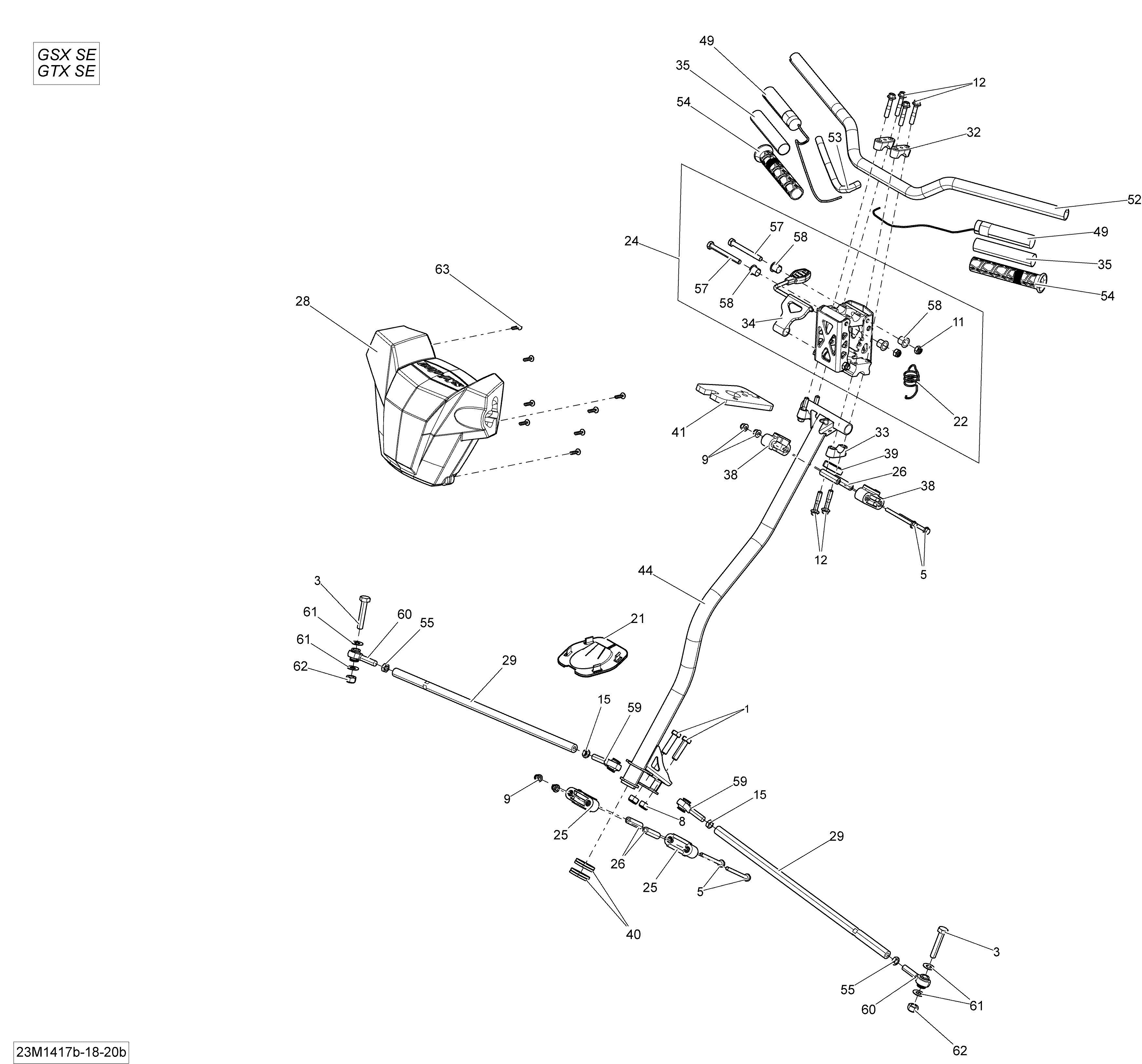

07- Steering SE для BRP Ski-Doo GSX SE 12004TEC XR - 2014
-
№АртикулНазвание
-
1207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
3207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
5207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
8232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
15250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
21506152163 PlatePlate
-
22506152184 SpringSpring
-
24506152197 Adjustable HandlebarAdjustable Handlebar
-
25506152217 Lower Half-HousingLower Half-Housing
-
26506152297 Housing BushingHousing Bushing
-
28506152601 Steering Pad (Adjustable)Steering Pad (Adjustable)
-
29506152496 Tie-RodTie-Rod
-
32506152395 Steering SupportSteering Support
-
33506152395 Steering SupportSteering Support
-
34506152411 Handle Ass'yHandle Ass'y
-
35506152423 InsulantInsulant
-
38506152508 Upper Half-HousingUpper Half-Housing
-
39506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
40506152518 Lower Vibration RingLower Vibration Ring
-
41506152521 CushionCushion
-
44506152585 Main Tube (Painted)Main Tube (Painted)
-
49506152681 Heated FilmHeated Film
-
52506152711 Handle Bar (Painted)Handle Bar (Painted)
-
53515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
54506152501 GripGrip
-
55732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
57207088544 Hex. Screw M8 X 85Hex. Screw M8 X 85
-
58506152520 CushionCushion
-
59506152081 LH Thread Ball JointLH Thread Ball Joint
-
60506152019 RH Thread Ball JointRH Thread Ball Joint
-
61506152582 WasherWasher
-
62233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
63250000400 Torx Screw K50 X 20Torx Screw K50 X 20
