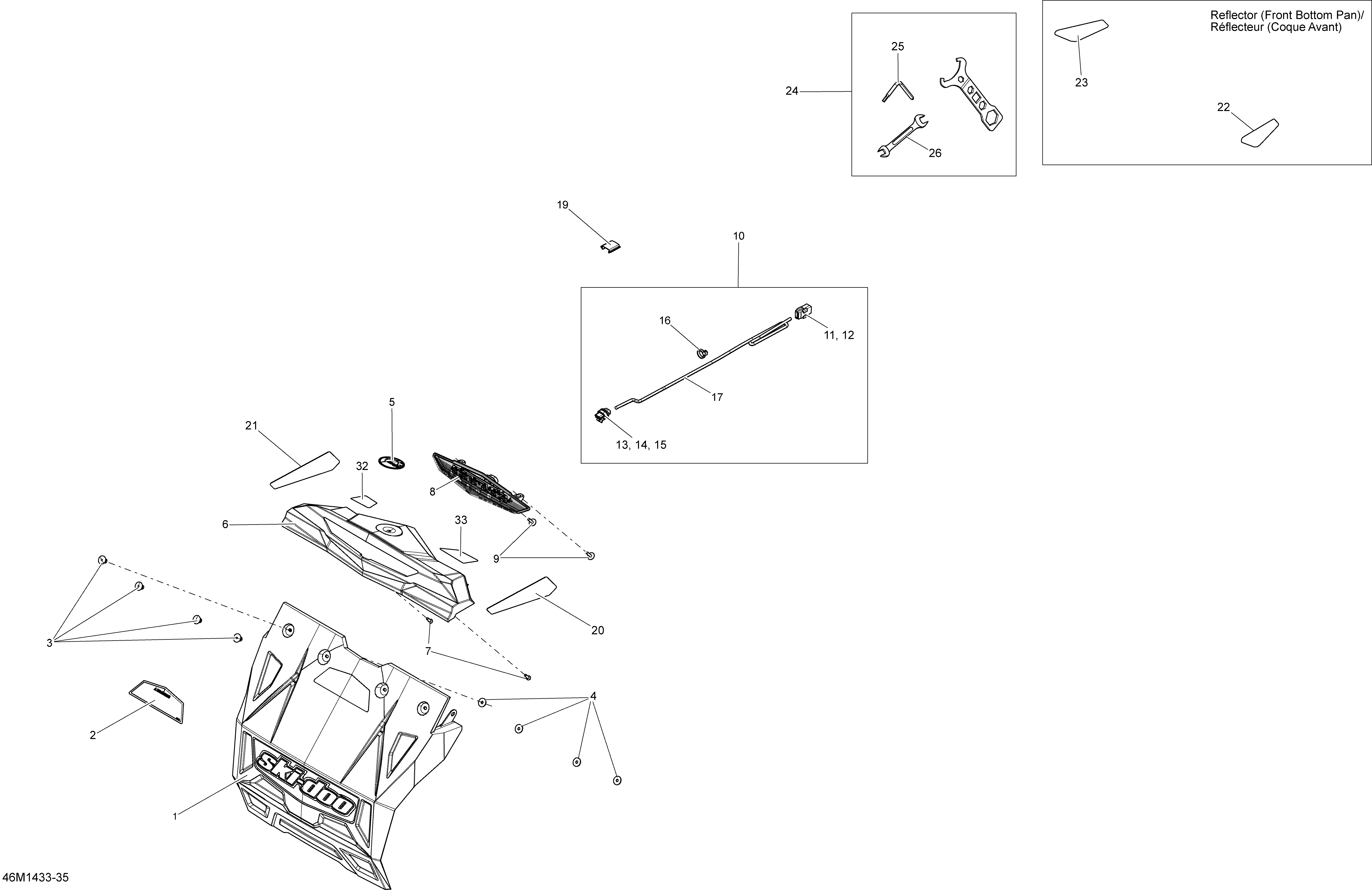

09- Utilities для BRP Ski-Doo GSX LE 900ACE XS - 2014

  • №
    Артикул
    Название
  • 1
    520001318 Snow Guard
    Snow Guard
  • 2
    516005175 Warning Decal, Track
    Warning Decal, Track
  • 3
    293150108 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 4
    517124300 Washer
    Washer
  • 5
    219903947 BRP Logo, 48 mm
    BRP Logo, 48 mm
  • 6
    511000810 Light Fairing
    Light Fairing
  • 7
    241141340 Hex. Screw K40 X 13
    Hex. Screw K40 X 13
  • 8
    520001143 Rear Light
    Rear Light
  • 9
    250000113 Screw M4 X 16, Type K-40
    Screw M4 X 16, Type K-40
  • 10
    515177275 Wiring Harness Ass'y. Includes 10 to 17
    Wiring Harness Ass'y. Includes 10 to 17
  • 11
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 12
    515175232 Male Terminal
    Male Terminal
  • 13
    278002387 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 14
    710001153 Seal Wire
    Seal Wire
  • 15
    710000925 Terminal
    Terminal
  • 16
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 17
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
  • 19
    520000829 Radiator Trim
    Radiator Trim
  • 20
    520001239 RH Rear Reflector. North America
    RH Rear Reflector. North America
  • 21
    520001238 LH Rear Reflector. North America
    LH Rear Reflector. North America
  • 22
    520001237 RH Front Reflector
    RH Front Reflector
  • 23
    520001236 LH Front Reflector. Includes 24 to 26
    LH Front Reflector. Includes 24 to 26
  • 24
    520001290 Tools Kit
    Tools Kit
  • 25
    520001142 Spacing Tool
    Spacing Tool
  • 26
    529000002 Fork Wrench, 10/13 mm
    Fork Wrench, 10/13 mm
  • 32
    516005057 Warning Decal, Safety
    Warning Decal, Safety
  • 33
    516005058 Warning Decal, Safety
    Warning Decal, Safety
