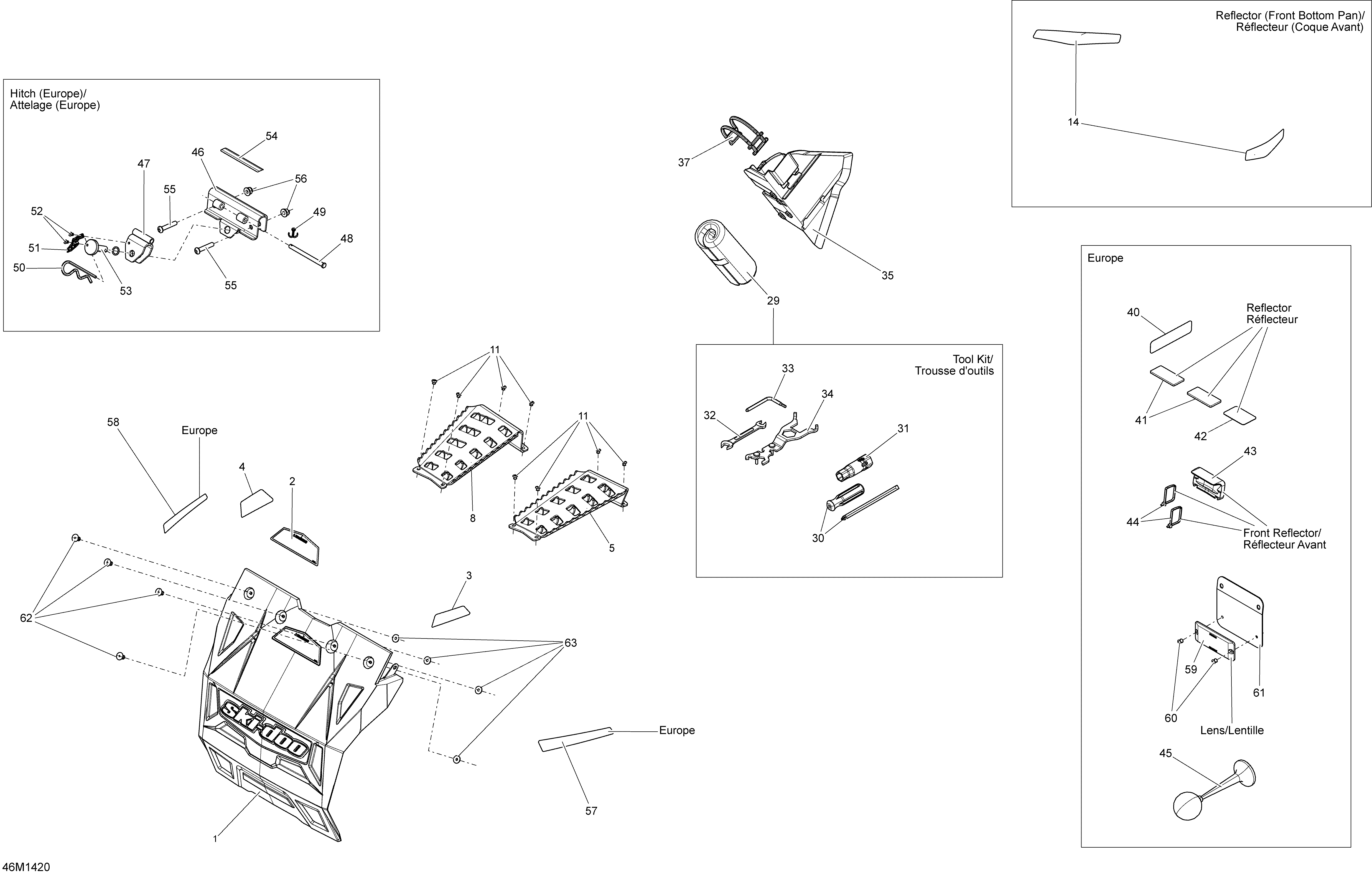

09- Utilities SE для BRP Ski-Doo GRAND TOURING SE 12004TEC XR - 2014
-
№АртикулНазвание
-
1520001342 Snow GuardSnow Guard
-
2516005175 Warning Decal, TrackWarning Decal, Track
-
3520000803 Yellow RH Rear Reflector. Model-EuropeYellow RH Rear Reflector. Model-Europe
-
4520000804 Yellow LH Rear Reflector. Model-EuropeYellow LH Rear Reflector. Model-Europe
-
5520000768 Mat Black RH Footrest. Model-Black-BlackMat Black RH Footrest. Model-Black-Black
-
5520001339 Hybride White RH Footrest. Model-White-WhiteHybride White RH Footrest. Model-White-White
-
8520000769 Mat Black LH Footrest. Model-Black-BlackMat Black LH Footrest. Model-Black-Black
-
8520001338 Hybride White LH Footrest. Model-White-WhiteHybride White LH Footrest. Model-White-White
-
11293150102 Rivet 3/16. Model-Black-BlackRivet 3/16. Model-Black-Black
-
11390402200 Pop Rivet 3/16''. Model-White-WhitePop Rivet 3/16''. Model-White-White
-
14520001234 Yellow Front Reflector XRYellow Front Reflector XR
-
29529000066 Tool KitTool Kit
-
30529000004 Screw DriverScrew Driver
-
31529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
32529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
33520001142 Spacing ToolSpacing Tool
-
34520000988 Wrench SuspensionWrench Suspension
-
35520000720 Tool Kit RackTool Kit Rack
-
37520000528 LatchLatch
-
40516005873 ''CE'' Decal. Model-Europe''CE'' Decal. Model-Europe
-
41520000271 Amber Reflector. Model-EuropeAmber Reflector. Model-Europe
-
42415037900 White Reflector. Model-EuropeWhite Reflector. Model-Europe
-
43520000871 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
44293750018 Tie Rap 371 mm. Model-EuropeTie Rap 371 mm. Model-Europe
-
45549011291 Horn. Model-EuropeHorn. Model-Europe
-
46511000554 Support. Model-EuropeSupport. Model-Europe
-
47511000588 Hitch Plate. Model-EuropeHitch Plate. Model-Europe
-
48511000520 Clevis Pin. Model-EuropeClevis Pin. Model-Europe
-
49371800200 Cotter Pin. Model-EuropeCotter Pin. Model-Europe
-
50114045200 Hair Pin. Model-EuropeHair Pin. Model-Europe
-
52390404300 Pop Rivet 5/32''. Model-EuropePop Rivet 5/32''. Model-Europe
-
53511000555 Pin. Model-EuropePin. Model-Europe
-
54516004568 Warning Decal, Security. Model-EuropeWarning Decal, Security. Model-Europe
-
55205484546 Socket Head Screw M8 X 45. Model-EuropeSocket Head Screw M8 X 45. Model-Europe
-
56233281414 Hex. Flanged Elastic Nut M8. Model-EuropeHex. Flanged Elastic Nut M8. Model-Europe
-
57520000831 Yellow RH Rear Reflector. Model-EuropeYellow RH Rear Reflector. Model-Europe
-
58520000832 Yellow LH Rear Reflector. Model-EuropeYellow LH Rear Reflector. Model-Europe
-
59510004350 Lens. Model-EuropeLens. Model-Europe
-
60390402000 Pop Rivet 3/16''. Model-EuropePop Rivet 3/16''. Model-Europe
-
61520000933 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
62293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
63517124300 WasherWasher
