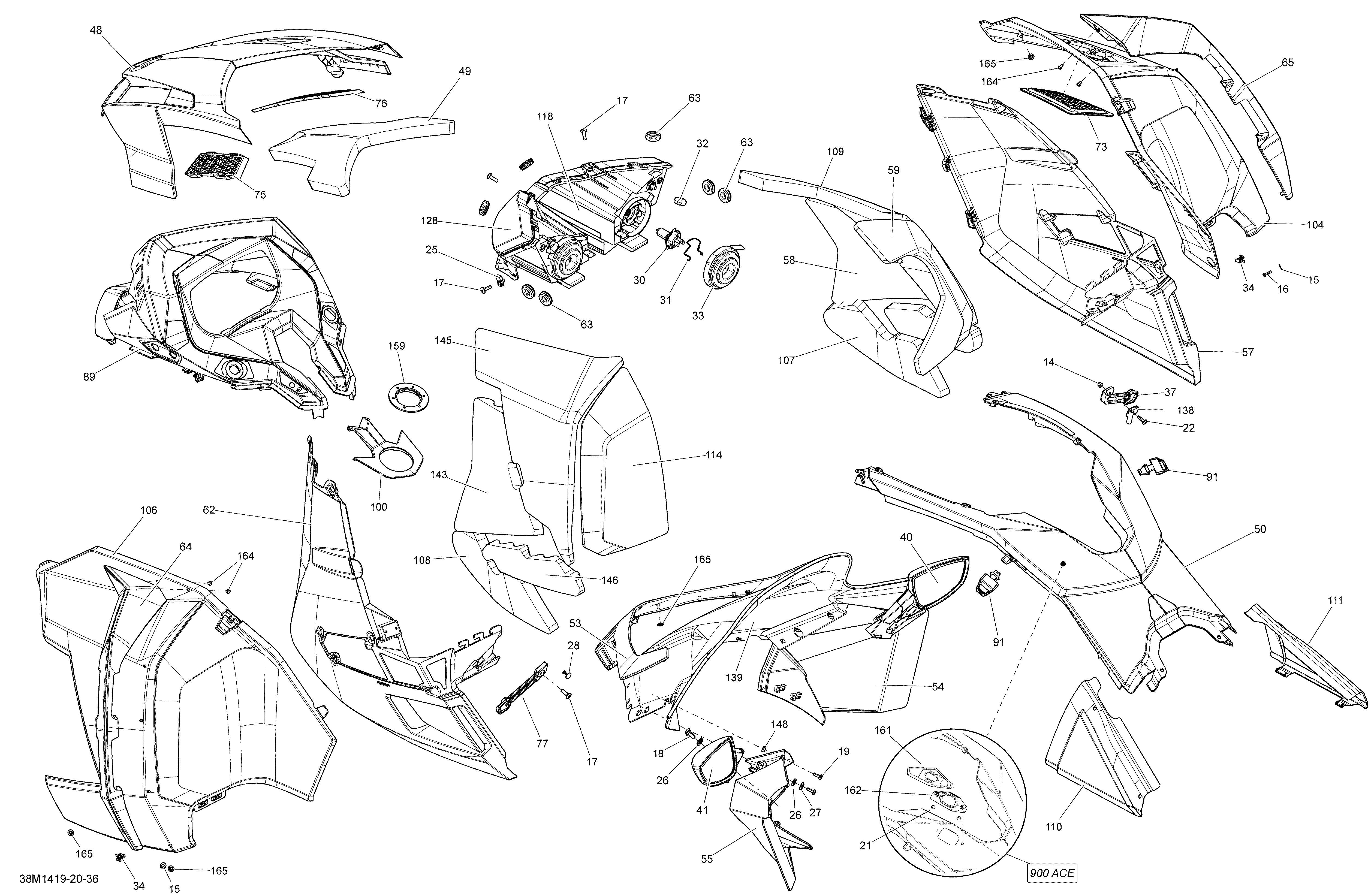

09- Hood, Windshield And Console для BRP Ski-Doo GRAND TOURING LE 600HOE XR - 2014

  • №
    Артикул
    Название
  • 14
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 15
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 16
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 17
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 18
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 19
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 22
    250000465 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 25
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 26
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 27
    250200025 Washer M5
    Washer M5
  • 30
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 32
    515176498 Cap
    Cap
  • 33
    515176499 Cover
    Cover
  • 34
    517302785 Clip
    Clip
  • 37
    517303612 RH Panel Latch
    RH Panel Latch
  • 40
    517305100 RH Mirror Ass'y
    RH Mirror Ass'y
  • 41
    517305101 LH Mirror Ass'y
    LH Mirror Ass'y
  • 48
    517303739 Black Hood
    Black Hood
  • 49
    517304893 Hood Foam
    Hood Foam
  • 50
    517303741 Black Console
    Black Console
  • 53
    860200230 Windshield Support Kit
    Windshield Support Kit
  • 54
    517303745 RH Console Air Deflector
    RH Console Air Deflector
  • 55
    517303746 LH Console Air Deflector
    LH Console Air Deflector
  • 57
    517304373 Black RH Pannel Moulding
    Black RH Pannel Moulding
  • 58
    517304894 Central Foam Panel RH
    Central Foam Panel RH
  • 59
    517304895 Rear Panel Foam RH
    Rear Panel Foam RH
  • 62
    517304362 Black LH Pannel Moulding
    Black LH Pannel Moulding
  • 63
    517303756 Grommet
    Grommet
  • 64
    517304196 Black LH Side Wind Deflector
    Black LH Side Wind Deflector
  • 65
    517304197 Black RH Side Wind Deflector
    Black RH Side Wind Deflector
  • 73
    517303801 Panel Grill
    Panel Grill
  • 75
    517303804 LH Hood Grill
    LH Hood Grill
  • 76
    517303805 RH Hood Grill
    RH Hood Grill
  • 77
    517303808 LH Panel Latch
    LH Panel Latch
  • 89
    517303971 Indicator Support
    Indicator Support
  • 91
    517305000 Panel Latch
    Panel Latch
  • 100
    517304027 Deep Black Cap Console
    Deep Black Cap Console
  • 104
    517304006 Black RH Pannel
    Black RH Pannel
  • 106
    517303753 Black LH Pannel
    Black LH Pannel
  • 107
    517304905 RH Lower Panel Foam
    RH Lower Panel Foam
  • 108
    517304901 LH Lower Panel Foam
    LH Lower Panel Foam
  • 109
    517304908 RH Upper Panel Foam
    RH Upper Panel Foam
  • 110
    517304123 Deep Black LH Fuel Tank Moulding
    Deep Black LH Fuel Tank Moulding
  • 111
    517304124 Deep Black RH Fuel Tank Moulding
    Deep Black RH Fuel Tank Moulding
  • 114
    517304904 LH Rear Panel Foam
    LH Rear Panel Foam
  • 118
    517304194 RH Headlamp Ass'y
    RH Headlamp Ass'y
  • 128
    517304195 LH Headlamp Ass'y
    LH Headlamp Ass'y
  • 138
    517304221 Latch Support
    Latch Support
  • 139
    517304268 Extra Hight Windshield (620)
    Extra Hight Windshield (620)
  • 143
    517304899 LH Central Panel Foam
    LH Central Panel Foam
  • 145
    517304902 LH Upper Panel Foam
    LH Upper Panel Foam
  • 146
    517304897 Central Foam Panel LH
    Central Foam Panel LH
  • 148
    517304281 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 159
    517304518 Console Nut
    Console Nut
  • 164
    732601210 Hex. Flanged Screw #8 X 3/8
    Hex. Flanged Screw #8 X 3/8
  • 165
    732610072 Push Nut
    Push Nut
