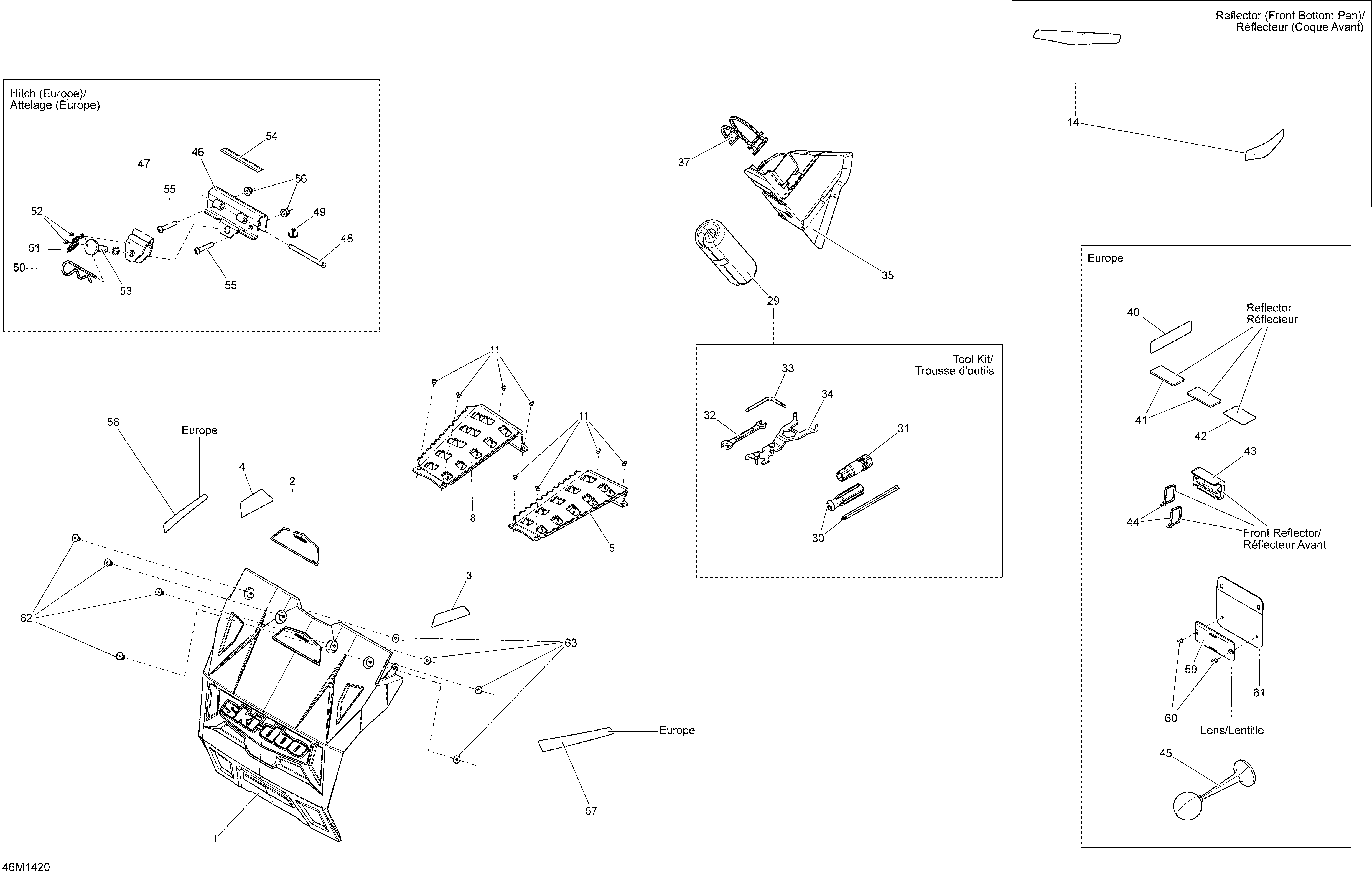

09- Utilities LE для BRP Ski-Doo GRAND TOURING LE 12004TEC XR - 2014
-
№АртикулНазвание
-
1520001342 Snow GuardSnow Guard
-
2516005175 Warning Decal, TrackWarning Decal, Track
-
5520000768 Mat Black RH FootrestMat Black RH Footrest
-
8520000769 Mat Black LH FootrestMat Black LH Footrest
-
11293150102 Rivet 3/16Rivet 3/16
-
14520001234 Yellow Front Reflector XRYellow Front Reflector XR
-
29529000066 Tool KitTool Kit
-
30529000004 Screw DriverScrew Driver
-
31529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
32529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
33520001142 Spacing ToolSpacing Tool
-
34520000988 Wrench SuspensionWrench Suspension
-
35520000720 Tool Kit RackTool Kit Rack
-
37520000528 LatchLatch
-
62293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
63517124300 WasherWasher
