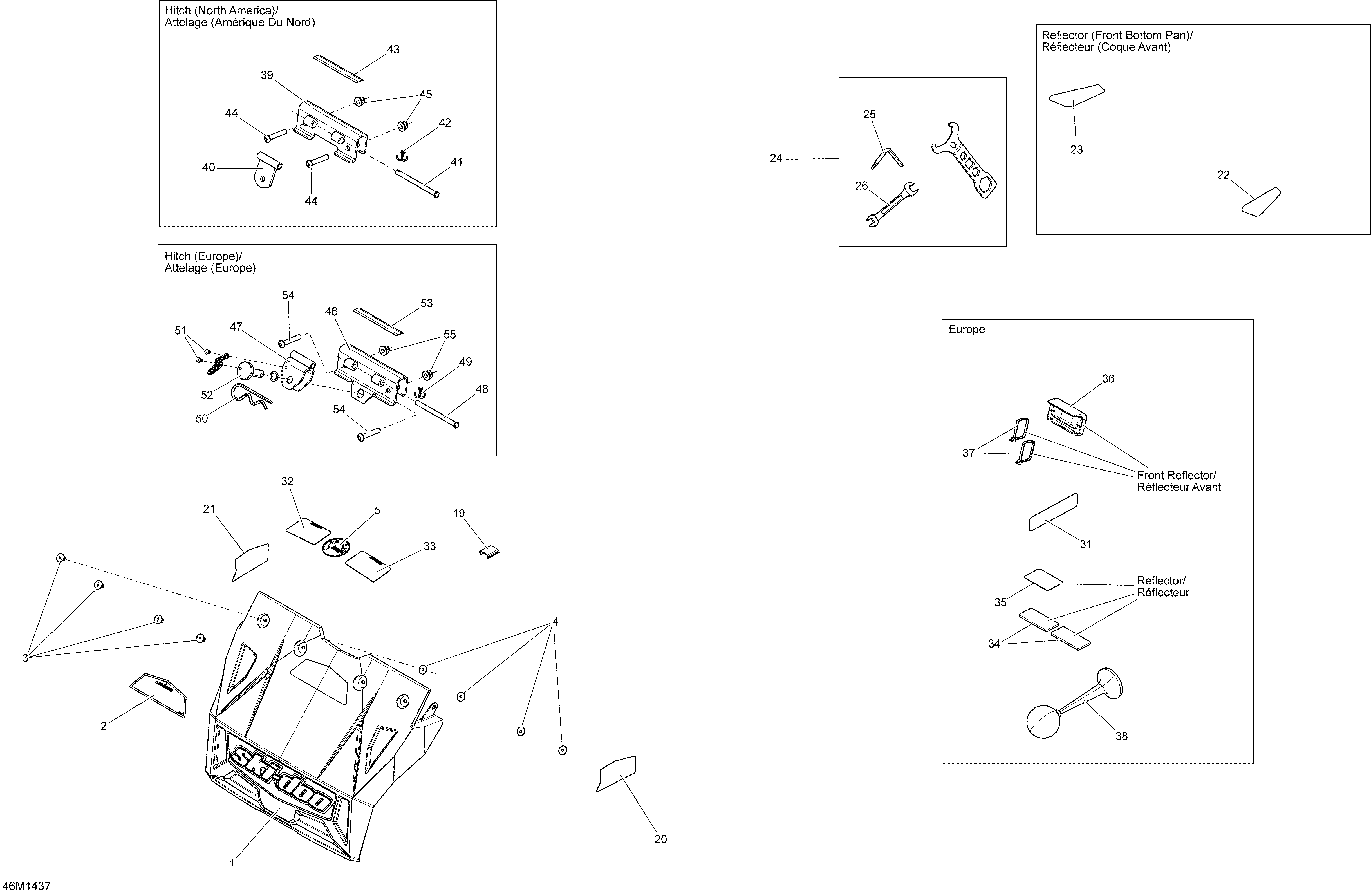

09- Utilities для BRP Ski-Doo EXPEDITION SPORT 900ACE XS - 2014
-
№АртикулНазвание
-
1520001340 Snow GuardSnow Guard
-
2516005175 Warning Decal, TrackWarning Decal, Track
-
3293150101 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
19520000829 Radiator TrimRadiator Trim
-
20520000881 Red RH Rear Reflector. Model-North AmericaRed RH Rear Reflector. Model-North America
-
20520000883 Yellow RH Rear Reflector. Model-EuropeYellow RH Rear Reflector. Model-Europe
-
21520000880 Red LH Rear Reflector. Model-North AmericaRed LH Rear Reflector. Model-North America
-
21520000882 Yellow LH Rear Reflector. Model-EuropeYellow LH Rear Reflector. Model-Europe
-
22520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
23520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
24520001290 Tools KitTools Kit
-
25520001142 Spacing ToolSpacing Tool
-
26529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
31516005873 ''CE'' Decal. Model-Europe''CE'' Decal. Model-Europe
-
32516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
33516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
34520000271 Amber Reflector. Model-EuropeAmber Reflector. Model-Europe
-
35415037900 White Reflector. Model-EuropeWhite Reflector. Model-Europe
-
36520000871 Reflector Support. Model-EuropeReflector Support. Model-Europe
-
37293750018 Tie Rap 371 mm. Model-EuropeTie Rap 371 mm. Model-Europe
-
38549011291 Horn. Model-EuropeHorn. Model-Europe
-
39511000768 Support. Model-North AmericaSupport. Model-North America
-
40511000521 Hitch Plate Welded. Model-North AmericaHitch Plate Welded. Model-North America
-
41511000520 Clevis Pin. Model-North AmericaClevis Pin. Model-North America
-
42371800200 Cotter Pin. Model-North AmericaCotter Pin. Model-North America
-
43516004568 Warning Decal, Security. Model-North AmericaWarning Decal, Security. Model-North America
-
44205484546 Socket Head Screw M8 X 45. Model-North AmericaSocket Head Screw M8 X 45. Model-North America
-
45233281466 Elastic Flang Nut M8. Model-North AmericaElastic Flang Nut M8. Model-North America
-
46511000554 Support. Model-EuropeSupport. Model-Europe
-
47511000588 Hitch Plate. Model-EuropeHitch Plate. Model-Europe
-
48511000520 Clevis Pin. Model-EuropeClevis Pin. Model-Europe
-
49371800200 Cotter Pin. Model-EuropeCotter Pin. Model-Europe
-
50114045200 Hair Pin. Model-EuropeHair Pin. Model-Europe
-
51390404300 Pop Rivet 5/32''. Model-EuropePop Rivet 5/32''. Model-Europe
-
52511000555 Pin. Model-EuropePin. Model-Europe
-
53516004568 Warning Decal, Security. Model-EuropeWarning Decal, Security. Model-Europe
-
54205484546 Socket Head Screw M8 X 45. Model-EuropeSocket Head Screw M8 X 45. Model-Europe
-
55233281414 Hex. Flanged Elastic Nut M8. Model-EuropeHex. Flanged Elastic Nut M8. Model-Europe
