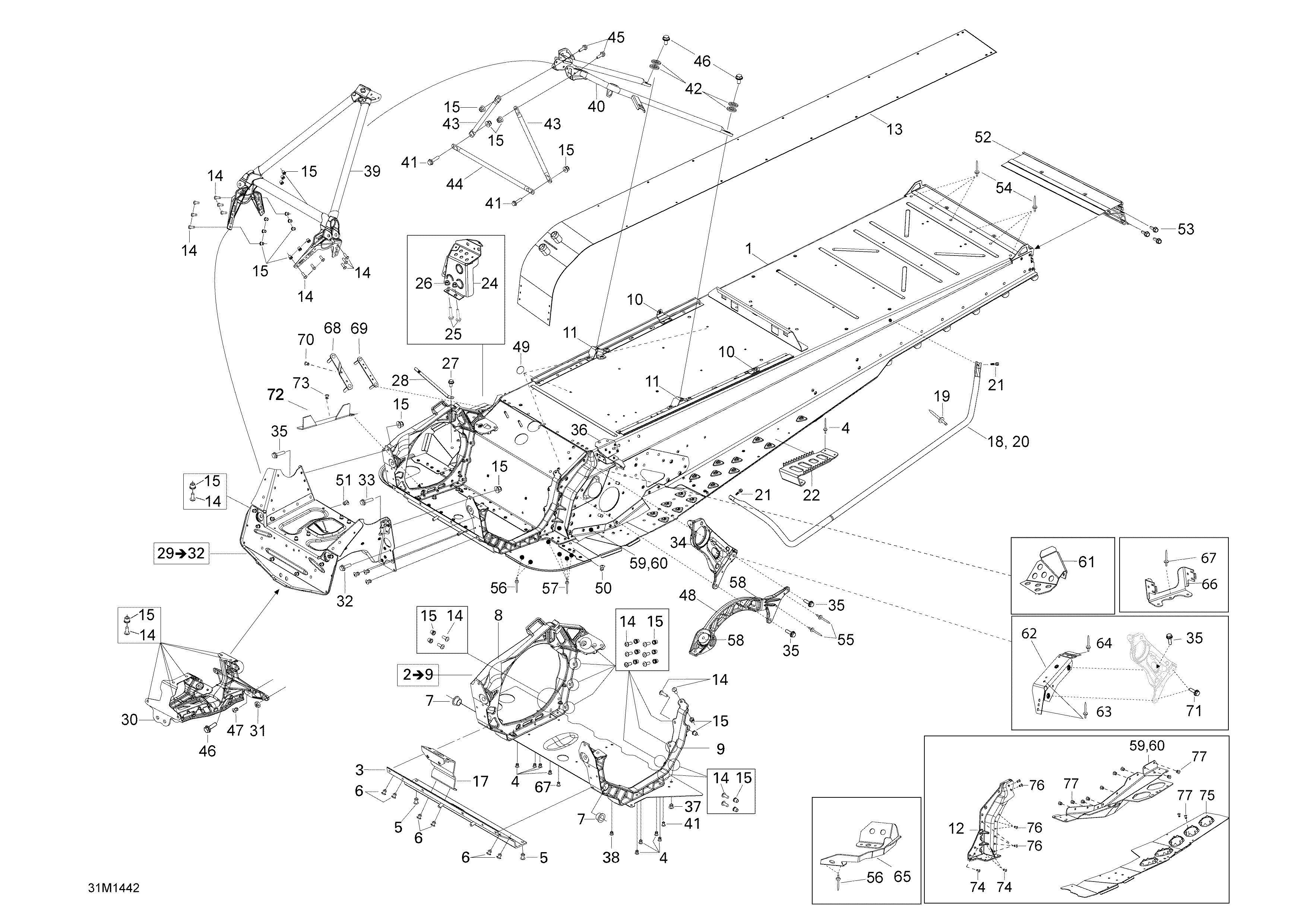

09- Frame And Components для BRP Ski-Doo EXPEDITION SE 1200 XU - 2014

  • №
    Артикул
    Название
  • 1
    518327675 Frame XU 4-TEC SC-5. Model-EUROPE
    Frame XU 4-TEC SC-5. Model-EUROPE
  • 1
    518327673 Frame XU 4-TEC SC-5, Black
    Frame XU 4-TEC SC-5, Black
  • 2
    518326720 E Module
    E Module
  • 3
    518326198 Front Member
    Front Member
  • 4
    390909100 Avex Rivet
    Avex Rivet
  • 5
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 6
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 7
    505072690 Leg Cushion
    Leg Cushion
  • 8
    518326328 RH Side Member
    RH Side Member
  • 9
    518326330 LH Side Member
    LH Side Member
  • 10
    518325987 Seat Box Bracket
    Seat Box Bracket
  • 11
    518326109 Support Tube Bracket LH
    Support Tube Bracket LH
  • 11
    518326110 Support Tube Bracket RH
    Support Tube Bracket RH
  • 12
    518325524 Frame Corner LH
    Frame Corner LH
  • 12
    518325526 Frame Corner RH
    Frame Corner RH
  • 13
    509000867 Radiator Tunnel
    Radiator Tunnel
  • 14
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 15
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 17
    518325371 MAG Engine Support
    MAG Engine Support
  • 18
    518326963 Footboard Support Tube, LH
    Footboard Support Tube, LH
  • 19
    390909100 Avex Rivet
    Avex Rivet
  • 20
    518326964 Footboard Support Tube, RH
    Footboard Support Tube, RH
  • 21
    207662086 Hex. Flanged Screw DIN.6921
    Hex. Flanged Screw DIN.6921
  • 22
    520000492 Footrest. Model-EUROPE
    Footrest. Model-EUROPE
  • 22
    520001208 Black Rear Footrest
    Black Rear Footrest
  • 24
    518326464 Toe Hook LH. Model-EUROPE
    Toe Hook LH. Model-EUROPE
  • 24
    518327375 Toe hold L.H.
    Toe hold L.H.
  • 24
    518326465 Toe Hook RH. Model-EUROPE
    Toe Hook RH. Model-EUROPE
  • 24
    518327376 Toe hold R.H.
    Toe hold R.H.
  • 25
    207662086 Hex. Flanged Screw DIN.6921
    Hex. Flanged Screw DIN.6921
  • 26
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 27
    390909200 Avex Rivet
    Avex Rivet
  • 28
    514054616 Spring Bracket
    Spring Bracket
  • 29
    518327546 ''S'' Module. Model-EUROPE
    ''S'' Module. Model-EUROPE
  • 29
    518327157 Module S drilled
    Module S drilled
  • 30
    518327475 Front Suspension Support
    Front Suspension Support
  • 31
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 32
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 33
    250000522 Hex Flanged Screw M6 x 25
    Hex Flanged Screw M6 x 25
  • 34
    518327644 Pulley Support
    Pulley Support
  • 35
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 36
    605355235 Fastening Bracket
    Fastening Bracket
  • 37
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 38
    293150144 Stavex Rivet
    Stavex Rivet
  • 39
    518326970 Front Member
    Front Member
  • 40
    518326103 Upper Support Tube Welded
    Upper Support Tube Welded
  • 41
    207662086 Hex. Flanged Screw DIN.6921
    Hex. Flanged Screw DIN.6921
  • 43
    518325114 Upper Column Support
    Upper Column Support
  • 44
    518326657 Center Column Support
    Center Column Support
  • 45
    250000522 Hex Flanged Screw M6 x 25
    Hex Flanged Screw M6 x 25
  • 46
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 47
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 48
    518327392 Brace Ass'y
    Brace Ass'y
  • 49
    518325560 Adhesive Patch
    Adhesive Patch
  • 50
    414644300 Dart
    Dart
  • 51
    293730042 Full Moon Dart 5 mm
    Full Moon Dart 5 mm
  • 52
    518327194 Rear Profile
    Rear Profile
  • 53
    250000376 Hex Forming Screw DIN.7500D
    Hex Forming Screw DIN.7500D
  • 54
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 55
    36087 Rivet
    Rivet
  • 56
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 57
    390909200 Avex Rivet
    Avex Rivet
  • 58
    512060295 Rubber Mount
    Rubber Mount
  • 61
    518325626 Brake Hose Cover
    Brake Hose Cover
  • 62
    518326430 Clinch nut plate
    Clinch nut plate
  • 63
    390909100 Avex Rivet
    Avex Rivet
  • 65
    518326566 Pulley Cover Plate
    Pulley Cover Plate
  • 66
    515177073 Fusebox Support
    Fusebox Support
  • 67
    390909200 Avex Rivet
    Avex Rivet
  • 68
    518326123 Gearbox Front Plate
    Gearbox Front Plate
  • 69
    518326124 Gearbox Rear Plate
    Gearbox Rear Plate
  • 70
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 71
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip
    Hex. Flanged Screw M8 X 35, Scotch Grip
  • 72
    518327448 Muffler Support Plate
    Muffler Support Plate
  • 73
    293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT
    Rivet Hucklok 4,8 mm HKLP-R6-5GAT
  • 74
    293150183 Rivet
    Rivet
  • 75
    518326895 Footrest LH
    Footrest LH
  • 75
    518326896 Footrest RH
    Footrest RH
  • 76
    390909100 Avex Rivet
    Avex Rivet
  • 77
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
