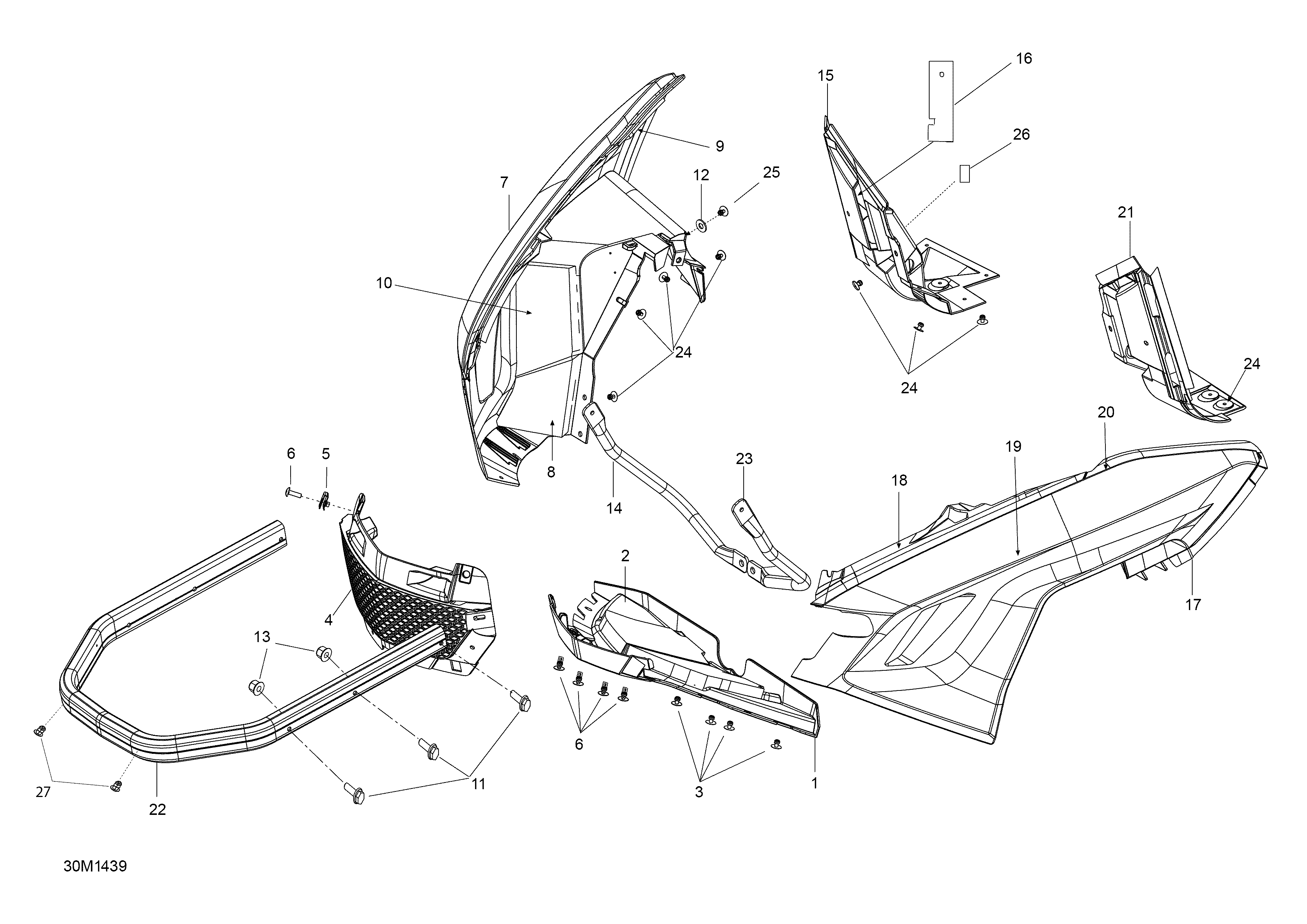

09- Bottom Pan для BRP Ski-Doo EXPEDITION LE 600HOE, XU - 2014

  • №
    Артикул
    Название
  • 1
    502007184 Black Bottom Pan Front
    Black Bottom Pan Front
  • 2
    502007002 Insulator
    Insulator
  • 3
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 4
    502007145 Grill
    Grill
  • 5
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 6
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 7
    502007188 Black Bottom Pan Ass'y RH
    Black Bottom Pan Ass'y RH
  • 8
    502007006 Insulator
    Insulator
  • 9
    502007008 Insulator
    Insulator
  • 10
    502007009 Insulator
    Insulator
  • 11
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 12
    234052490 Washer M5
    Washer M5
  • 13
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 14
    502007015 RH Bumper Support
    RH Bumper Support
  • 15
    502007191 Black Bottom Pan Rear Ass'y RH
    Black Bottom Pan Rear Ass'y RH
  • 16
    502007038 Aluminium Foil
    Aluminium Foil
  • 17
    502007196 Black Bottom Pan Ass'y LH
    Black Bottom Pan Ass'y LH
  • 18
    502007003 Insulator
    Insulator
  • 19
    502007185 Insulator
    Insulator
  • 21
    502007195 Black Bottom Pan Rear Ass'y LH
    Black Bottom Pan Rear Ass'y LH
  • 22
    502007170 Clear Bumper
    Clear Bumper
  • 23
    502007014 LH Bumper Support
    LH Bumper Support
  • 24
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 25
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 26
    M44110 Reflective Sheet
    Reflective Sheet
  • 27
    293730041 Full Moon Dart 8 mm
    Full Moon Dart 8 mm
